| Quantity: | |
|---|---|

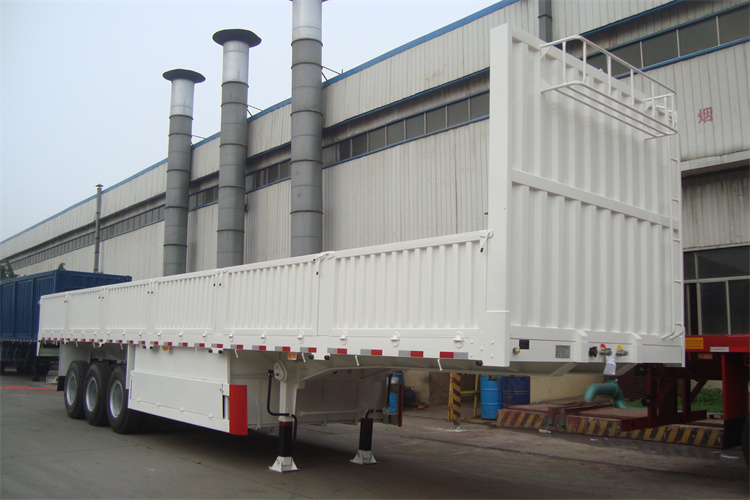

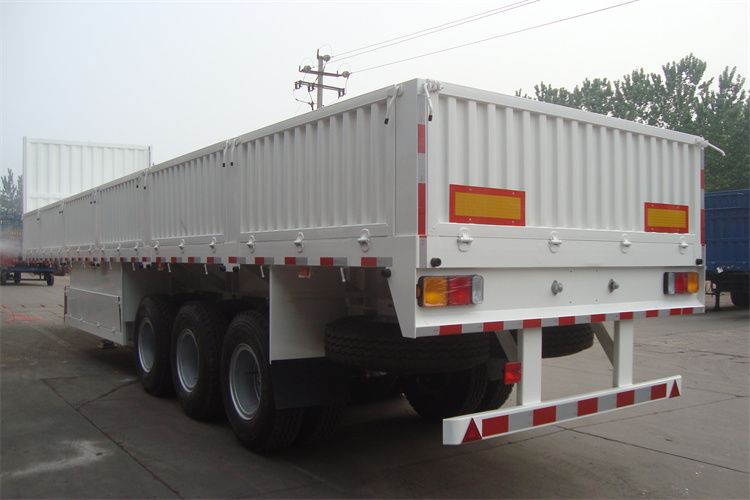

50T straight beam semi trailer with side walls, after special Electrophoretic painting treatment, it has a stronger corrosion resistance and extend its service life. Trailer with side walls adopts to foreign and domestic design concepts, use W-shape though-going beam, reduce whole mass greatly by using FEA under the precondition of ensuring structural strength. For customers, this trailer is a better choice.
50T straight beam semi trailer with side walls has various features such as light tare weight, heavy loading weight and rational structure. It shows unique operating advantage better, and is unique in reducing tire wearing aspect while reduce oil consumption.
Semi trailer with side walls adopts high strength steel, material of web plate and key position uses high strength low alloy steel with domestic advanced technical standard, it keeps same capacity while reducing tare weight.
The maximum payload of 50T straight beam semi trailer with side walls is 60T, considering safety, don’t be overweight.
Integrate industrial wisdom, and promote brand development. Vehicle master regards scientific innovation and technical research as development resource. 50T straight beam semi trailer with side walls uses international and domestic leading technology, is engaged in innovation and application of new material, new technology and new technique, and realizes product update.
| Tare weight(kg) | 7300 |
| Loading capacity | 50T |
| Axle weight load | 13T(16T optional) |
| Axle brand | FUWA or BPW |
| Suspention | Common mechanical |
| King pin | 2" or 3.5" traction pin |
| Dimensions(L*W*Hmm): | 1300*2500*1550 |
| Wheel Rim: | 9.0-22.5 steel wheel rim |
| Leaf spring: | 10 pieces per axle |
| Sidewall: | 1.5mm steel plate 600mm height |
| Landing gear: | 28T manual operating, heavy duty landing gear |
| Accessories: | 1 set standard tool box |
| Light： | Tail lamp with turn signal, brake light&reflector, side lamp etc |
| Painting: | 1 coat of anticorrosive prime, twice coats of final paint |
| Trie specification: | 12R22.5 |
| Numeber of trie: | 12 pieces |
| Spare tire carrier: | 2 pieces |
| Main beam: | Q345 steel ,the height of the beam is 500mm; upper plate is 14mm; down plate is 16mm; middle plate is 8mm |
| Cross beam: | 10#channel steel |
| Side beam: | 16#channel steel |
| Brake chamber: | 6 big chamber |
| Brake system: | Dual line brake system |
Vehicle Master factory is located in Liangshan County, Jining City. Liangshan is the largest trailer industry cluster in China. It is named "China Trailer (Special Purpose Vehicle) production base" by China Automobile Industry Association. As a local high-quality Trailer enterprise, vehicle master participates in the exhibition every year. We welcome partners from all over the world to visit our factory and come to the exhibition to learn more about types of trucks.
If you want to get a quotation for 50T straight beam semi trailer with side walls, please let us know more information such as the purpose, road condition, cargo type, tonnage of your cargo, dimensions of trailer, and quantity, etc.
50T straight beam semi trailer with side walls, after special Electrophoretic painting treatment, it has a stronger corrosion resistance and extend its service life. Trailer with side walls adopts to foreign and domestic design concepts, use W-shape though-going beam, reduce whole mass greatly by using FEA under the precondition of ensuring structural strength. For customers, this trailer is a better choice.
50T straight beam semi trailer with side walls has various features such as light tare weight, heavy loading weight and rational structure. It shows unique operating advantage better, and is unique in reducing tire wearing aspect while reduce oil consumption.
Semi trailer with side walls adopts high strength steel, material of web plate and key position uses high strength low alloy steel with domestic advanced technical standard, it keeps same capacity while reducing tare weight.
The maximum payload of 50T straight beam semi trailer with side walls is 60T, considering safety, don’t be overweight.
Integrate industrial wisdom, and promote brand development. Vehicle master regards scientific innovation and technical research as development resource. 50T straight beam semi trailer with side walls uses international and domestic leading technology, is engaged in innovation and application of new material, new technology and new technique, and realizes product update.
| Tare weight(kg) | 7300 |
| Loading capacity | 50T |
| Axle weight load | 13T(16T optional) |
| Axle brand | FUWA or BPW |
| Suspention | Common mechanical |
| King pin | 2" or 3.5" traction pin |
| Dimensions(L*W*Hmm): | 1300*2500*1550 |
| Wheel Rim: | 9.0-22.5 steel wheel rim |
| Leaf spring: | 10 pieces per axle |
| Sidewall: | 1.5mm steel plate 600mm height |
| Landing gear: | 28T manual operating, heavy duty landing gear |
| Accessories: | 1 set standard tool box |
| Light： | Tail lamp with turn signal, brake light&reflector, side lamp etc |
| Painting: | 1 coat of anticorrosive prime, twice coats of final paint |
| Trie specification: | 12R22.5 |
| Numeber of trie: | 12 pieces |
| Spare tire carrier: | 2 pieces |
| Main beam: | Q345 steel ,the height of the beam is 500mm; upper plate is 14mm; down plate is 16mm; middle plate is 8mm |
| Cross beam: | 10#channel steel |
| Side beam: | 16#channel steel |
| Brake chamber: | 6 big chamber |
| Brake system: | Dual line brake system |
Vehicle Master factory is located in Liangshan County, Jining City. Liangshan is the largest trailer industry cluster in China. It is named "China Trailer (Special Purpose Vehicle) production base" by China Automobile Industry Association. As a local high-quality Trailer enterprise, vehicle master participates in the exhibition every year. We welcome partners from all over the world to visit our factory and come to the exhibition to learn more about types of trucks.
If you want to get a quotation for 50T straight beam semi trailer with side walls, please let us know more information such as the purpose, road condition, cargo type, tonnage of your cargo, dimensions of trailer, and quantity, etc.
