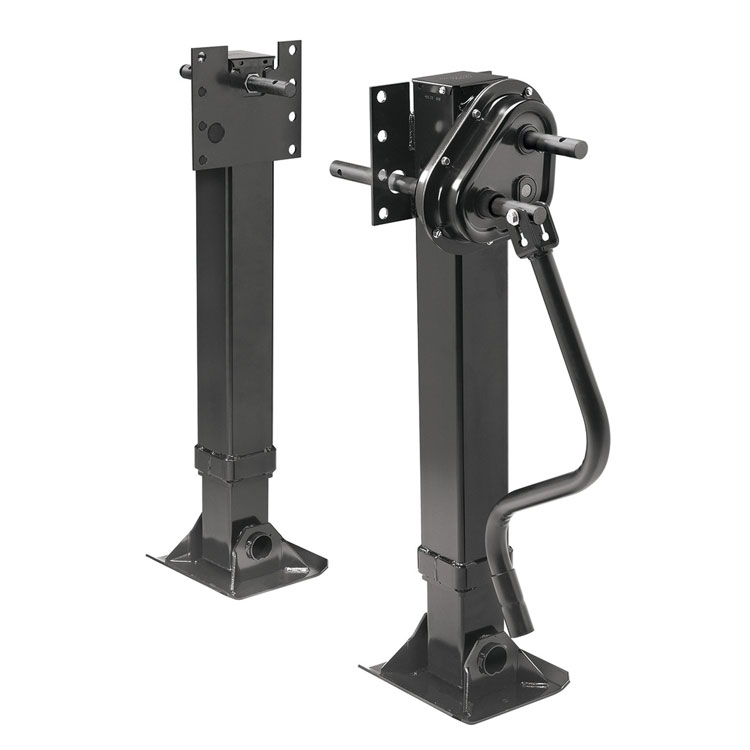

Vehicle Master Semi Trailer Landing Gear Feature and Benefit Overview
Semi trailer landing gear, mounting pallet is reinforced, much more durable. Meets TTMA AAR and German Safety regulations for commercial vehicles.
Vehicle Master semi trailer landing gear, double Speed designed for better efficiency. Multi-Type shoes available for different usage.
Vehicle Master semi trailer landing gear, maintenance-free feature lubricant packed jack screw. Working Stable under -30°C to 120°C.
Mechanical running gears from Vehicle Master are designed to allow assembly and maintenance with simple tools. Drivers and users can carry out self-maintenance and repair of the suspension anytime, anywhere.
Vehicle Master Semi Trailer Landing Gear Feature and Benefit
Semi trailer landing gear, gearbox with low temperature premlum chassis lube rated for service from -30°C to +120°C.
Maintenance-Free feature with grease lubricant packed jack screw.
Semi trailer landing gear,“double-Speed” design for better efficiency.
Wider backing mounting plate for greater load bearing capacity and extended life.
Semi trailer landing gear, multi-Type shoes available for different usage.
Meets TTMA AAR and German Safety regulations for commercial vehicles.
Vehicle Master Semi Trailer Landing Gear Specification Details
OEM Service:Available
Customized Service:Available
Vehicle Master Semi Trailer Landing Gear VM28 Series
Capacity:28,000Kg/Pair
Static: 80,000Kg/Pair
Weight: 90Kg
Low Gear: 0.71mm Per Turn(mm/r) of Handle
High Gear: 5.40mm Per Turn(mm/r) of Handle
One Side Operation Force: 28t-35.5Kg
Two Side Operation Force: 28t-17Kg
One Side Operation Landing Gear
| MODEL | PART NO | D (mm) | A (mm) |
| VM280001A | A | 430 | 814 |
| VM280001G | G | 430 | 770 |
| VM280001R | R | 430 | 797 |
| VM280001S | S | 430 | 822 |
| VM280001T | T | 430 | 794 |
| VM280002A | A | 480 | 864 |
| VM280002G | G | 480 | 820 |
| VM280002R | R | 480 | 847 |
| VM280002S | S | 480 | 872 |
| VM280002T | T | 480 | 844 |
Two Side Operation Landing Gear
| MODEL | PART NO | D (mm) | A (mm) |
| VM280011A | A | 430 | 814 |
| VM280011G | G | 430 | 770 |
| VM280011R | R | 430 | 797 |
| VM280011S | S | 430 | 822 |
| VM280011T | T | 430 | 794 |
| VM280022A | A | 480 | 864 |
| VM280022G | G | 480 | 820 |
| VM280022R | R | 480 | 847 |
| VM280022S | S | 480 | 872 |
| VM280022T | T | 480 | 844 |
Above Spec. are VEHICLE MASTER Standard Spec.If customer want to change Spec.Please Let us know.
Vehicle Master Semi Trailer Landing Gear VM27 Series
Capacity:28,000Kg/Pair
Static:80,000Kg/Pair
Weight:98Kg
Low Gear:1mm Per Turn(mm/r) of Handle
High Gear:11mm Per Turn(mm/r) of Handle
One Side Operation Force:28t-35.5Kg
Two Side Operation Force:28t-18Kg
| MODEL | PART NO | D (mm) | A (mm) |
| VM270001A | A | 430 | 814 |
| VM270001G | G | 430 | 770 |
| VM270001R | R | 430 | 797 |
| VM270001S | S | 430 | 822 |
| VM270001T | T | 430 | 794 |
| VM270002A | A | 480 | 864 |
| VM270002G | G | 480 | 820 |
| VM270002R | R | 480 | 847 |
| VM270002S | S | 480 | 872 |
| VM270002T | T | 480 | 844 |
Above Spec. are VEHICLE MASTER Standard Spec.If customer want to change Spec.Please Let us know.
Vehicle Master Semi Trailer Landing Gear VM26 Series
Capacity:28,000Kg/Pair
Static:80,000Kg/Pair
Weight:102Kg
Low Gear:0.9mm Per Turn(mm/r) of Handle
High Gear:9mm Per Turn(mm/r) of Handle
| MODEL | PART NO | D (mm) | A (mm) |
| VM260001A | A | 430 | 923 |
| VM260001G | G | 430 | 779 |
| VM260001R | R | 430 | 806 |
| VM260001S | S | 430 | 829 |
| VM260001T | T | 430 | 803 |
| VM260002A | A | 480 | 873 |
| VM260002G | G | 480 | 829 |
| VM260002R | R | 480 | 856 |
| VM260002S | S | 480 | 879 |
| VM260002T | T | 480 | 853 |
