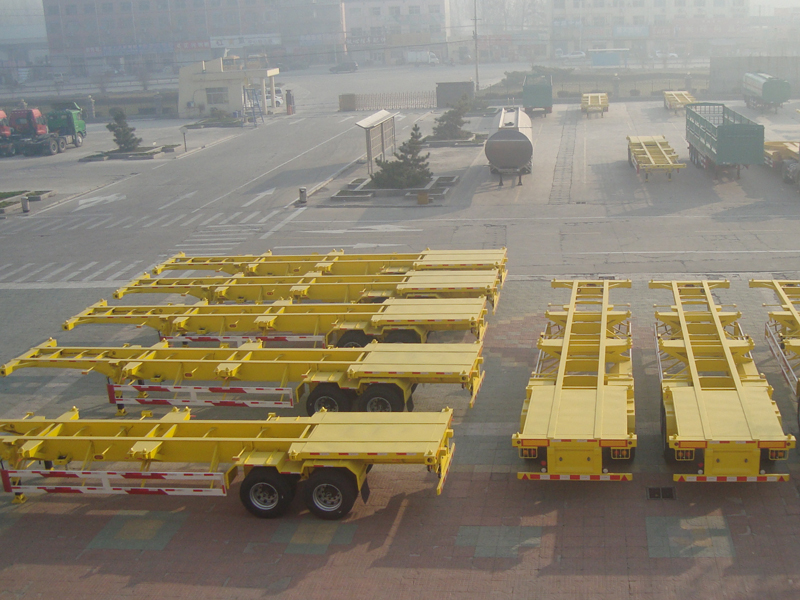

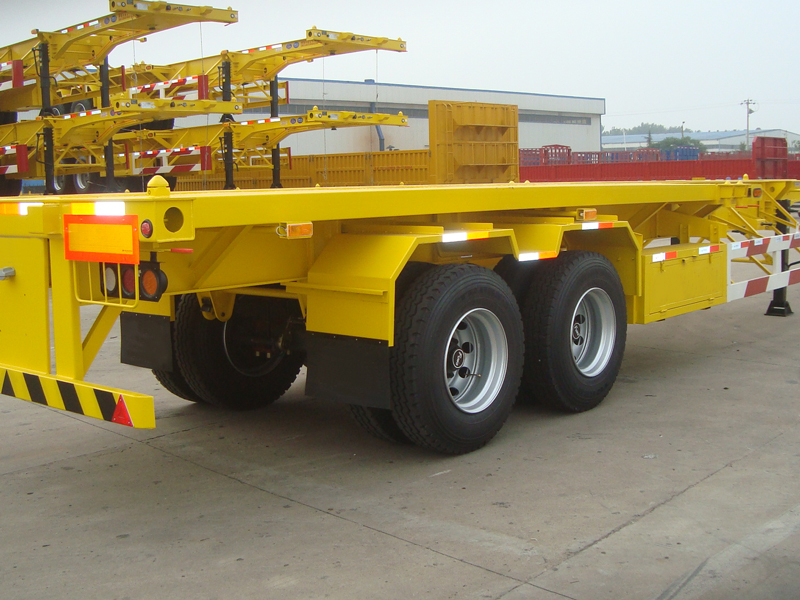

2 Axle 40ft Skeleton Trailer for Sale
This 2 axle 40ft skeleton trailer is manufactured by Vehicle Master, using high-quality steel and advanced welding technology. It offers excellent load-bearing performance and durability, capable of flexibly carrying two 20ft or one 40ft container. It is widely used in port transfer, logistics distribution, and construction material transportation.
As a semi-trailer factory, our skeleton trailers support customized production — the length can be adjusted to 20/40/45 feet, with 2/3/4 axles, different suspension systems, twist locks, and column rails, to meet the transportation needs of containers, steel, and other cargo in various operation scenarios.
Application
Container Transportation: Enables stable loading and fast unloading of standard containers.
Modular Construction: Carries prefabricated building modules, suitable for prefabricated construction sites.
Steel and Building Materials: Safely transports heavy, long-shaped materials such as steel plates and beams.
Large Equipment: Securely transfers oversized cargo such as construction machinery and generator sets.
Specifications
Adapted Length: 40ft (customizable 20–45 feet)
Loading Capacity: 20–50 Tons
Axles: 2 axles (upgradeable to 3/4 axles), 13/16T per axle, FUWA/BPW
Dimension: 12400mm * 2480mm * 1580mm
Main Beam Material: Q345 / T700
Twist Locks: 4–12 sets
Suspension System: Mechanical / Air Suspension
Tires: 12R22.5 * 8 pieces (4 tires per axle)
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Tons Two-Speed, JOST / Other Brand
Painting: Electrophoresis Painting
Price Range
The price of this skeleton trailer ranges from USD 6,000 to 15,000. The specific price depends on axle configuration, trailer length, suspension type, tire brand and specifications, production craftsmanship, and the degree of customization. Higher material grades and more complex manufacturing processes will increase the cost accordingly.
If you would like to get a quotation for this 2 Axle 40ft Skeleton Trailer, or if you have customization needs, please contact us via our website message or WhatsApp (+86-18866100060).

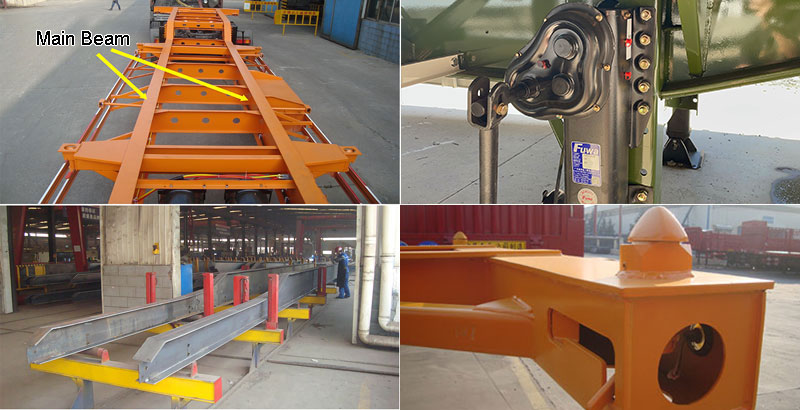

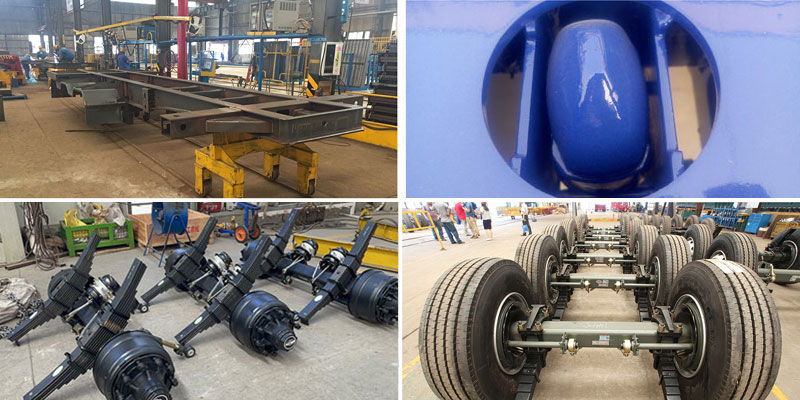

Core Manufacturing Process
Welding: Equipped with automatic welding machines, the main beam, connection plates, suspension brackets, and twist lock bases are fully welded to ensure uniform welds and high strength. This greatly enhances the overall structure’s load capacity and fatigue resistance. After welding, ultrasonic flaw detection is performed to eliminate internal defects, improving torsional resistance and extending service life.
Electrophoresis Painting: The trailer body undergoes degreasing, phosphating, and passivation pretreatments to ensure optimal metal surface condition. It is then coated with a uniform anti-rust base layer through the electrophoresis process, effectively isolating moisture and oxygen to prevent corrosion. Finally, high-adhesion and wear-resistant powder coatings are applied, ensuring long-lasting surface protection and excellent corrosion resistance.

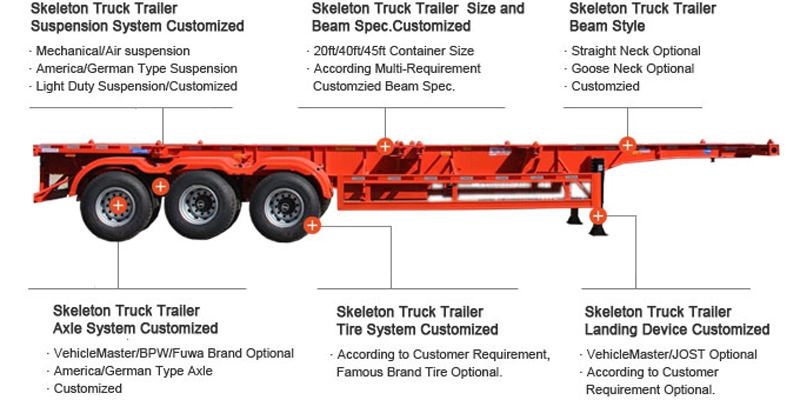

Main Features
Length customization: 20/40/45 feet length customization is available. The most suitable length can be customized according to transportation needs to meet the loading requirements of different transportation scenarios.
Main Beam Material: Made from Q345/T700 high-strength steel for excellent load capacity and structural durability.
Axles: Available in 2/3/4 axle options depending on load requirements, providing stability during transport.
Twist Locks: Equipped with 4–12 sets of standard twist locks that are easy to operate and securely lock containers in place during transit.
Lashing Points: Multiple tie-down points are designed along the frame sides to facilitate secure binding of various cargo types.
Posts & Guide Rails: Adjustable posts and guide rails are available, ideal for port transfer operations, allowing quick adaptation to different cargo sizes.
Steering Axle: Optional steering axle available to reduce turning radius, offering excellent maneuverability in narrow port or yard environments.

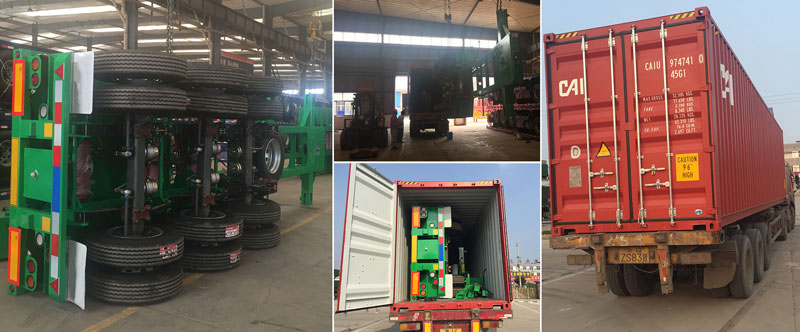

Transportation
Depending on trailer specifications, the trailers are shipped by container or bulk stacking. Vulnerable components such as twist locks and posts are professionally protected with shock-proof packaging to ensure safe transportation.
We develop the most efficient shipping plan based on the customer’s destination, using a combination of road, rail, and sea transport. Full tracking is provided to ensure timely and safe delivery.
Contact Us
When you purchase a skeleton trailer from us, you’ll get factory-direct pricing that eliminates middleman markups. As a professional semi-trailer manufacturer, we also offer free customization design and after-sales technical support.
If you’d like to know detailed configurations or request a quotation, feel free to contact us anytime via our website message or WhatsApp (+86-18866100060).
FAQ
Q1: Can this skeleton trailer transport overweight cargo?
A: The standard model has a loading capacity of 20–50 tons. We can reinforce the structure and customize higher-capacity models according to your needs.
Q2: How is the container fixed securely?
A: The trailer is equipped with internationally certified twist locks that undergo strict load testing to ensure firm and stable container fixation during transport.
Q3: Will long-term use in salty port environments reduce the trailer’s lifespan?
A: No. We use a dual-layer coating system, starting with electrophoresis primer, followed by multiple layers of environmentally friendly, high-adhesion, wear-resistant powder coatings, providing strong anti-salt and anti-corrosion protection for long-term use in coastal areas.
Q4: Can it adapt to internal port operation conditions?
A: Yes. The trailer is optimized for port operations, equipped with adjustable posts and guide rails, and can include a steering axle to reduce turning radius — ideal for internal container transfer tasks.
Q5: How long does it take to produce a customized skeleton trailer?
A: Standard configurations take about 15–20 working days, while special customizations may take longer depending on complexity. A precise production schedule will be provided after order confirmation.
