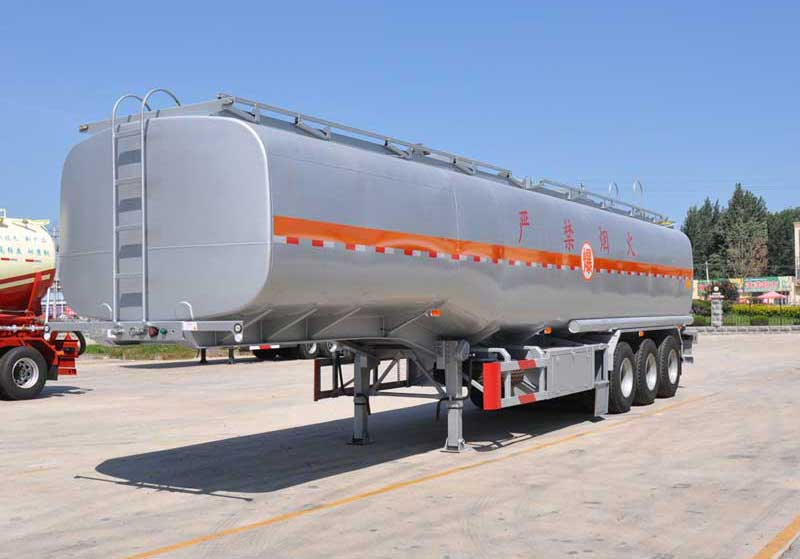

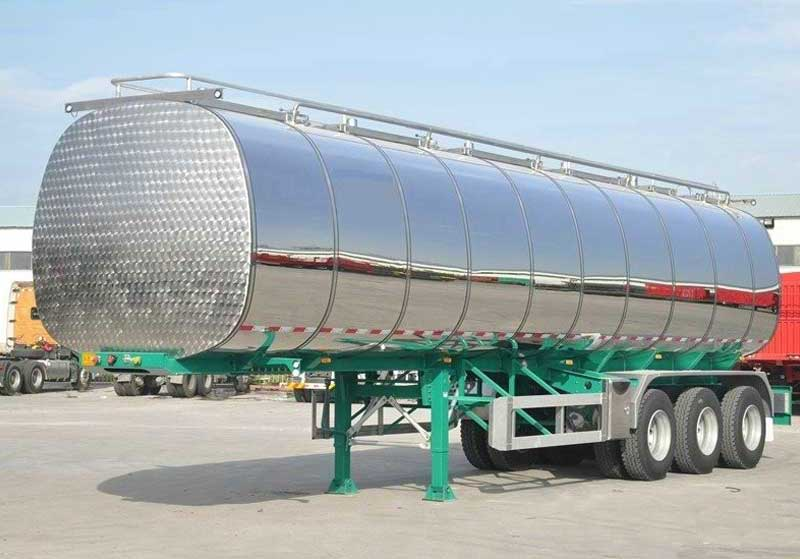

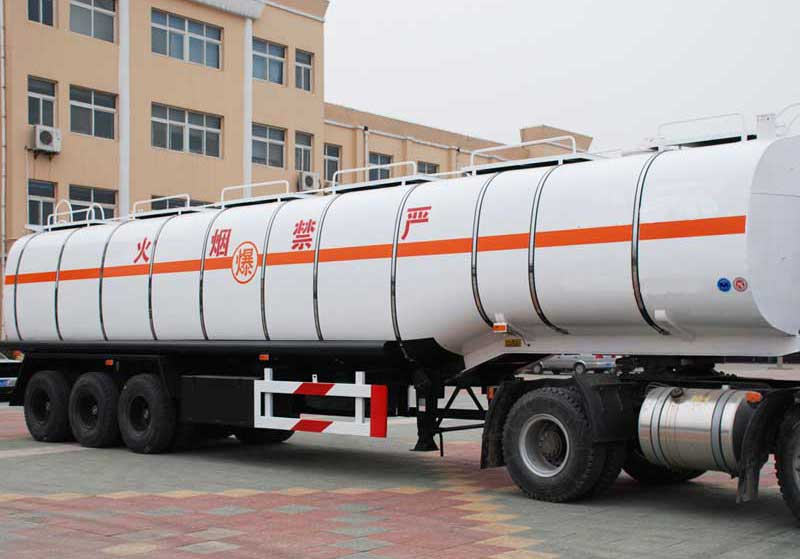

Bitumen tanker trailer is used for long, medium and short distance transportation of liquid bitumen. It uses automatic ignition diesel burner to for heating and thermal insulation. In addition, it is also used for penetrated pouring of bitumen pavement, bitumen surface treatment construction, as well as the overlay surface treatment for high-grade pavement. The bitumen tanker trailers can be designed with self-unloading function with inclination angel no more than 17 degrees. They can upload bitumen conveniently and efficiently. The installed heater has the function of blowing, which provides good heating and thermal insulation effect.
- Optional carbon/aluminum/stainless steel
- 20-55 CBM loading capacity. Optional number of compartments: 1 to 9
- Highly Strengthened steel and titanium with content of 0.98‰ ensures beam and frame’s high durability.
- Treated with shot blasting process: combination of primer and polyurethane for stronger adhesion. Provides high oxidation resistance.
- The 42 tough rib design ensures safety and carrying capacity.
- Specially designed anti-tire abrasion suspension system prevents tire offset after loading and tire abrasion. Easy to disassemble and maintain.
- National level welding supervision - process takes more 30 minutes than normal welding time.
- Examined with X-ray to ensure maximum
If you are a trailer distributor, purchasing Bitumen Tanker Trailer for sale, then we are your best trailer supplier. We have our own trailer factory.
If you are planning to do a Bitumen Tanker Trailer business, you can be our general agent or regional agent of trailers in your country. We will provide full technical and information support to help you sell better locally.
If you're building your own trucking team, we can offer the best trailer prices and the best service.
Material | Carbon Steel/Aluminum/Stainless Steel |
Volume of Tank | 20-55 CBM Customized |
Axle | 2/3/4 Axles |
Compartment | 1 to 9 |
Length*Width*Height | 13000mm*2500mm*3800mm |
European System | Available |
Thermal | Available |
Manhole | Anti-Explosion |
Lifted Axle | Available |
Vehicle Examination | X-RAY Room Examination |
Tank Shape | D Style/Round Style |
Tank Thickness | 5mm/Customized |
Dish End Thickness | 6mm /Customized |
Baffle Thickness | 4mm /Customized |
Manhole | Two Pieces, Aluminum, Anti-Explosion |
Discharge Valve | 2*3 inch |
Bottom Valve | 4-inch Aluminum |
Discharge Pipe | 3-inch rubber hose, 6m/each |
Hose Carrier | 2 Pieces Carbon Steel/Aluminum |
Axles | 2/3/4 Axles 13/16 Ton FUWA/BPW |
Tire | 12R22.5/11.00r20 |
8/12/16 Pieces | |
Linglong/Triangle/Double-Coin/Bridgestone/Other | |
Rim | 9.00*22.5/8.0 (8/12/16 Pieces) Steel/Aluminum |
Leaf Spring | 90mm*13mm*10/90mm*16mm*10 Pcs |
Suspension System | Mechanical or Air Suspension |
King Pin | 50#(2″)/90#(3.5″) JOST/Other Brands |
Landing Gear | 28 Tons, Two Speed, VEHICLE MASTER/JOST |
Tool Box | Steel or Aluminum |
Extinguisher | 2 Sets |
These are the detailed parameters of Bitumen Tanker Trailer, which can help you sell more intuitively.
Vehicle Master was one of the very first to perform tanker examination in such high standard in China Market. After production of each tanker trailer, we put the entire tanker trailer into the x-ray room. Various tests are performed to guarantee the overall welding quality. Any imperfections to the tanker trailers will be corrected afterwards, and another x-ray examination will be performed until everything has met our high standards. We do this to ensure safety and maximize the service life of our trailers.
Our high quality European system man-hole is reliable and explosion proof. Anti-overflow oil and gas recovery bottom loading makes your loading and unloading process easy and safe.
All of Vehicle Master's tanker trailer welding process is supervised on a national level. Meanwhile, automatic welding machine is also used. Each welding process takes more than 30 minutes than regular traditional welding to ensure the best result.
For landing gear, we give you the options of JOST or our own high quality Vehicle Master brand. R&D aluminum or steel Landing Gear comes with 5 year warranty. The gear box on our landing device is made with low temperature premlum chassis lube rated for service in temperature from -30°C to 120°C.
During the painting process, each tanker trailer is subjected to shot blasting procedure, a base paint, and polyurethane combination painting twice. The end result provides high oxidation resistance and much stronger adhesion.
We supply Bitumen Tanker Trailer for Sale, If you just want to buy a trailer for your own use, we can give you an advantageous price and save costs.
