| Quantity: | |
|---|---|

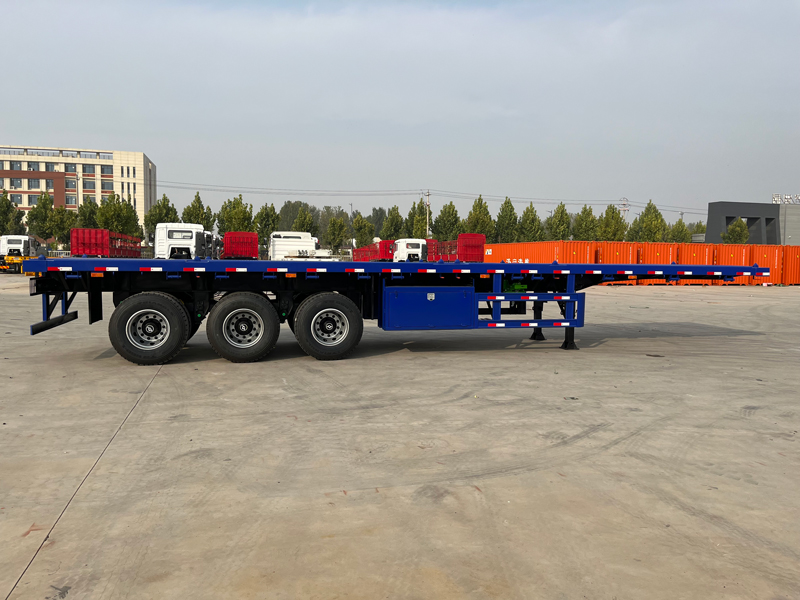

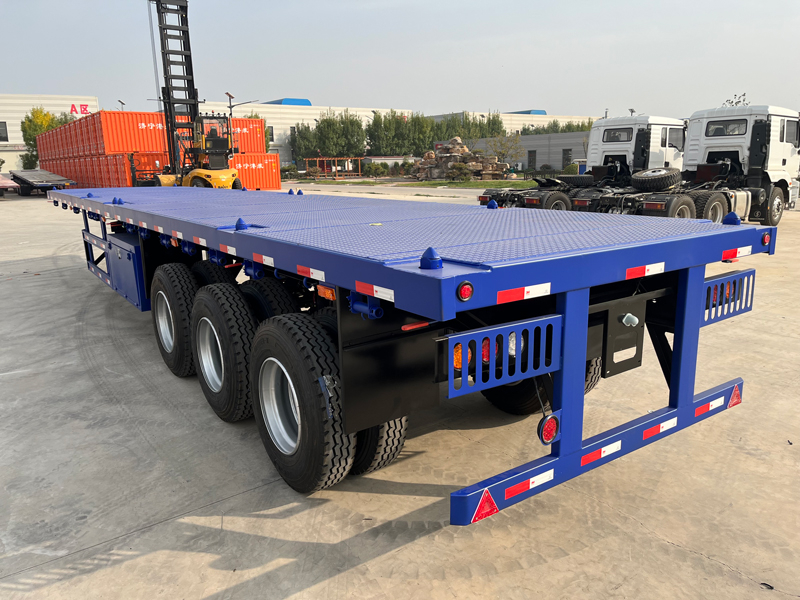

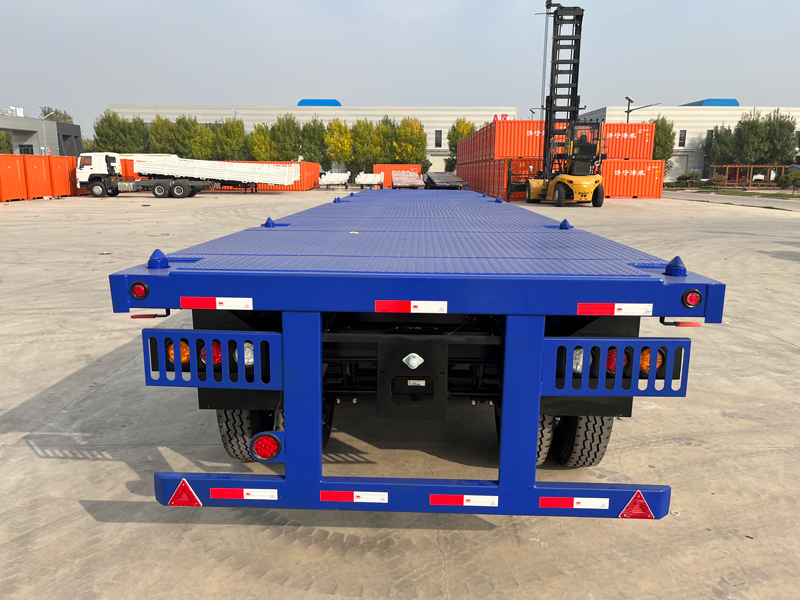

This 3 Axle 40ft Cargo Flatbed Trailer is sold directly at factory price. It is widely suitable for the efficient transportation of standard containers, construction machinery, pipes, and various other cargoes, offering convenient loading and unloading with low operating costs.
As a professional semi trailer manufacturing factory, our 3 Axle 40ft Cargo Flatbed Trailer is built with high-quality steel and advanced welding technology, delivering outstanding durability. It supports customized lengths from 20–60 feet, can be configured with 2/3/4/5 axles, and offers a maximum load capacity of 30–80 tons, fully meeting personalized usage requirements across different countries and transportation conditions.
Applications
Container Transportation: Transporting shipping containers, tank containers, generator containers, and other standardized boxes.
Machinery & Equipment Transportation: Carrying construction machinery such as excavators and loaders.
Steel & Long Material Transportation: Loading H-beams, rebar, steel pipes, prefabricated piles, and other long construction materials.
Building Component Transportation: Transporting prefabricated wall panels, bridge segments, steel trusses, and other large structural components.
Specifications
Product Name: 3 Axle 40ft Cargo Flatbed Trailer
Length: 40 ft
Customizable Length: 20–60 ft
Axles: 3 axles
Customizable Axles: 2/3/4/5 axles
Axle Specification: 13/16 tons per axle, BPW / FUWA
Maximum Payload: 30–80 tons
Main Beam Material: Q345 / T700
Suspension Type: Mechanical suspension or air suspension
Tire Specification: 12R22.5
Tire Quantity: 12 pieces (4 tires per axle, optional 2 spare tires)
Braking System: WABCO air braking
ABS: Optional
Floor Type: Checkered steel plate
Twist Lock Quantity: 4–12 optional
Stake Pockets: Reserved on front, rear, left, and right
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Ton Two Speed, JOST / Other Brand
Vehicle Painting: Electrophoresis Painting
Price Range
As a semi trailer factory, the reference price range of our flatbed trailers is USD 7,000 – 15,000.
The specific price mainly depends on trailer length, axle configuration, main beam specification, steel thickness, suspension type, tire brand, whether twist locks are equipped, and other customization options. In addition, different national regulations and purchase quantities will also affect the final transaction price.
If you would like to purchase this cargo flatbed trailer at a favorable price or obtain more customizable specifications, please contact us via website inquiry or WhatsApp (+86-18866100060).
Core Process
Welding: The main beam adopts automatic submerged arc welding, ensuring full and even weld seams with high welding strength. Manual repair welding is applied at structural corners and detail areas to ensure every weld meets long-term heavy-load operation standards, significantly improving overall fatigue resistance and service life.
Painting: The trailer uses high-adhesion polyurethane painting, with a smooth and even coating that provides excellent scratch resistance and corrosion protection. Electrophoresis painting is also available upon request to further enhance rust resistance and ensure a consistent appearance.

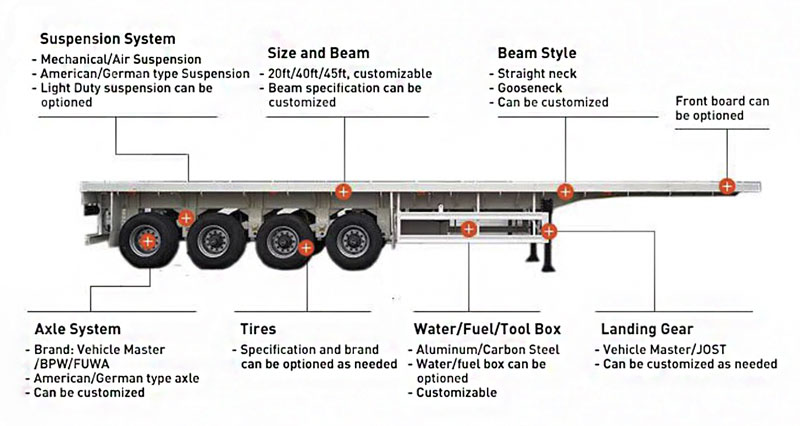

Main Configurations & Features
Main Beam Material: Made of Q345 / T700 high-strength steel, offering excellent bending and torsional resistance.

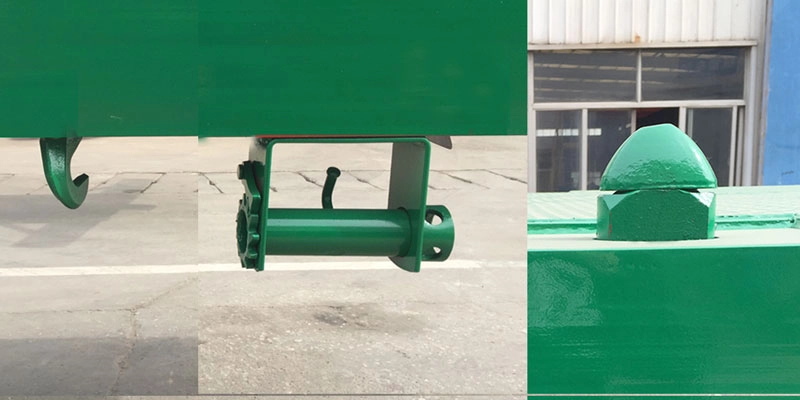

Twist Locks: Supports multi-position container twist lock layouts to meet standard container transportation requirements.
Stakes & Lashing Points: Detachable stakes combined with multiple lashing points for convenient securing of irregular and long cargoes.

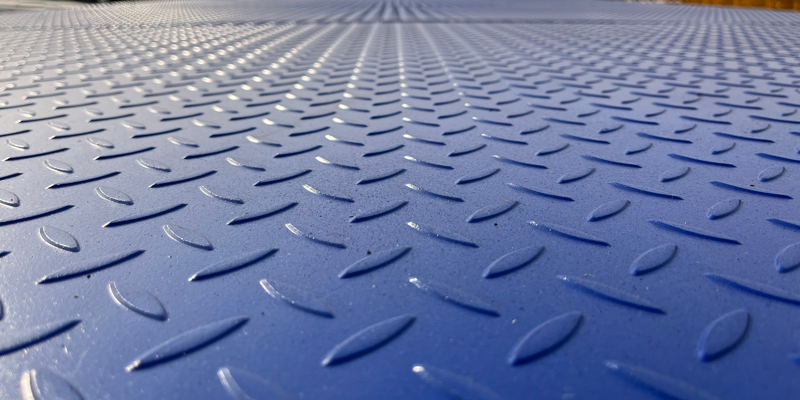

Floor Material: Anti-slip checkered steel plate design increases friction between cargo and floor to prevent cargo movement.

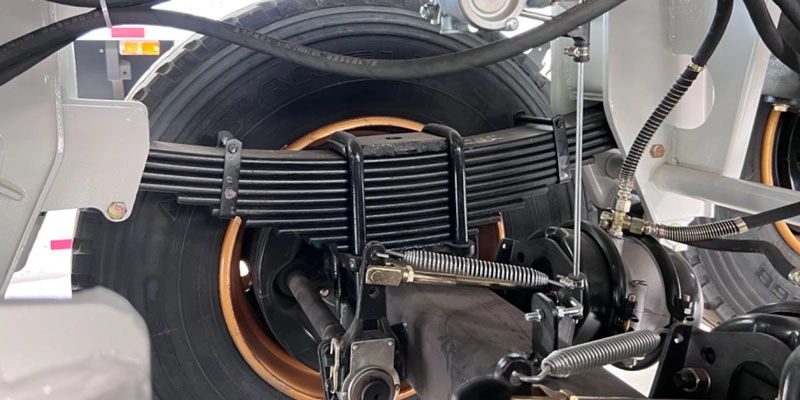

Suspension System: Excellent shock absorption performance reduces road impact on cargo and improves driving stability.
Braking System: WABCO air braking system ensures fast response and stable braking.

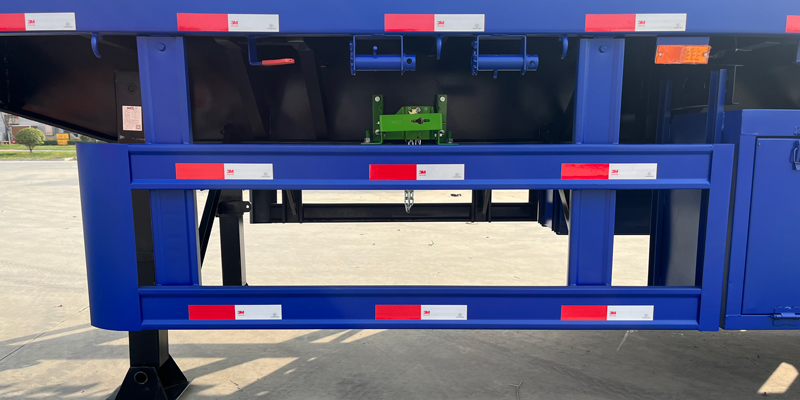

Protection System: Side and rear protections comply with export standards, effectively enhancing driving and operational safety.
Spare Tire Carrier: Equipped with a well-arranged spare tire rack for convenient carrying and replacement.
Landing Gear: JOST landing gear with strong load-bearing capacity and stable support.
Our Advantages
As a source factory, we provide factory-direct pricing with stronger cost competitiveness and direct communication with engineers for customization requirements.
We offer one-year complete vehicle warranty and long-term spare parts supply.
Multiple payment methods are available, including telegraphic transfer and letter of credit, ensuring flexible and secure transactions.
We cooperate with professional logistics teams to track shipments throughout the process, ensuring safe and on-time delivery.
Contact for Purchase
This 3 Axle 40ft Cargo Flatbed Trailer is available at factory-direct pricing, with reliable quality and support for personalized customization. If you have purchasing needs, wish to consult customization solutions, or request an accurate quotation, please contact us immediately. Our professional team will respond promptly and provide high-quality service. You can contact us via website inquiry or WhatsApp (+86-18866100060).
This 3 Axle 40ft Cargo Flatbed Trailer is sold directly at factory price. It is widely suitable for the efficient transportation of standard containers, construction machinery, pipes, and various other cargoes, offering convenient loading and unloading with low operating costs.
As a professional semi trailer manufacturing factory, our 3 Axle 40ft Cargo Flatbed Trailer is built with high-quality steel and advanced welding technology, delivering outstanding durability. It supports customized lengths from 20–60 feet, can be configured with 2/3/4/5 axles, and offers a maximum load capacity of 30–80 tons, fully meeting personalized usage requirements across different countries and transportation conditions.
Applications
Container Transportation: Transporting shipping containers, tank containers, generator containers, and other standardized boxes.
Machinery & Equipment Transportation: Carrying construction machinery such as excavators and loaders.
Steel & Long Material Transportation: Loading H-beams, rebar, steel pipes, prefabricated piles, and other long construction materials.
Building Component Transportation: Transporting prefabricated wall panels, bridge segments, steel trusses, and other large structural components.
Specifications
Product Name: 3 Axle 40ft Cargo Flatbed Trailer
Length: 40 ft
Customizable Length: 20–60 ft
Axles: 3 axles
Customizable Axles: 2/3/4/5 axles
Axle Specification: 13/16 tons per axle, BPW / FUWA
Maximum Payload: 30–80 tons
Main Beam Material: Q345 / T700
Suspension Type: Mechanical suspension or air suspension
Tire Specification: 12R22.5
Tire Quantity: 12 pieces (4 tires per axle, optional 2 spare tires)
Braking System: WABCO air braking
ABS: Optional
Floor Type: Checkered steel plate
Twist Lock Quantity: 4–12 optional
Stake Pockets: Reserved on front, rear, left, and right
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Ton Two Speed, JOST / Other Brand
Vehicle Painting: Electrophoresis Painting
Price Range
As a semi trailer factory, the reference price range of our flatbed trailers is USD 7,000 – 15,000.
The specific price mainly depends on trailer length, axle configuration, main beam specification, steel thickness, suspension type, tire brand, whether twist locks are equipped, and other customization options. In addition, different national regulations and purchase quantities will also affect the final transaction price.
If you would like to purchase this cargo flatbed trailer at a favorable price or obtain more customizable specifications, please contact us via website inquiry or WhatsApp (+86-18866100060).
Core Process
Welding: The main beam adopts automatic submerged arc welding, ensuring full and even weld seams with high welding strength. Manual repair welding is applied at structural corners and detail areas to ensure every weld meets long-term heavy-load operation standards, significantly improving overall fatigue resistance and service life.
Painting: The trailer uses high-adhesion polyurethane painting, with a smooth and even coating that provides excellent scratch resistance and corrosion protection. Electrophoresis painting is also available upon request to further enhance rust resistance and ensure a consistent appearance.
Main Configurations & Features
Main Beam Material: Made of Q345 / T700 high-strength steel, offering excellent bending and torsional resistance.
Twist Locks: Supports multi-position container twist lock layouts to meet standard container transportation requirements.
Stakes & Lashing Points: Detachable stakes combined with multiple lashing points for convenient securing of irregular and long cargoes.
Floor Material: Anti-slip checkered steel plate design increases friction between cargo and floor to prevent cargo movement.
Suspension System: Excellent shock absorption performance reduces road impact on cargo and improves driving stability.
Braking System: WABCO air braking system ensures fast response and stable braking.
Protection System: Side and rear protections comply with export standards, effectively enhancing driving and operational safety.
Spare Tire Carrier: Equipped with a well-arranged spare tire rack for convenient carrying and replacement.
Landing Gear: JOST landing gear with strong load-bearing capacity and stable support.
Our Advantages
As a source factory, we provide factory-direct pricing with stronger cost competitiveness and direct communication with engineers for customization requirements.
We offer one-year complete vehicle warranty and long-term spare parts supply.
Multiple payment methods are available, including telegraphic transfer and letter of credit, ensuring flexible and secure transactions.
We cooperate with professional logistics teams to track shipments throughout the process, ensuring safe and on-time delivery.
Contact for Purchase
This 3 Axle 40ft Cargo Flatbed Trailer is available at factory-direct pricing, with reliable quality and support for personalized customization. If you have purchasing needs, wish to consult customization solutions, or request an accurate quotation, please contact us immediately. Our professional team will respond promptly and provide high-quality service. You can contact us via website inquiry or WhatsApp (+86-18866100060).
