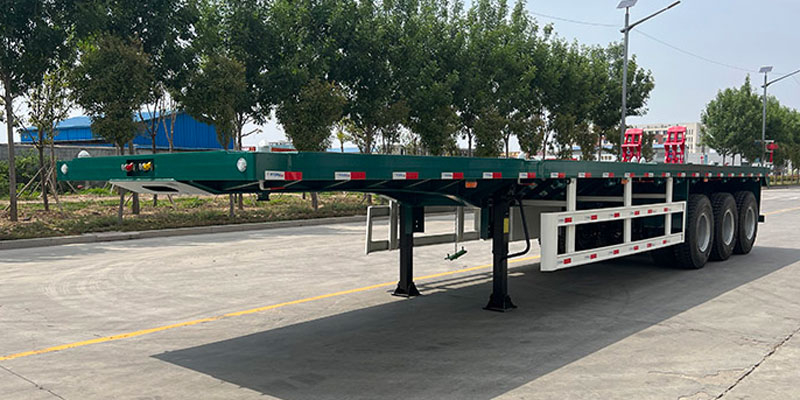

3 Axle 40ft Flatbed Trailer for Sale
This 3 Axle 40ft Flatbed Trailer is manufactured by Vehicle Master and is specially designed for transporting containers, machinery, irregular goods, and more. As a semi-trailer factory, we offer factory prices and support personalized customization services to meet transportation needs.

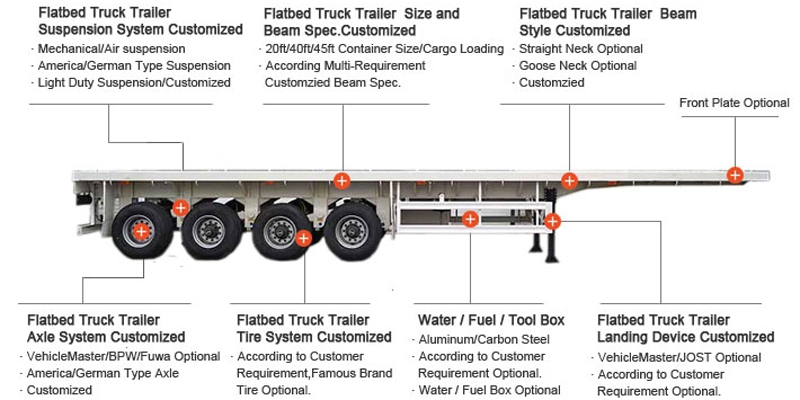

Our 3 Axle 40ft Flatbed Trailer supports lengths of 20/40/45/53/60 feet, with a load capacity covering 20-80 tons. Depending on the length and load, it can be equipped with 2/3/4 axles, and offers customized options such as twist locks, stakes, suspension, etc., to flexibly meet different transportation requirements.
Application
Container Transportation: Stable carrying of various types of containers for efficient cross-regional transfer.
Engineering Equipment Handling: Safely transport medium-sized machinery such as loaders and generators.
Component Transportation: Suitable for steel structures, large molds, and other irregularly shaped goods.
Long Cargo Transfer: Orderly loading of logs, steel pipes, and other long building materials, preventing rolling and falling.
Main Specifications
Axle: 3 axles, optional 2 axles or 4 axles, each axle 13/16 tons
Length: 40ft (customized 20-60ft available)
Rated Loading Capacity: 20 - 80 tons
L*W*H: 12400mm*2500mm*1570mm
Type: Gooseneck Type / Tandem Type
Main Beam Material: Q345/T700
Floor Material: Anti-skid patterned steel plate
Tire: 12R22.5 (8/12 Pieces)
King Pin: #50(2") / #90(3.5"), JOST / Other Brand
Landing Gear: 28 Ton Two Speed, JOST / Other Brand
Twist Lock: 4 Sets / 12 Sets
Safety System: LED lights, reflective markings, optional ABS
Price Range
As a semi-trailer factory, our flatbed trailer price range is from USD 7,000 to USD 25,000. Prices are affected by various factors, including trailer length, axle configuration, air suspension, floor thickness, number of stakes, etc. The higher the degree of customization and the more comprehensive the functions, the higher the price.
If you want to purchase this 3 Axle 40ft Flatbed Trailer at a factory price, please leave a message on the website or contact us via WhatsApp (+86-18866100060).

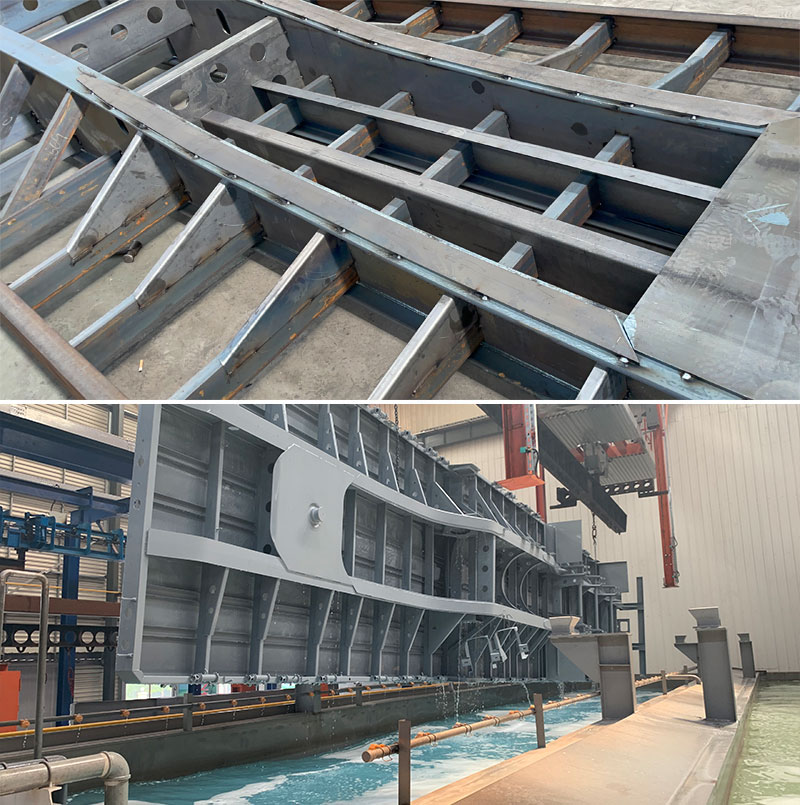

Core Processes
Automatic Submerged Arc Welding Technology: Using automated equipment to perform continuous welding of the main beam and key parts of the frame under the protection of a flux layer, ensuring deep penetration, uniform welds, and no pores or slag inclusions. This significantly improves the structural strength and fatigue resistance of the whole vehicle, making it less prone to deformation or cracking during long-term heavy-duty transport.
Electrophoretic Coating Process: All metal structural parts undergo electrophoretic treatment before painting, allowing the primer to adhere evenly to the metal surface under an electric field, forming a dense anti-corrosion layer. Compared with traditional spraying, electrophoretic coating has stronger adhesion, excellent scratch resistance, anti-aging, and rust prevention capabilities, effectively preventing chassis and frame corrosion and extending the service life of the vehicle.

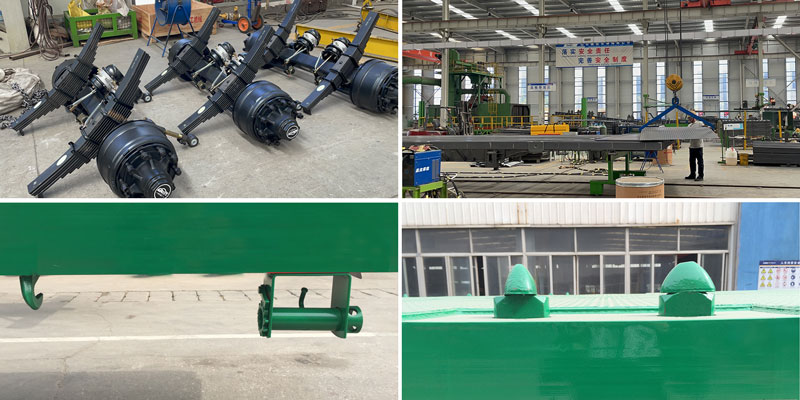

Main Features
High-Strength Main Beam: Made of Q345/T700 high-strength steel, with strong load-bearing capacity, bending and torsion resistance, providing solid support for the entire vehicle body to ensure stable and safe heavy-load transportation.
Patterned Steel Floor: The surface is made of anti-skid patterned steel plate, effectively increasing friction with the cargo to prevent sliding during transportation and improving transport safety.
Open Deck: Unobstructed open design allows for loading and unloading from the top, sides, or multiple directions, facilitating crane, forklift, and other equipment operations.
Twist Lock Configuration: Equipped with 4-12 sets of standard twist locks to securely fix container corner castings, preventing displacement or falling during transport and ensuring safe and reliable container transportation.
Stakes: Detachable stakes for enclosing tall or loose cargo, effectively preventing cargo sway and improving transport stability. They can be removed when empty to save space.
Shipping
Depending on the customer’s destination, we communicate with the customer to determine the appropriate transportation solution, using road, rail, sea, or combined transport, choosing the optimal route to ensure the equipment arrives intact.
Based on trailer specifications, we choose suitable transportation methods, using containerized or stacked transport. Main components such as twist locks and stakes are tightly wrapped with moisture-proof film, foam pads, and wooden frames to avoid collision damage during transport.
Contact Us
As a semi-trailer factory, by purchasing the 3 Axle 40ft Flatbed Trailer for Sale from us, you will get a flatbed transport vehicle with a strong structure, flexible use, and high transport efficiency at a factory price, with global delivery and customization services supported. You can contact us through the website message form or via WhatsApp (+86-18866100060).
