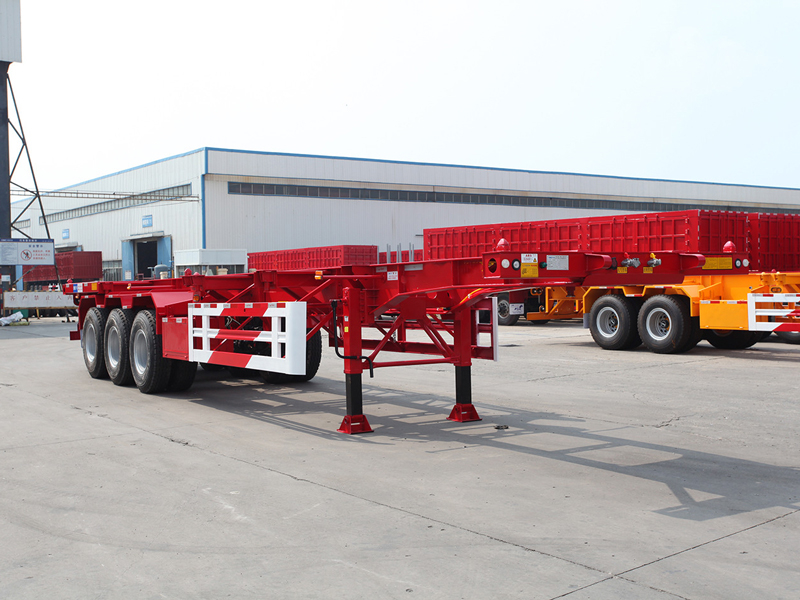

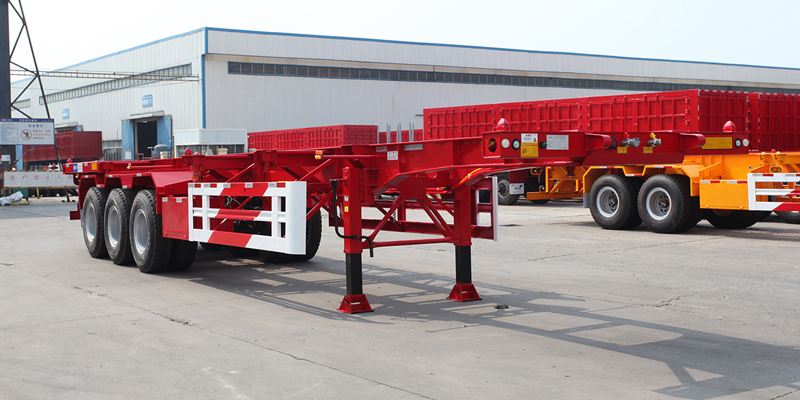

3 Axle 40ft Skeleton Container Trailer for Sale
This 3 Axle 40ft Skeleton Container Trailer is manufactured by Vehicle Master, designed specifically for the efficient transportation of containers. As a leading semi-trailer manufacturer, we offer factory-direct pricing and provide customized services according to customer requirements to meet various usage needs.
Our 3 Axle 40ft Skeleton Container Trailer supports customization in 20/40/45ft lengths, with a load capacity ranging from 20-80 tons. The number of axles can be selected as 2/3/4 axles, and it can be equipped with different specifications of twist locks, guide rails, pillars, and suspension systems to flexibly meet diversified container transportation demands.
Application Scenarios
Long-distance container transportation: Dedicated to cross-regional long-haul transport of standard containers.
Port to logistics park transfer: Connects ports with inland logistics parks for efficient container dispatching.
Internal container transfer: Achieves rapid turnaround of containers within ports or terminal areas.
Container multimodal transport: Connects sea, rail, and road transport for seamless container transfer.
Main Specifications
Standard length: 40ft (compatible with 20ft/45ft containers)
Axle configuration: 2/3/4 axles (this model standard with 3 axles), each axle rated at 13/16 tons
Rated load: 20 - 80 tons
Type: Gooseneck or Tandem
Main beam material: Q345/T700
Tire: 12R22.5 × 12 pieces (4 tires per axle)
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Tons Two Speed, JOST / Other Brand
Twist locks: 4-12 sets
Painting: Electrophoresis Painting
Suspension system: Mechanical leaf spring or air suspension optional
Brake system: Dual-circuit air brakes with ABS anti-lock function
Price Range
As a semi-trailer manufacturer, the price range of our skeleton trailers is USD 6,000 to 15,000. Prices are affected by various factors, including trailer length, air suspension, number of axles, main beam thickness, and more. We offer flexible configuration options to help customers customize according to their needs.
If you need to customize a skeleton trailer or want to get a quotation for this 3 Axle 40ft Skeleton Container Trailer, please contact us via website message or WhatsApp (+86-18866100060).

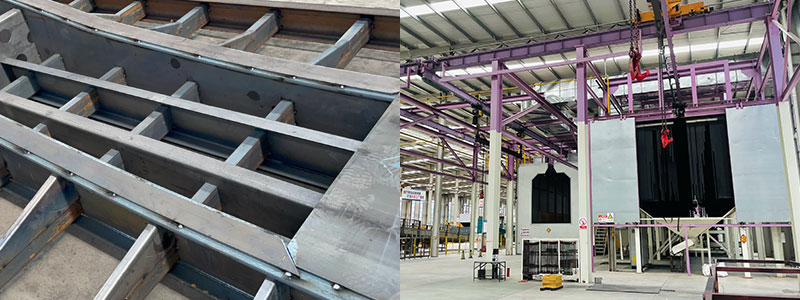

Core Processes
Welding process: We adopt an automatic submerged arc welding process to handle weld seams. The precise welding process ensures deep penetration, uniformity, and slag-free seams, greatly improving the overall structural strength, enhancing fatigue resistance and anti-deformation capability, especially suitable for long-term heavy load and frequent start-stop transportation environments.
Painting process: We use electrophoretic painting with stronger adhesion and better scratch resistance. After surface treatments such as shot blasting, we immerse the trailer into the electrophoresis tank, allowing the paint to uniformly adhere to the metal surface under the action of an electric field. This effectively prevents chassis corrosion, extends body service life, and reduces later maintenance costs.

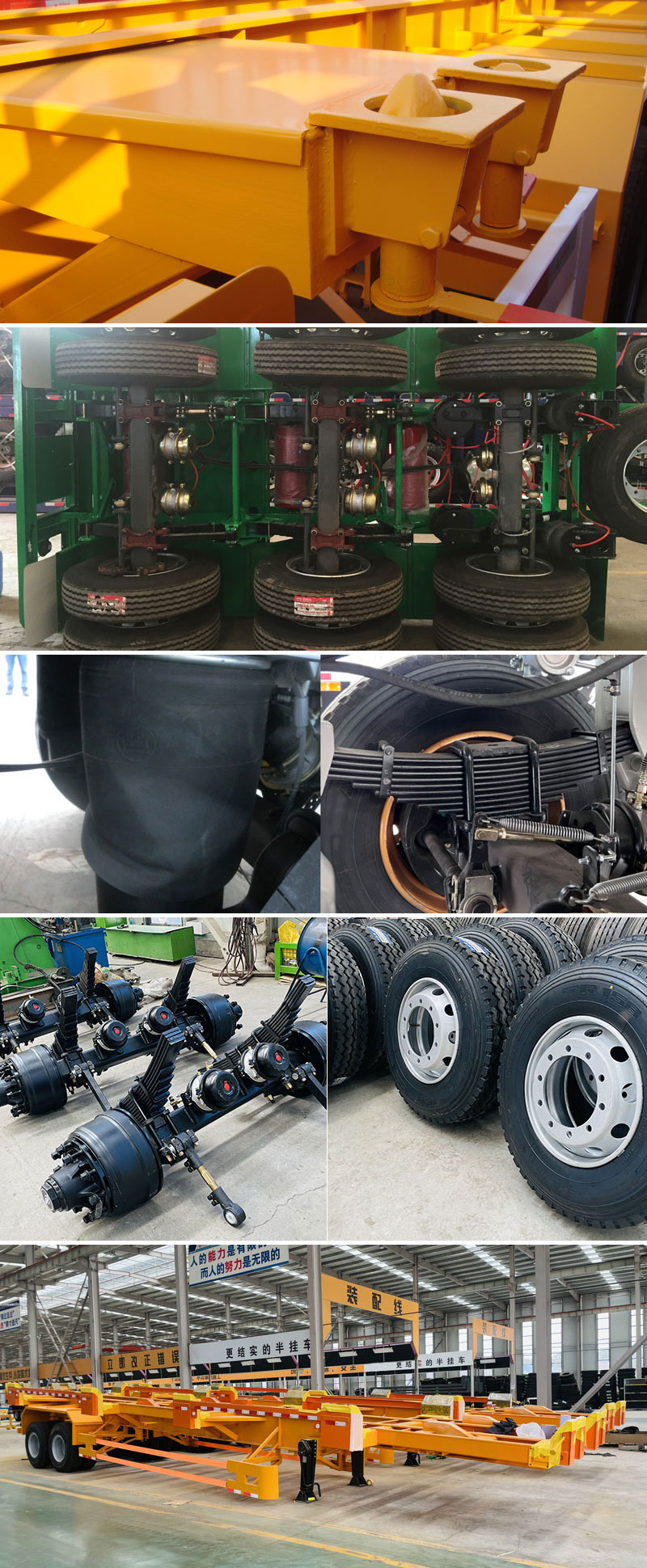

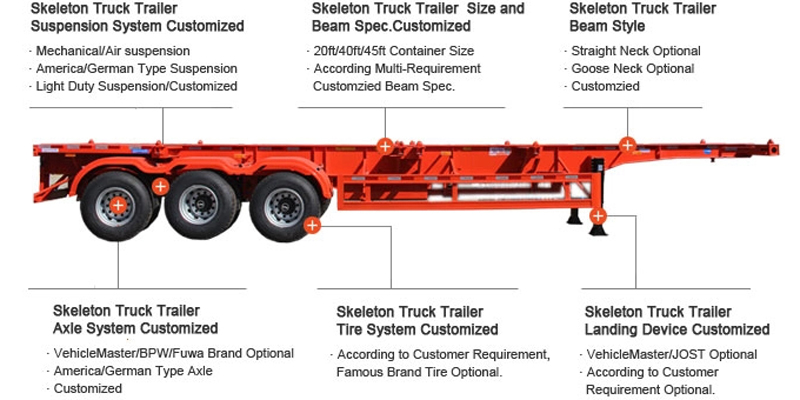

Main Features
Length customization: Available in 20/40/45ft lengths, precisely matching 20/40/45ft containers to meet customers’ different size transportation needs.
Main beam structure: Made from Q345/T700 high-strength steel, the section is mechanically optimized for strong load-bearing capacity, bending, and torsion resistance, ensuring long-term stable operation.
Axles: Designed with 2/3/4 axles according to trailer length and load, with reasonable load distribution to improve carrying capacity and driving stability.
Twist locks: We provide 4-12 sets of standard container twist locks or customized options according to customer requirements to firmly lock container corner castings and prevent shifting during transportation.
Pillars and guide rails: Suitable for use within ports or terminals for quick loading/unloading and improved transfer efficiency, not for long-distance transport.
Suspension system: Mechanical leaf spring or air suspension options available. Mechanical suspension offers strong adaptability to harsh environments and better cost efficiency; air suspension provides better stability and improved transport safety.

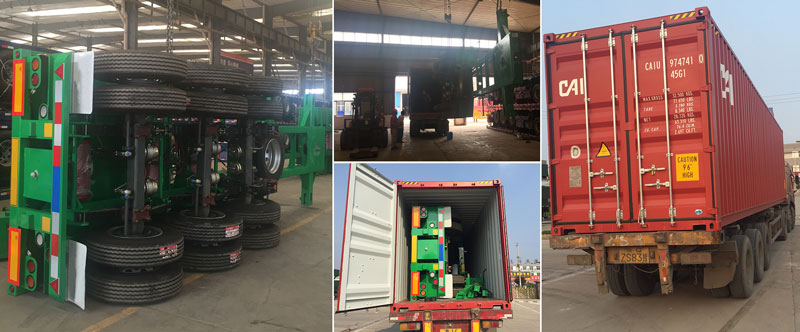

Shipping
Based on the customer's destination, we communicate transportation solutions and ensure safe, on-time delivery to global customers via road, rail, sea, or multimodal transport.
For transportation, we use container shipping or stacked transport. Key components and vulnerable parts are tightly wrapped with moisture-proof film, foam pads, and wooden frames to prevent bumps, scratches, and rust during transit.
Contact Us
As a semi-trailer manufacturer and dealer, purchasing a skeleton container trailer from us ensures factory pricing and the ability to customize according to your needs. You can contact us via website message or WhatsApp (+86-18866100060).
