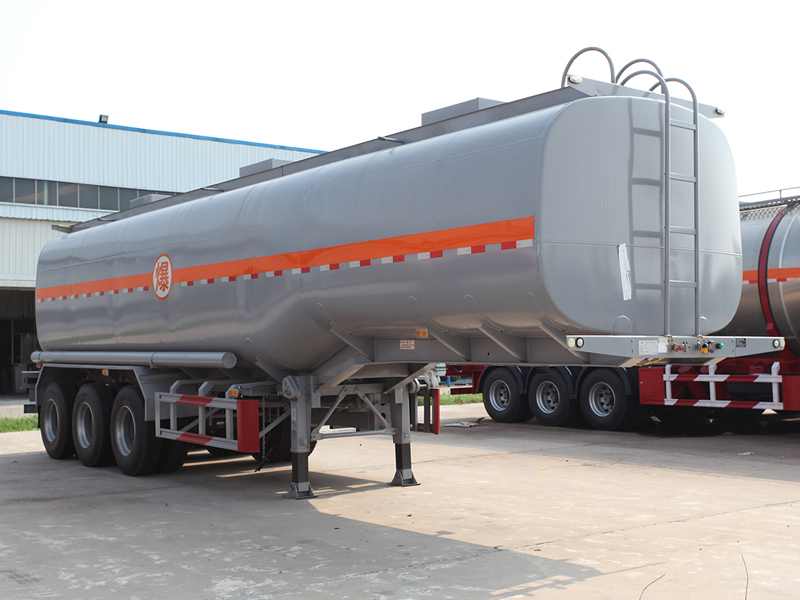

Introduction: In the international logistics industry, the 3 axle 45,000L fuel tanker trailer is widely recognized as the best-selling "golden specification." It achieves the perfect balance between maximizing payload capacity and complying with strict road weight regulations in different countries. As a leading trailer manufacturer, Vehicle Master has developed its 45,000L fuel tanker trailer with a variety of material options, making it widely applicable in petroleum products, food-grade liquids, and chemical transportation. This article provides a comprehensive introduction to its detailed specifications, structural design, safety configurations, and the key factors affecting pricing, helping global buyers make cost-effective purchasing decisions.
Liquid transportation is an essential part of cargo transportation, covering fuel, edible oils, chemical products, and many other necessities used across industries. As a professional trailer manufacturer, Vehicle Master offers high-performance 45,000L fuel tanker trailers equipped with 3 axles and available in stainless steel, carbon steel, and aluminum materials, suitable for transporting fuel, food-grade liquids, and hazardous chemicals.
1. Core Specifications and Multi-Purpose Material Options
We provide customized tank bodies in different materials to meet the transportation requirements of petroleum products, food-grade liquids, and hazardous chemicals.
| Transport Category | Tank Material | Main Features | Applicable Cargo |
Petroleum Products | High-quality carbon steel / Lightweight aluminum alloy | High rigidity, good tightness, light weight, cost-effective | Gasoline, diesel, crude oil and other fuel products |
Food-grade Liquids | Food-grade stainless steel | High-precision internal polishing, pollution-free, no peculiar smell, food safety compliant | Edible oil, drinking water, milk, wine and other edible liquids |
Hazardous Chemicals | 316L special stainless steel / Carbon steel with rotational molding lining | Excellent anti-corrosion and anti-leakage performance | Acid, alkali, methanol and other corrosive industrial chemicals |
2. Tank Structure and Compartment Design

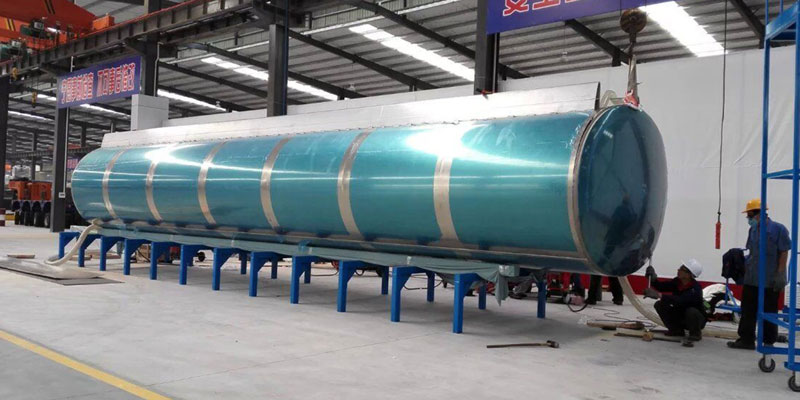

Strong Automated Welding
The entire tank body is manufactured using robotic automatic welding technology, ensuring uniform and strong weld seams. Before leaving the factory, every tank undergoes strict airtightness testing. This significantly enhances overall durability and sealing performance, preventing liquid leakage during long-distance transportation.
Customized Multi-Compartment Layout
The 45,000L fuel tanker trailer can be flexibly divided into 1 to 9 independent compartments according to customer requirements. This design allows multiple types of liquids to be transported in a single trip, greatly improving transportation efficiency and increasing return-trip profitability.

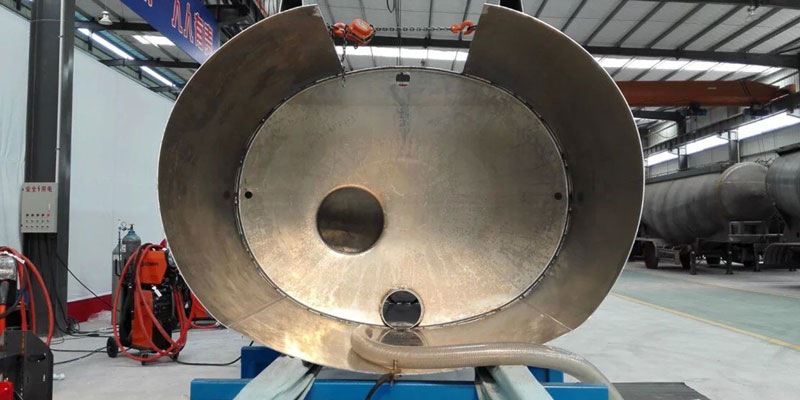

High-Efficiency Anti-Surge Baffles
High-strength anti-surge baffles are installed inside the tank compartments to significantly reduce liquid impact during emergency braking or sharp turns, ensuring driving safety even when the 45,000L tank is fully loaded.
3. Premium Running Gear and Safe Unloading Configurations

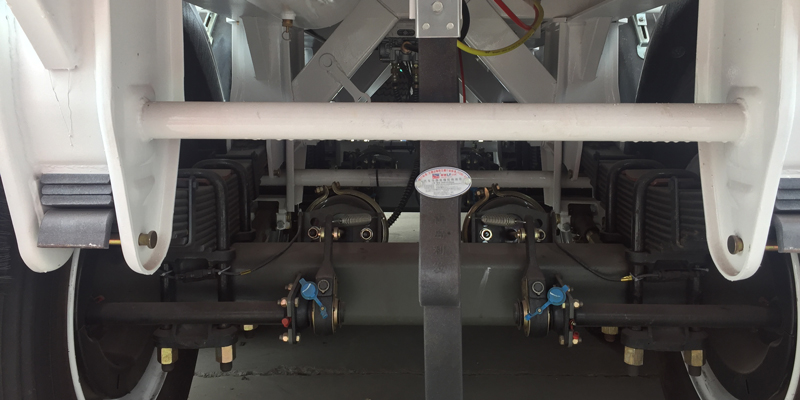

Running Gear
Our fuel tanker trailers are equipped with FUWA or BPW brand axles, with load capacities of 13 tons or 16 tons respectively. Combined with reinforced mechanical suspension and 12.00R22.5 wear-resistant steel radial tires, the chassis is stable and durable, capable of adapting to long-distance transportation and complex road conditions.
Main Beam and Welding Process
The main frame is constructed from high-strength steel and manufactured using automatic submerged arc welding technology. The entire chassis offers excellent load-bearing capacity, deformation resistance, and long service life, fully meeting the demands of long-term heavy-duty operations.

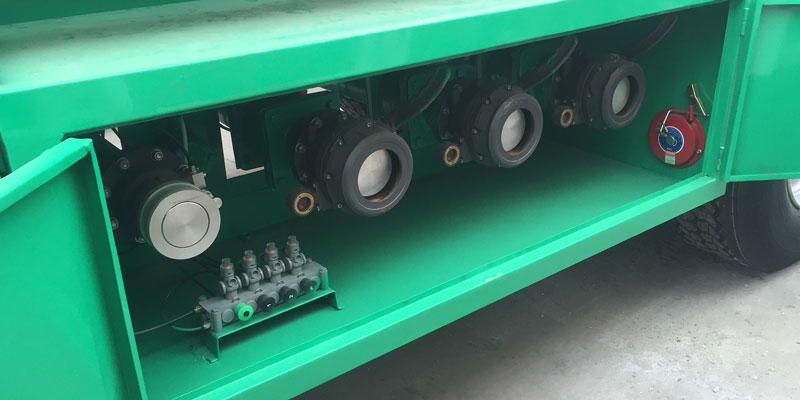

Pumping System
The trailer is equipped with a standard API bottom loading and unloading system, which speeds up loading and unloading operations while reducing fuel vapor emissions, making it both environmentally friendly and safer to operate.
Additional Safety Devices
Emergency bottom valves and shut-off valves are included as standard. In the event of a collision or accident, the pipeline will automatically shut off to prevent large-scale liquid leakage and eliminate potential safety hazards.
4. Key Factors Affecting the Price
The final quotation mainly depends on material selection and customized configurations. We clearly explain the pricing structure to help customers with budget planning.
Material Differences
Aluminum alloy and food-grade/chemical-grade stainless steel cost more than standard carbon steel. However, they are lighter in weight, offer superior corrosion resistance, and provide a higher long-term return on investment.
Configuration Differences
The number of compartments, additional pump units, insulation layers, and other customized accessories will also affect the total price.
Vehicle Master is both a semi trailer manufacturer and distributor, providing highly competitive factory export prices by eliminating middleman markups and delivering high-quality products at reasonable prices.
Contact Us
This 3 axle 45,000L fuel tanker trailer is a practical and economical choice for global liquid logistics. With a wide range of material options, reliable structure, comprehensive safety systems, and flexible customization solutions, Vehicle Master tanker trailers can fully meet your transportation needs for fuel, food-grade liquids, and chemicals.
If you are looking for a high-quality fuel tanker trailer, contact us today. We will provide you with customized solutions, detailed quotations, and professional after-sales service.
