3 Axle Flatbed Cargo Semi Trailer for Sale

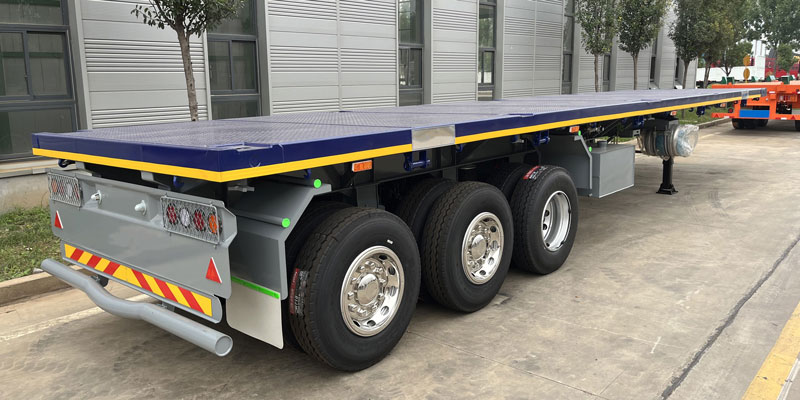

This 3 axle flatbed cargo semi trailer is manufactured by Vehicle Master. It features excellent durability and is suitable for various transportation scenarios. This flatbed cargo semi trailer is sold at factory-direct price and can be customized based on customer usage requirements.

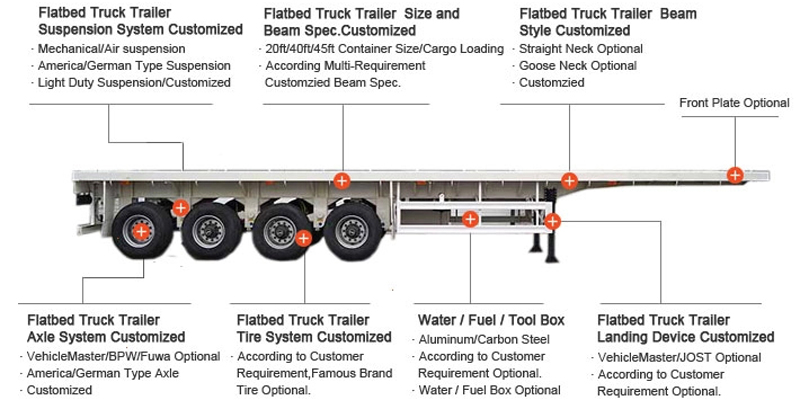

This 3 axle flatbed cargo semi trailer supports flexible customization, with lengths available from 20-60ft, load capacities ranging from 20-80 tons, and optional 2/3/4/5 axles. It can also be equipped with posts, twist locks, and other securing devices to ensure safe transportation of containers, machinery, logs, pipes, and other irregular cargo.
Application
Container Transport: Securely carries standard containers, ensuring efficient long-distance container transfer.
Construction Equipment Delivery: Safely delivers medium-sized equipment such as loaders and generators to construction sites.
Irregular Component Transport: Suitable for large steel structures, molds, and other irregular cargo. Once fixed, the cargo remains stable without shaking.
Long Material Transfer: Efficiently loads logs, steel pipes, and other elongated building materials, preventing rolling or damage during transport.
Specifications
Axles: 3 axles (optional 2/4/5 axles), 13/16 tons per axle
Length: 20-60ft (customizable)
Load Capacity: 20-80 tons
Type: Gooseneck Type / Tandem Type
Main Beam Material: Q345/T700
Floor: 3-6mm Anti-slip Checkered Steel Plate
Twist Locks: 4-12 pieces
Tires: 12R22.5 (8/12 pieces)
Suspension System: Mechanical Suspension / Air Suspension
Braking System: Drum Brake (with ABS anti-lock system)
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Ton Two-Speed, JOST / Other Brand
Lighting System: LED High-Brightness Lights + Reflective Strips
Painting: Electrophoresis Painting
Price Range
As a semi trailer factory, our flatbed semi trailer price ranges from USD 7,000 - 25,000. The price is directly affected by customization requirements: longer dimensions, higher load configurations, air suspension, additional twist locks, and posts will increase material costs and process complexity, leading to higher prices.
If you would like to purchase this 3 axle flatbed cargo semi trailer or customize it according to your usage needs, please contact us via website message or WhatsApp (+86-18866100060).

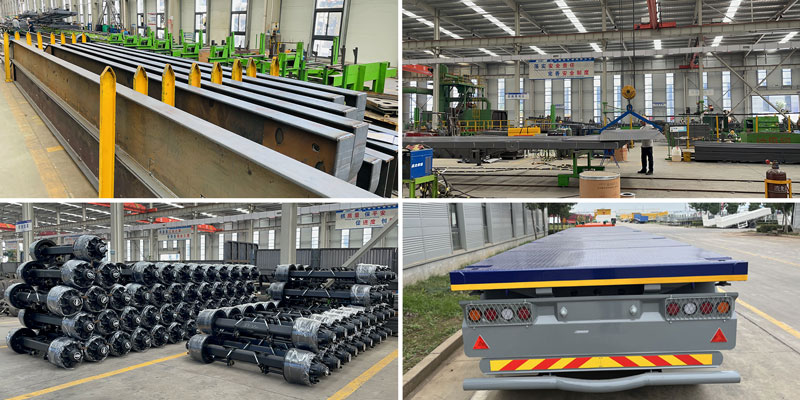

Core Manufacturing Process

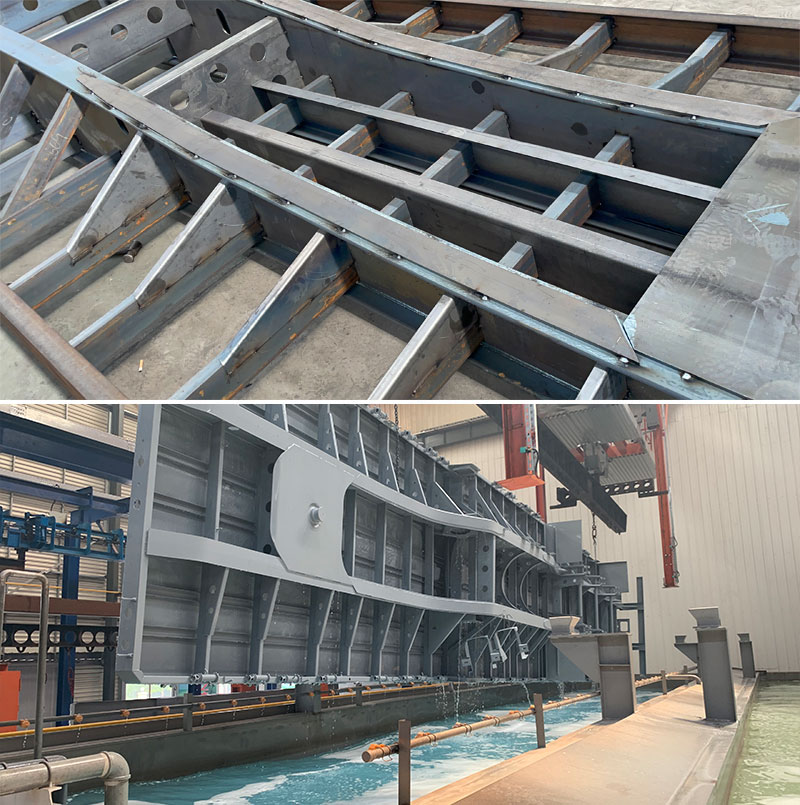

Welding Process: The main beam and cross beams are continuously welded using automatic submerged arc welding. The weld seams are evenly fused and full, without pores, slag inclusions, or other defects. This greatly enhances the torsion resistance and load-bearing capacity of the frame, reduces structural deformation, and extends the service life of the semi trailer.
Painting Process: The body is treated with an advanced electrophoresis painting process. After pretreatment such as degreasing and phosphating, the body is immersed in an electrophoresis tank where cathodic electrophoresis forms a dense anti-rust coating. This process provides strong adhesion, is not easy to peel off, ensures long-lasting anti-rust protection, and reduces maintenance costs.
Main Features
Main Beam Material: Made of Q345 or T700 high-strength steel as the main beam, it resists bending and deformation under long-term heavy load, providing solid support for cargo transport.
Checkered Steel Floor: The floor is made of anti-slip checkered steel plate with clear and deep patterns, increasing friction with cargo and effectively preventing slippage during transport.
Open Deck: Unobstructed open design suitable for cargo of various shapes and sizes, and convenient for loading and unloading with cranes, forklifts, and other equipment from multiple angles.
Twist Locks: Equipped with 4-12 sets of standard container twist locks, tightly engaging with container corner castings. Once locked, they are not easy to loosen, preventing container displacement or falling during transport.
Posts: Optional detachable posts are available. When transporting logs or pipes, the posts can be installed to prevent lateral movement, ensuring safe transportation.
Braking System: Equipped with WABCO air braking system and ABS.
LED Lights: Equipped with high-brightness LED lights throughout the trailer, offering excellent night visibility, low energy consumption, and long service life.
Reflective Strips: Reflective strips are added to both sides of the body, improving visibility in nighttime or low-visibility environments to ensure driving safety.

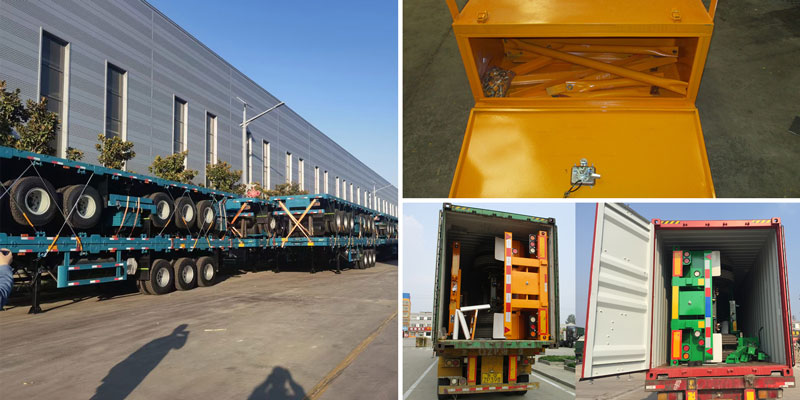

Shipping Details
According to flatbed semi trailer specifications, container or stacking transport is selected. Detachable parts such as twist locks and posts are wrapped with shockproof foam and packed in wooden boxes, then covered with waterproof tarps to prevent collision damage during transport.
Based on the customer’s destination, transportation methods are discussed with the customer. Road, rail, sea, or multimodal transport options are supported to formulate the optimal transportation route and ensure safe delivery.
Contact Us
We are a semi trailer manufacturer and supplier. By purchasing the 3 axle flatbed cargo semi trailer from us, you will enjoy factory prices, as well as free customization design plans and after-sales technical support. You can contact us via website message or WhatsApp (+86-18866100060).
