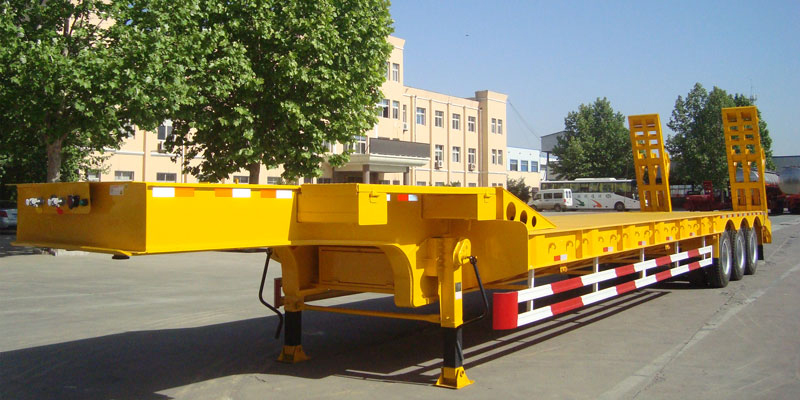

3 Axle Lowbed Semi Trailer Factory
We are a professional 3 axle lowbed semi trailer factory, selling directly to customers at factory prices while supporting comprehensive customization. As a lowbed semi trailer factory, our lowbed semi trailers are made of high-quality steel, featuring strong overall rigidity and excellent load-bearing capacity. They are suitable for transporting construction machinery such as excavators and loaders, and can also meet the long-distance transportation needs of various heavy industrial cargo.
As a top lowbed semi trailer factory and manufacturer, Vehicle Master provides diversified customization solutions. The whole trailer supports load customization from 30 tons to 150 tons, equipped with 2/3/4/5 axles. At the same time, we offer high-end optional configurations such as detachable gooseneck and body widening components, fully adapting to different working conditions and transportation equipment specifications.

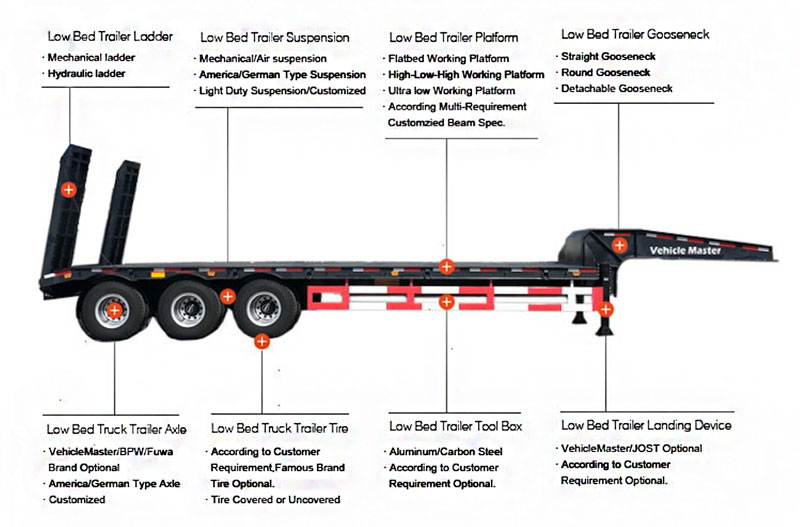

Specifications
Standard load: 50–60 tons (customizable from 30–150 tons)
Standard axles: 3 axles (2/3/4/5 axles available based on load)
Axle specifications: 13/16/20 tons, FUWA/BPW
Main beam material: Q345/Q690/T700 high-strength structural steel
King pin: #50 (2") / #90 (3.5")
Braking system: WABCO air brake + ABS system
Suspension type: Mechanical leaf spring suspension (hydraulic suspension optional)
Tire specifications: 12R22.5 / 8.25R20
Number of tires: 12 units (4 tires per axle depending on axle configuration)
Gooseneck structure: Fixed (detachable hydraulic gooseneck optional)
Ramp structure: Spring ramps (hydraulic ramps optional)
Coating process: Electrophoretic primer + topcoat (polyurethane painting optional)
Price Range
As a lowbed semi trailer factory, the price range of our 3 axle lowbed semi trailer is USD 12,000 to USD 25,000. Prices for other specifications of lowbed semi trailers are affected by factors such as load capacity, axle configuration, optional imported brand components, detachable gooseneck and widening structures, coating processes, and purchase quantity. The specific price will be calculated based on the actual configuration.

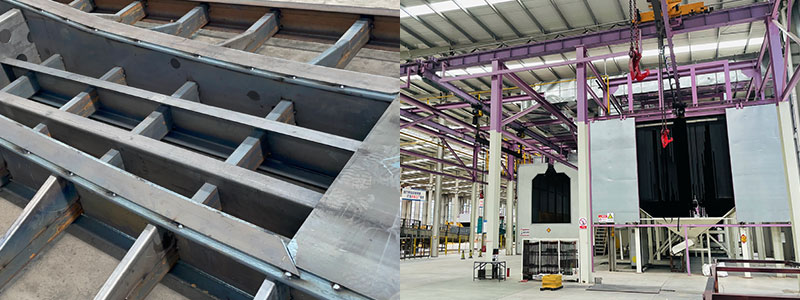

Core Manufacturing Processes
Automatic submerged arc welding: All major structural parts are processed using automated submerged arc welding equipment, ensuring uniform and full weld penetration with dense and defect-free weld seams. This effectively improves the overall structural strength and fatigue resistance of the frame, preventing deformation under long-term heavy loads and making it suitable for complex road conditions.
Electrophoretic painting process: Fully automated electrophoretic coating technology is used to achieve 360° coverage of the vehicle body without dead angles. The coating has extremely strong adhesion, is resistant to acid and alkali, anti-rust, anti-corrosion, and not easy to peel off. It can withstand harsh outdoor environments such as humidity, rain, and dust, providing long-term protection for the frame steel and delaying aging and corrosion.

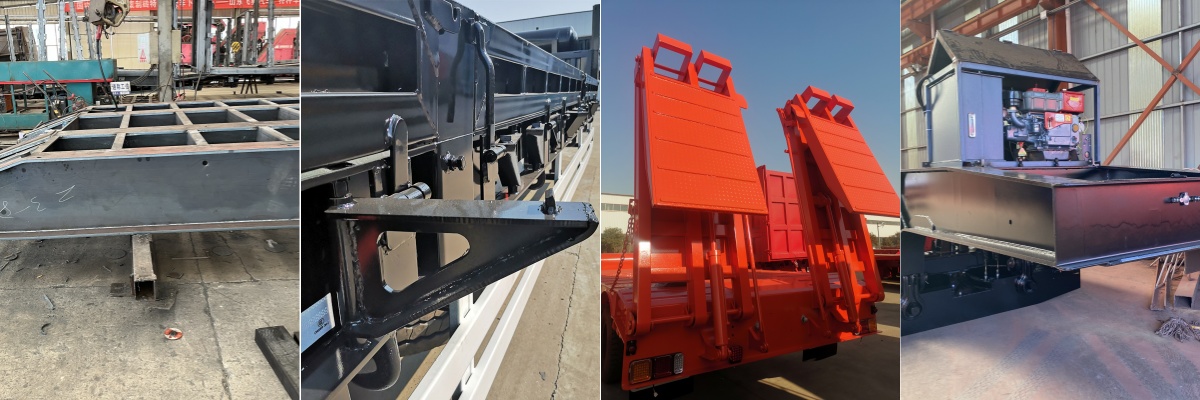

Product Features
Materials: The factory maintains long-term strategic cooperation with leading steel suppliers. Strict quality inspection is conducted upon material entry to ensure stable and reliable product quality from the source.
Components: The entire trailer is equipped with internationally recognized components such as FUWA/BPW axles, WABCO braking system, and JOST king pin, offering low failure rate, high stability, strong after-sales compatibility, and lower maintenance costs.
Gooseneck: Supports customization of detachable hydraulic gooseneck, with simple and labor-saving operation, greatly expanding the trailer’s transportation adaptability.
Ramps: Optional spring or hydraulic ramps with high load-bearing strength and stable rebound, making it convenient for self-propelled construction machinery to load and unload, significantly improving on-site efficiency.
Widened body: Equipped with customizable foldable widening components, suitable for transporting oversized construction machinery and heavy components, solving the problem of over-width transportation.

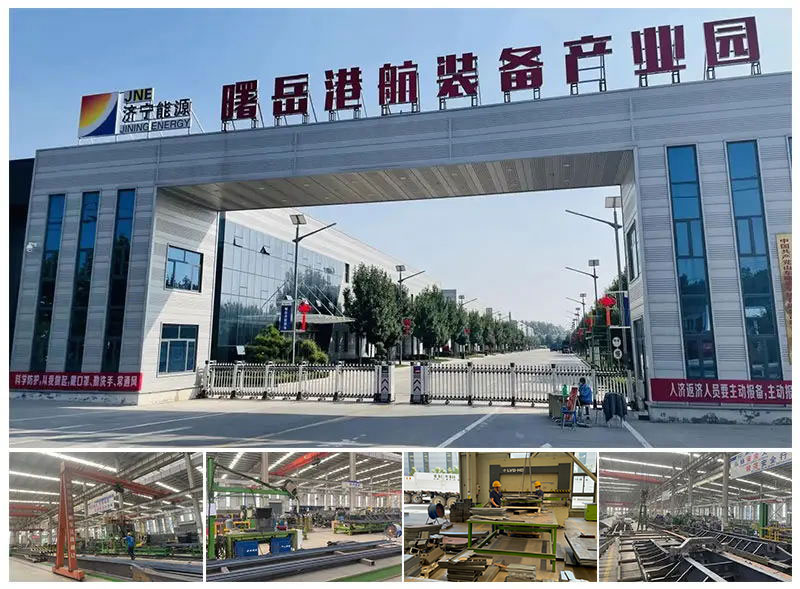

Factory Advantages
Competitive pricing: As a source factory with a complete production line, we eliminate middlemen, ensuring transparent pricing while strictly controlling product quality and delivery schedules.
After-sales service: The entire trailer comes with a one-year official warranty. Long-term supply of original spare parts ensures fast response to global maintenance and replacement needs, providing worry-free after-sales support.
Multiple payment methods: Supports mainstream international trade payment methods such as T/T and L/C, ensuring safe and compliant transactions suitable for global buyers.
Contact for Purchase
Looking to purchase a high-quality 3 axle lowbed semi trailer directly at a factory price? Or need customized configurations and accurate quotations? Feel free to contact us via WhatsApp at any time. We specialize in high-quality lowbed trailer manufacturing and customization, offering competitive factory pricing and one-on-one dedicated service to provide you with a professional and reliable one-stop procurement solution.
