3 Axle Skeleton Trailer for Sale
Vehicle Master is a leading semi-trailer manufacturer in China. This 3 axle skeleton trailer we produce offers outstanding performance and is sold at factory-direct prices. The trailer uses high-strength steel for the main beam, providing a solid and reliable structure. It is suitable for transporting 2×20ft containers, 1×40ft container, or 1×45ft container.
This 3 axle skeleton semi trailer is suitable for 40ft / 45ft length specifications. As a professional semi-trailer factory, we provide customization services, supporting 20–45ft length and 20–60 ton load capacity, with 2/3/4 axles available. Optional configurations include suspension systems, twist locks, extendable chassis, and more, to meet diverse operational requirements.
Applications
Container Transport: Compatible with multiple container sizes, with twist locks ensuring secure fixation.
Modular Building Transport: Suitable for transporting modular housing components and other integrated units, enabling convenient loading and unloading.
Long Material Transport: Easy to secure and bind steel coils, H-beams, pipes, and other extra-long, heavy materials.
Port Internal Transfer: Equipped with dedicated stanchions and guide rails, ideal for short-distance container dispatch operations within ports.

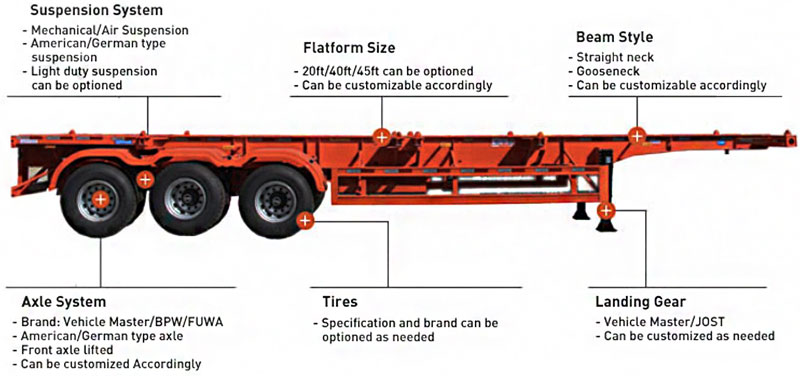

Specifications
Model: 3 Axle Skeleton Trailer
Main Beam Material: Q345/T700, high-strength steel
Standard Length: 12,500 mm (40 ft)
Customizable Length: 6,000 mm – 13,800 mm (20 ft – 45 ft)
Standard Width: 2,500 mm (customizable)
Standard Axles: 3 axles, 13/16 tons, FUWA/BPW
Customizable Axles: 2/3/4 axles
Customizable Load Range: 20–60 tons
Tire Specification: 12R22.5
Tire Quantity: 12 pieces (4 tires per axle, depending on axle number)
Rim: 9.00×22.5 × 12 pieces, steel/aluminum
Brake System: WABCO air brake + ABS
Suspension System: Mechanical suspension / Air suspension
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Ton Two Speed, JOST / Other Brand
Twist Lock: 4 sets / 12 sets
Price Range
As a semi-trailer manufacturer and dealer, the price range of our skeleton trailers is USD 6,000–15,000. The final price depends on factors such as main beam high-strength steel grade, length and load specification, axle configuration, production processes (welding and coating), twist lock and other customized components, as well as the customer’s purchase quantity.
If you want to customize a skeleton trailer that fully meets your needs, or are looking for a factory to obtain a better price, you can contact me via the website message board or WhatsApp(+86-18866100060).
Core Process

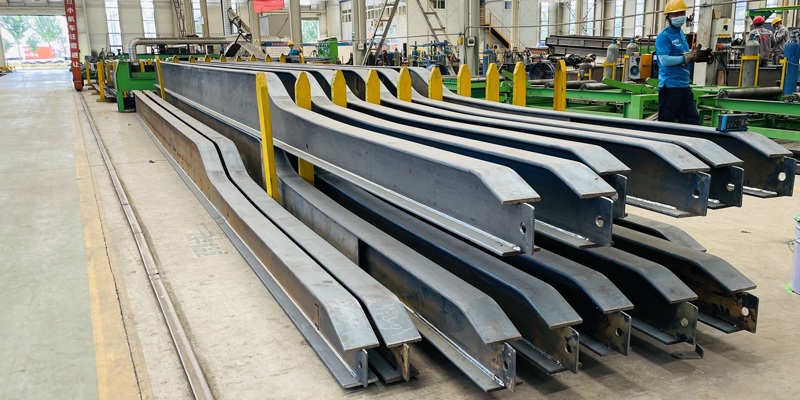

Welding: The main beam and core load-bearing structures adopt automatic submerged arc welding, which achieves deep penetration and high-quality continuous weld seams, ensuring structural strength. For complex joints and critical positions, experienced welders perform manual reinforcement welding. This dual welding process ensures the chassis is free of welding blind spots and defects, giving the product excellent fatigue resistance and a long service life.
Coating: We offer two coating processes. The polyurethane coating has a tough paint film with strong adhesion, providing excellent weather resistance and scratch resistance. The electrophoresis coating process uses electrochemical principles to evenly coat every corner of the chassis, including hard-to-reach areas such as the inner walls of steel tubes, forming a dense, seamless anti-rust protection layer. Both coating options effectively extend the trailer’s service life in complex operating environments.
Key Features
Extendable Option: Supports extendable length customization to accommodate different container sizes.
Main Beam Material: High-strength steel main beam with excellent strength, toughness, impact resistance, and deformation resistance.

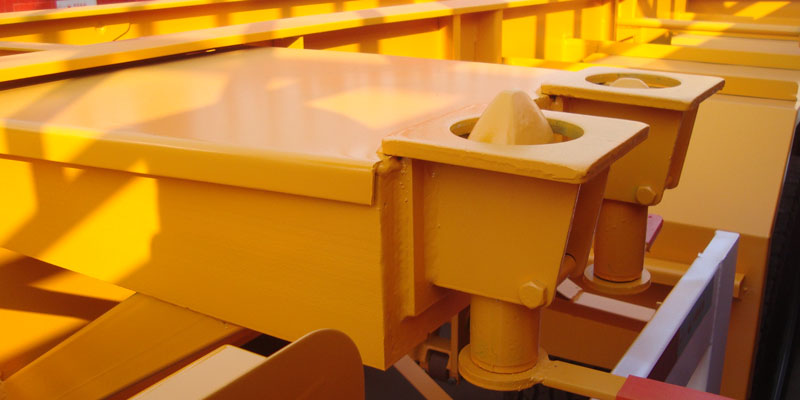

Twist Lock Configuration: Equipped with standard container twist locks to firmly secure containers and prevent shifting during transport.
Stanchions and Guide Rails: Convenient for loading and unloading, suitable for ports and yards requiring fast and frequent container handling operations.
Tires: Equipped with high-quality radial tires, offering strong load capacity and excellent wear resistance, suitable for long-distance transport and complex road conditions.

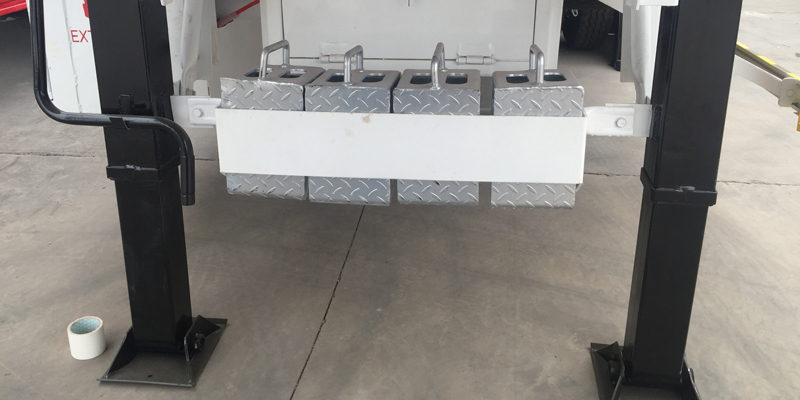

Landing Gear: Equipped with high-quality adjustable landing gear, featuring a robust structure and smooth, labor-saving lifting, ensuring safe loading and unloading operations.
Our Advantages
Factory Direct Sales: We are a semi-trailer factory and dealer, allowing customers to enjoy factory prices and communicate customization requirements directly with engineers.
After-Sales Service: One-year full-vehicle warranty and long-term stable supply of original standard spare parts, ensuring smooth operation throughout the vehicle’s life cycle.
Payment Methods: Flexible payment options including T/T and L/C to suit different customer transaction habits.

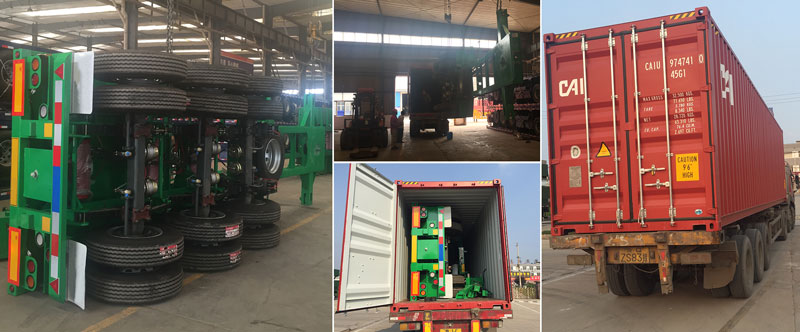

Worry-Free Transportation: With rich international shipping experience, we provide complete logistics solutions from China to the destination port, ensuring safe and on-time delivery.
Contact for Purchase
If you need a durable, reliable, and cost-effective skeleton trailer, manufacturer Vehicle Master is your best choice, offering factory-direct prices and professional customization services.
If you have purchasing needs or would like to obtain a free quotation, feel free to contact us at any time. We will respond promptly and provide high-quality service. You can contact us via the website message board or WhatsApp (+86-18866100060).
