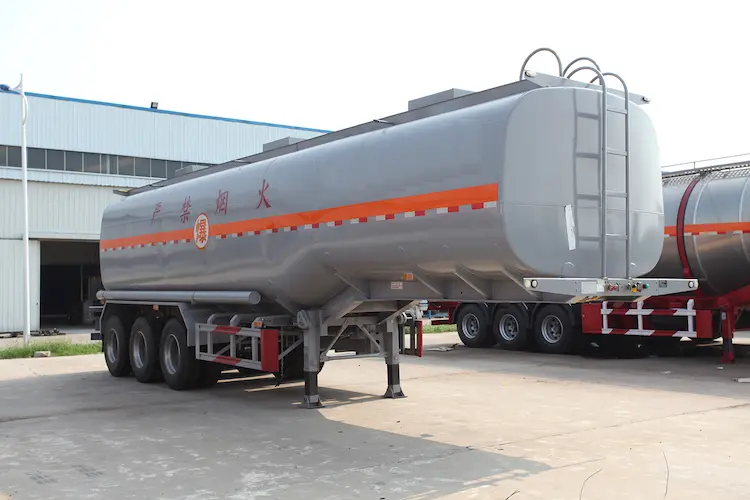

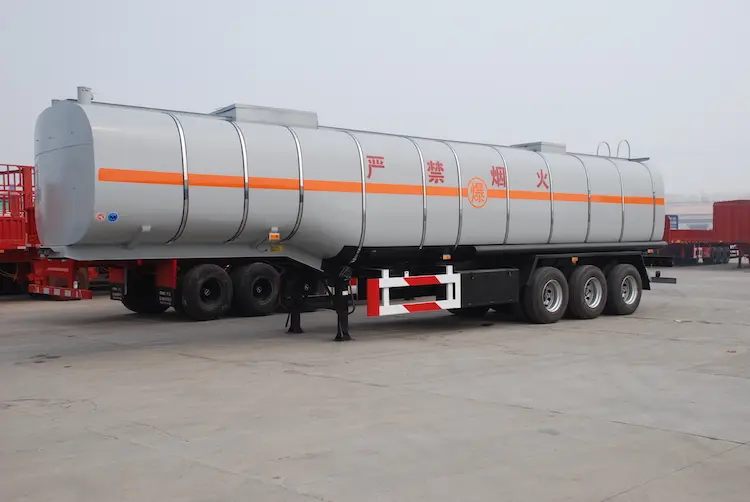

3 Axles 50000L Fuel Tanker Trailer

Production Time: Approximately 30 Working Days
Packaging: SKD/CKD
Shipping Method: Sea/Land
Material: Q345B (Customizable)
Axles: 1, 2, 3 (Customizable)
Warranty: 1 Year Warranty for Main Structure
Brand: Vehicle Master
Size: 50000L
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

50000L Fuel Tanker Trailer is the most commonly used volume. It uses 3Axles, 42 sturdy rib design for safety. We not only produce 50000L Tanker Trailer, but also customize other sizes for simultaneous multipurpose material transport.

We can also produce the tanker trailers for different liquid like Fuel, Petrol, Diesel, Crude oil, Bitumen, Palm oil, JET A-1, Water, Liquid chemical, Food oil etc. According to the Material, we have Carbon Steel / Stainless Steel / Aluminum Alloy diesel oil fuel tanker tank semi trailer. Here is the 50000L fuel tanker trailer, of course we can also produce trailers of other sizes.

Aluminum tanker trailer can transport more oil than carton steel tanker trailer. Tanker trailer will be inspected before painting ensure every detail in good condition.

According to clients' requirements, we can customize different volumes and compartments.

High quality 3 axle 50000L oil fuel tank semi trailer adopt advanced design concept. We also can produce the tanker trailers for different liquid like fuel, petrol, water, palm oil etc.

To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent oil leakage, when emergency happens.

50000L fuel tanker trailers Major parts and components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.

50000L Fuel Tanker Semi Trailer Parameter Details

These are the basic parameters of our 50000L oil tank trailer, because the order requirements are different, these parameters will be different.


50000L Fuel tanker semi trailer

Trailer Model

Round Shape or Ellipse

Outside Dimensions


Tare weight

About 8-12.8T

Total Volume



1.Q235B/Q345B carbon steel
  2.5XCT4aluminum5454 3.304 stainless steel

Tanker Body Material

1. 6mm/5mm Q235B/Q345B carbon steel
  2. 7mm/6mm 5XCT4 aluminum 5454
  3. 5mm/4mm 304 stainless steel


13T/16T, FUWA/BPW/HuaJing brand

Axle Number

2/3/4/ Axle or multi axle

Main Beam

Height: 450mm-520mm, upper plate thickness is   14mm-25mm,
  middle plate thickness is 8mm-12mm,
  down plate thickness is 16mm-25mm;
  Material is Q345 manganese steel .


12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan   be Optional)

King Pin

JOST brand 2.0 or 3.5 inch bolts type or Welding type

Support legs

JOST/FUWA/YAHUA brand or China brand 28ton(two speed or   single speed )

Rear ladder

Dismountable or foldaway


8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm

Spring leaf

8/10/12/16 pieces

Manhole Cover

2/3/4/5/6 piece Carbon steel API manhole cover ,500mm   European standards

Brake Chamber

6 double brake chamber

Electrical System

24V, 7core socket, lights according to European   standards


One tooling boxes ,Two spare tire carrier, Two fire   extinguisher

Other tools

A waterproof toolbox. (equipped with 1 unit Tire   spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual)

Discharge mouth

diameter is 280mm


7ways (7wire harness)

Advantages of Vehicle Master 50000L Fuel Tanker Trailer

  • 50000L fuel tanker trailer has Strong Steel structure

Steel frames are built with top-class hot rolled or rolled steel plate, automatically welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

  • Polyurethane combination paint

The tanker is shot blasted with primer once and polyurethane combination paint twice. Strong resistance and strong adhesion.

  • Rational analysis design

Adhere to the concept of even stress on the 50000L fuel tanker trailer frame. 42 sturdy rib design to ensure the safety and carrying capacity of the trailer.

  • European System

Mature and reliable European system Explosion-proof manhole Anti-overflow Oil and gas recovery Bottom loading.

According to clients' requirements, we can customize different volume and compartment. Because the volume of 50000L is one of the most commonly used sizes in the market, we are very good at and recommend it to you.

According to the Material, we have 50000L Carbon Steel Tanker Trailer, 50000L Stainless Steel Tank Semi Trailer and 50000L Aluminum Alloy tanker Truck Trailer.

We will meet the acme of perfection to serve and provide more details , price ,catalog, drawing ,video for you !

The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.

Packaging & logistics


Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO

(1) Wax spray anti-corrosion:

Because the 50000L Fuel Tanker Trailer is very large. If it is splashed with a little seawater, it may be corroded and reduce its lifespan. Therefore, do wax spray process to against the trailer body suffer seawater corrosion during shipping


Stable fixing with steel wire, to protect the trailer during shipping

(3) Shipping:

Reliable logistic service from famous freight supplier makes transport process safely and promptly


This tubing transport trailer is from 3 Axles. 50000L universal volume trailer. If you have customization needs, change to 4 Axles, and we will customize it for you.

50000L Fuel Tanker Trailer Market

The 50000L fuel tanker trailer market is a sub-segment of the broader commercial vehicle industry, which is primarily involved in the transportation of goods across long distances. Fuel tanker trailers are specialized vehicles that are designed to transport large quantities of fuel or oil products from one location to another.

The demand for 50000L fuel tanker trailers is primarily driven by the growth of the oil and gas industry and the increasing need for efficient transportation of fuel and oil products. These trailers are typically used by oil and gas companies, fuel distributors, and other businesses involved in the transportation of petroleum products.

In recent years, there has been a significant increase in demand for fuel tanker trailers due to the growth of the e-commerce industry and the consequent rise in demand for transportation services. As more businesses move towards e-commerce, the need for efficient and reliable transportation of goods becomes increasingly important, and fuel tanker trailers play a vital role in meeting this demand.

The market for 50000L fuel tanker trailers is highly competitive, with numerous manufacturers and suppliers competing for market share. Key players in the market include CIMC, Wabash National, Schmitz Cargobull, and Hyundai Translead, among others. These companies are continually innovating and improving their products to meet the growing demands of their customers.

The market for fuel tanker trailers is also subject to various regulatory requirements, including safety and environmental regulations, which can affect the demand for these products. As such, manufacturers must ensure that their products meet these requirements to remain competitive in the market.

In conclusion, the 50000L fuel tanker trailer market is an important segment of the commercial vehicle industry, driven by the growth of the oil and gas industry and the increasing demand for efficient transportation services. With a highly competitive market and strict regulatory requirements, manufacturers must continually innovate and improve their products to remain competitive and meet the needs of their customers.
