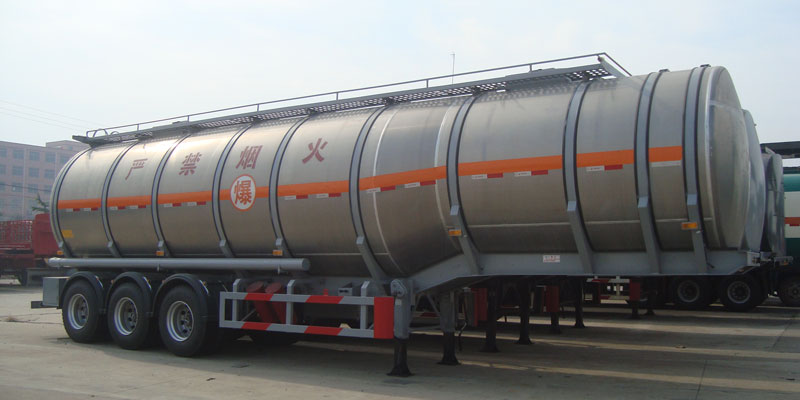

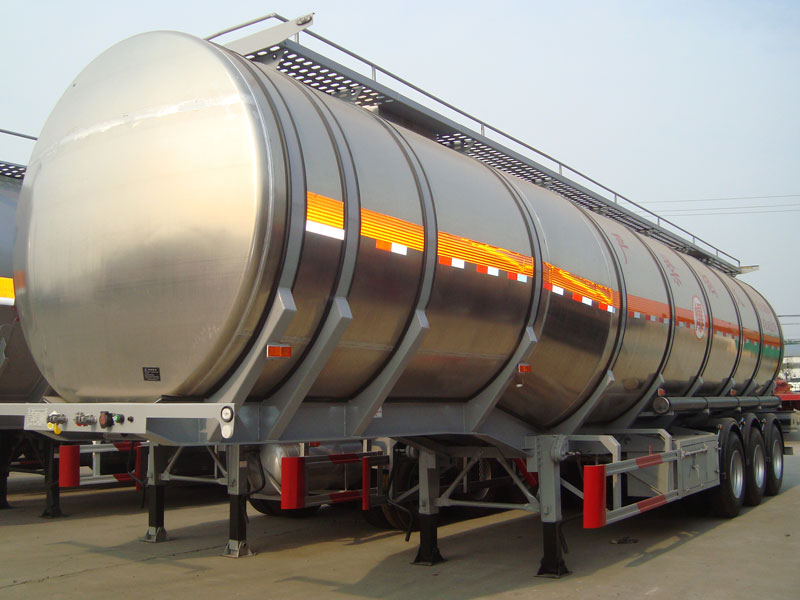

32000L Chemical Tanker Trailer for Sale
This 32000L chemical tanker trailer is manufactured by Vehicle Master. The tank is built with stainless steel or aluminum material and combined with fully automatic robotic welding technology, delivering outstanding durability as well as superior sealing and corrosion resistance. As a semi-trailer factory, we offer this chemical tanker trailer at factory-direct prices.
This chemical tanker trailer supports comprehensive customization. The capacity can be adjusted from 20,000 to 60,000 liters and configured with 2/3/4 axles. Tank materials are available in stainless steel or aluminum, with 1–9 compartments customizable to meet the requirement of transporting different liquids in one vehicle. In addition, special functions such as insulation layers and heating systems can be customized according to actual needs.
Application
Chemical Product Transportation: Transporting various acid and alkali solutions, liquid additives, and other industrial chemical products.
Food-Grade Liquid Transfer: Suitable for edible liquids such as fruit juice and dairy products.
High-Temperature Asphalt Delivery: Carrying molten asphalt, with insulation and heating systems maintaining fluidity.
Petroleum Product Transportation: Safely transporting diesel, lubricating oil, base oil, and various petrochemical products.
Specifications
Capacity: 32000L (32 CBM)
Customizable Capacity: 20000–60000L (20–60 CBM)
Axle Configuration: 3 axles (2/4 axles optional)
Axle Specification: 13/16 tons, FUWA/BPW
Tank Material: Stainless steel 304/316L, aluminum alloy
Tank Thickness: 6–10 mm (depending on material and medium)
Number of Compartments: 1–9 compartments (customizable)
Insulation Layer: 50–100 mm polyurethane (optional)
Heating Method: Steam heating / Electric heating (optional)
Safety Devices: Overflow valve, emergency shut-off valve, explosion-proof manhole cover
Brake System: WABCO dual-circuit air brake (ABS optional)
Tires: 12R22.5 / 11.00R20
Number of Tires: 12 tires (4 tires per axle)
King Pin: #50 (2") / #90 (3.5")
Landing Gear: 28 Tons Two Speed
Price Range
As a semi-trailer manufacturer and distributor, the price range of our chemical tanker trailers is USD 12,000–30,000. Pricing factors include different material costs, pressure ratings, and polishing grade requirements, which directly affect pricing. The number of compartments, insulation and heating systems, pumping system power, axle quantity, suspension type (air suspension is more expensive), as well as fully non-standard dimensions or structural designs will all be reflected in the final quotation.
If you want to obtain more detailed customization specifications or purchase this chemical tanker trailer at factory price, please contact us via website message or WhatsApp (+86-18866100060).

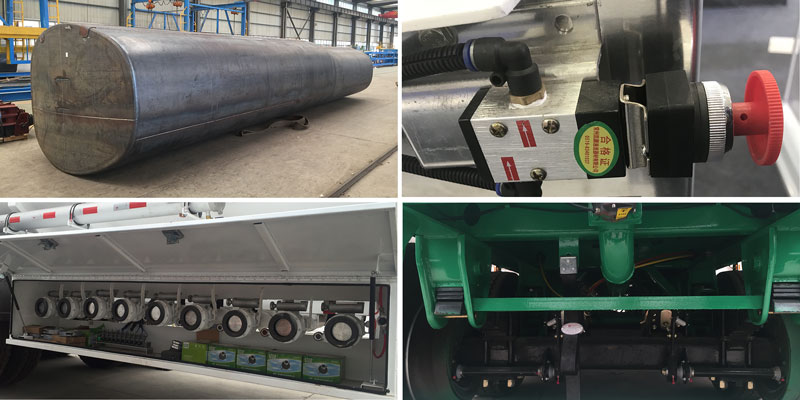

Core Processes

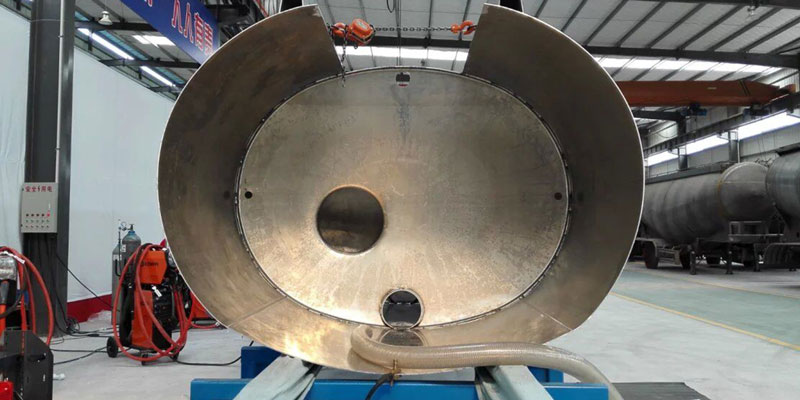

Welding: The tank adopts fully automatic robotic welding to ensure extreme precision and consistency in welding path, speed, and parameters. This eliminates fluctuations caused by manual welding, ensuring that every circumferential and longitudinal weld achieves full penetration with a smooth and uniform finish, delivering excellent durability and sealing performance.
Painting: A polyurethane coating system is used. Through multi-layer spraying and baking, a dense, tough, and elastic composite coating is formed. It offers excellent scratch resistance and corrosion resistance, effectively withstanding impacts during loading/unloading and long-distance transportation, as well as chemical vapors and salt spray corrosion, keeping the tank’s appearance and anti-corrosion performance long-lasting.

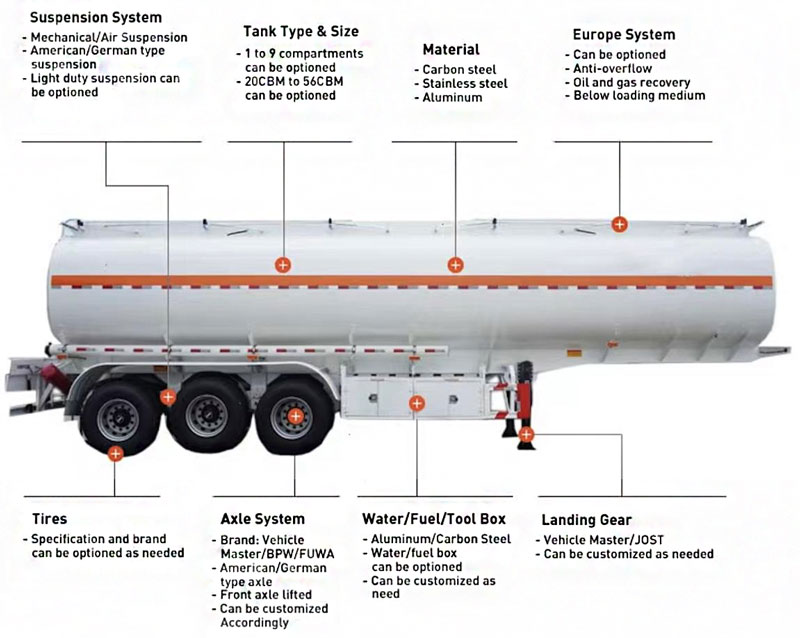

Main Features
Material Customization: Stainless steel and aluminum options are available. Stainless steel 304/316L offers excellent corrosion resistance and is suitable for acids, alkalis, and food-grade liquids; aluminum alloy is lightweight and ideal for petroleum product transportation.
Multi-Compartment Design: 1–9 compartments can be flexibly customized, allowing multiple different chemical media to be transported simultaneously while preventing cross-contamination.
Pumping System: Corrosion-resistant pumping systems are available, with flow-contact components made of special alloy materials capable of handling corrosive media such as acids and alkalis.
Overflow Protection: Standard high-sensitivity overflow valves automatically shut off inflow when the liquid reaches the rated level.
Suspension System: Mechanical suspension and air suspension options are available to reduce road impact on the tank, protect precision components, and extend service life.
Insulation Function: High-density polyurethane insulation with low thermal conductivity effectively maintains liquid temperature inside the tank.
Heating System: Steam or electric heating options are available, providing precise temperature control to prevent cargo solidification after cooling.

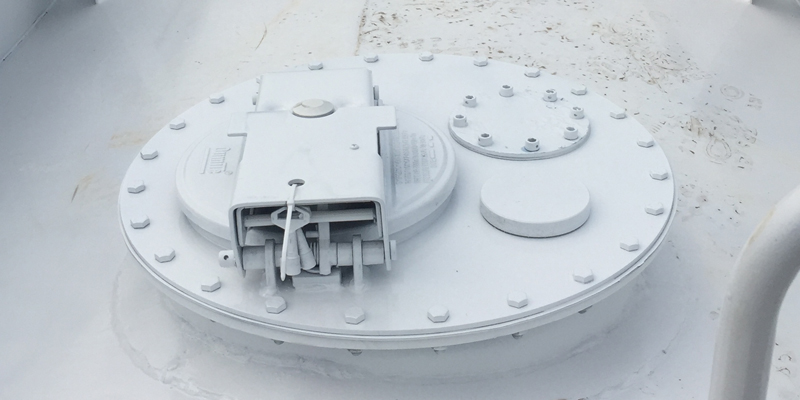

Explosion-Proof Manhole Cover: Sealed design allows easy opening, inspection, and cleaning, providing a safe operating platform for personnel.
Our Advantages
Factory Price Advantage: As a semi-trailer factory, purchasing directly from us ensures factory pricing and highly competitive ex-factory costs.
Free Customization: Based on transported media and capacity requirements, we provide free customization for materials, compartments, and functional configurations.
Warranty Assurance: One-year warranty from delivery date, covering material and manufacturing defects for peace of mind.
Lifetime Spare Parts Supply: We guarantee continuous and fast supply of original spare parts along with remote technical support.
Contact Us
If you have customization needs for chemical, food, or other special liquid transportation, or want to purchase a high-quality chemical tanker trailer at factory price, please contact us immediately. Our professional engineering team will provide configuration consultation, real-time quotations, factory visits, and full technical support. You may contact us via website message or WhatsApp (+86-18866100060).
FAQ
Q1: What is the service life of the tank when transporting highly corrosive media?
A: Using stainless steel 316L combined with anti-corrosion coating, the tank service life can reach 8–10 years under proper use and maintenance, far exceeding ordinary material tanks and significantly reducing replacement costs.
Q2: For multi-compartment tankers, is each compartment’s pumping system independent?
A: Yes. Each compartment is equipped with an independent pumping pipeline and control valves, allowing separate loading and unloading operations and preventing cross-contamination between different media, ensuring transport purity.
Q3: How should I choose between electric heating and steam heating?
A: Steam heating is recommended when a stable steam source is available due to lower operating costs. Electric heating is suitable for scenarios without steam sources or long-distance transport, offering flexible use via onboard generators or external power supply.
Q4: How is temperature controlled in the insulation and heating system?
A: We can integrate an intelligent temperature control unit into the heating system. Through feedback from multiple temperature sensors inside the tank, the system automatically starts or stops heating devices (such as electric heaters) or adjusts heat medium flow to maintain the medium within your preset temperature range.
Q5: Does the tank have convenient designs for regular cleaning?
A: The tank is equipped with quick-open cleaning ports and internal spray systems, allowing connection to high-pressure cleaning equipment for comprehensive internal washing. This ensures efficient and thorough cleaning while reducing labor cost and cleaning time.
