This is a best price 4 axle 100 ton lowbed semi trailer. As we are a semi trailer manufacturer, we reduce manufacturing costs through large-scale procurement of raw materials and components, allowing customers to obtain a lowbed semi trailer with higher investment value.
If this 4 axle 100 ton lowbed semi trailer does not meet your requirements, we can provide free customization solutions. We support customized loads from 30–150 tons, equipped with 2/3/4/5 axles from brands such as BPW and FUWA according to the load. We also offer configurations including detachable gooseneck, hydraulic suspension, widening parts, and more to meet your specific operating needs.
Applications
Construction Machinery Transportation: Transporting excavators, crushers, pavers, and other heavy construction equipment.
Wind Power Equipment Transportation: Carrying wind turbine blades, tower sections, nacelles, and other large wind power components.
Building Component Transportation: Delivering prefabricated bridges, steel box girders, large columns, and other construction materials.
Industrial Equipment Relocation: Moving pressure vessels, generator sets, production lines, and other factory equipment.
Special Heavy Cargo Transportation: Transporting transformers, reactors, tunnel boring machines, and other oversized cargo.
Specifications
Product Name: 4 Axle 100 Ton Lowbed Semi Trailer
Axles: 4 axles, configurable with 2/3/5 axles or multi-axles according to load
Axle Specification: 13/16/20 tons, FUWA/BPW (steering axle option available)
Maximum Load: 100 tons
Customizable Load: 30–150 tons
Length: Generally 10–15 meters
Width: Generally 2.5–3 meters (widening parts available)
Gooseneck: Fixed / Detachable
Main Beam Material: Q345/T700 high-strength steel
Tire: 12R22.5 / 8.25R20
Tire Type: Exposed tires or covered tires
Tire Quantity: 16 pieces, 4 tires per axle
Spare Tire: Generally 2 pieces
Suspension: Mechanical / Air / Hydraulic
Ramp: Spring / Hydraulic
King Pin: #50 (2") / #90 (3.5")
Landing Gear: 28 Tons Two Speed
Painting: Polyurethane combination painting
Price Range
As a source factory for semi trailers, the price range of our lowbed semi trailers is USD 10,000–50,000.
Factors affecting the price
Different loads and lengths require different quantities or grades of raw materials.
The use of detachable gooseneck, widening parts, hydraulic suspension, steering axles, and other advanced components will increase costs.
Order quantity affects pricing; larger quantities enjoy more favorable prices.
Core Advantages of Our Semi Trailers

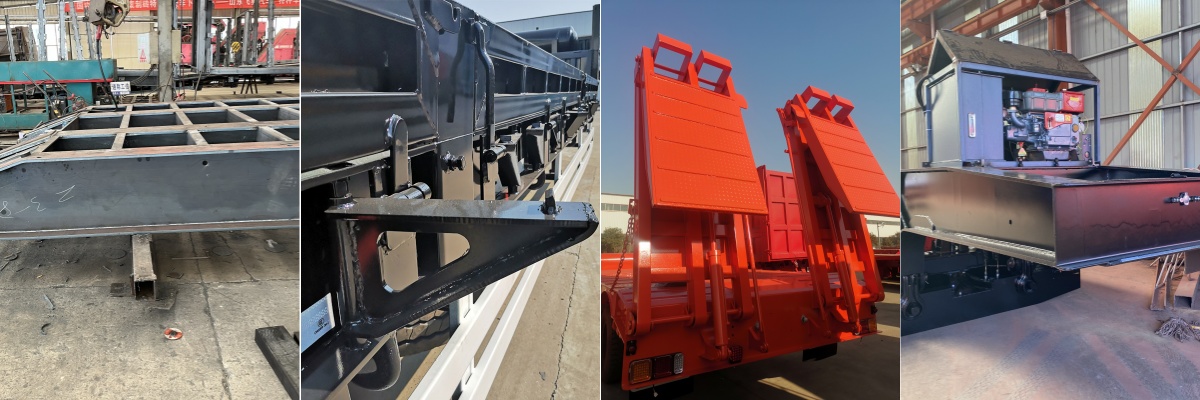

Welding: We adopt automatic submerged arc welding combined with manual repair welding. Automated welding ensures excellent durability, while manual repair welding is used for complex joints. After welding, strict inspections are carried out to ensure durability under extreme loads.
Painting: Polyurethane combination painting process is used. The paint surface is smooth and even, with a thickness exceeding industry standards, offering excellent scratch resistance and corrosion resistance, effectively extending the service life of the lowbed semi trailer.

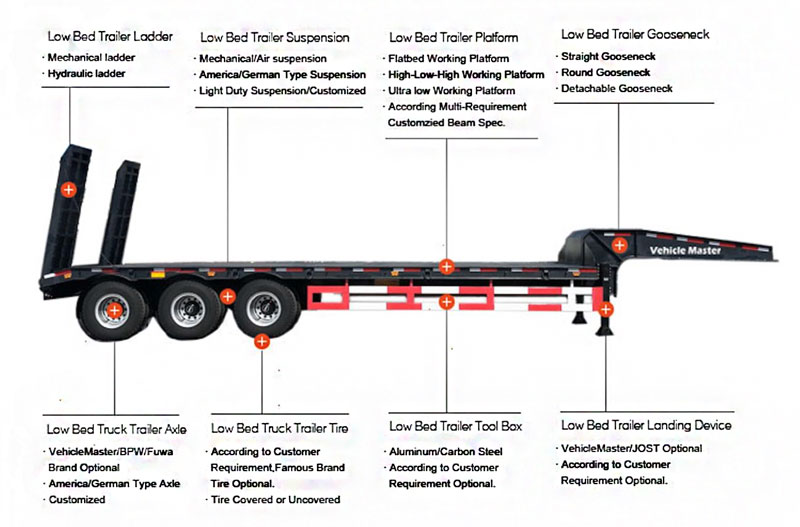

Main Features
Load Customization: Free customization for loads ranging from 30–150 tons according to customer requirements.
Ramp: Convenient for loading and unloading self-propelled equipment, offering better cost-effectiveness.

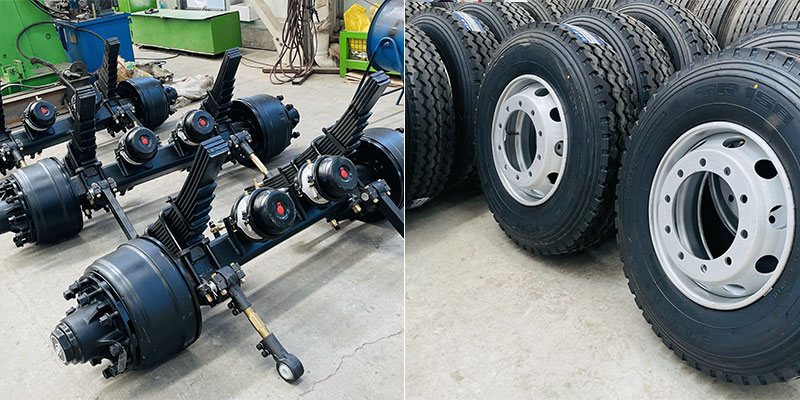

Axles: German-type or American-type axles available, with 13/16/20 ton axle options.
Widening Components: Foldable widening components for temporary transportation of extra-wide cargo.
Gooseneck: Hydraulic detachable gooseneck available, easy to operate and can be handled by one person.
Tires: Exposed or covered tire options available, with both standard tires and small tires (8.25R20) offered.
Why Choose Our Lowbed Semi Trailer?
Competitive Pricing: As a semi trailer factory, we can provide more competitive prices.
Customization Service: Direct communication with engineers to accurately understand and meet your requirements.
Flexible Payment Methods: Support TT, Letter of Credit, and other payment methods.
Reliable After-Sales Service: One-year warranty and lifetime spare parts supply.
Contact Us to Purchase or Visit the Factory
If you are looking for a high-quality, reasonably priced lowbed semi trailer source factory that can meet customization needs, we are your best choice.
We are a factory with 40 years of semi trailer manufacturing experience. Purchasing lowbed semi trailers directly from us allows you to enjoy the maximum price advantage. If you have purchasing or customization requirements, or would like to visit our factory, please contact us immediately. Our professional team will be ready to serve you.
