4 Axle 80 Ton Heavy Duty Low Bed Trailer for Sale
This 4 Axle 80 Ton Heavy Duty Low Bed Trailer is manufactured by Vehicle Master and is sold at a factory price. Our low bed trailer uses higher-quality steel than ordinary semi-trailers, combined with precision welding technology, resulting in excellent quality and strong load-bearing capacity.
As a semi-trailer factory, this 4 Axle 80 Ton Heavy Duty Low Bed Trailer supports customization on demand. The payload can be adjusted between 30-150 tons, with axle configurations of 2/3/4/5 axles depending on the load. Optional steering axles, hydraulic suspension, and detachable gooseneck are also available to meet different heavy-duty loading and transportation needs, flexibly adapting to complex operating environments.
Applications
Heavy Equipment Transport: Used for the overall transportation of mining excavators, crushers, and other large engineering equipment.
Engineering Machinery Transfer: Stable transport of bulldozers, rollers, loaders, and other construction vehicles.
Large Component Transport: Suitable for transporting oversized components such as bridge steel structures, wind power equipment, and steel frames.
Heavy Industrial Machinery Transfer: Transporting large machine tools and generator sets with low deck height for easy loading and unloading.
Large Chemical Equipment Transport: Carrying reactors and storage tanks, ensuring the safety of large equipment during transportation.
Specifications
Rated Load: 80 Tons (customizable from 30-150 Tons)
Axles: 4 Axles (upgradeable to 2/3/5 axles), 13/16 tons per axle
Main Beam Material: Q345/T700
Suspension System: Mechanical / Air / Hydraulic Suspension
Goose Neck Detachable: Available
Multi-Axles: Available
Steering Axles: Available
Widened Parts: Available
Tire Style: Covered or Uncovered
Tire Specification: 12R22.5 / 8.25R20 (8/12/16/20 Pieces)
Hydraulic System: Dual-circuit hydraulic control system (with pressure protection)
Ladder: Mechanical Spring / Hydraulic
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand, Changeable
Landing Gear: 28 Tons Two Speed, JOST / Other Brand
Tool Box: Steel / Aluminum
Painting: Polyurethane combination painting
Price Range
The price of this heavy-duty lowbed semi trailer ranges from USD 11,000 to USD 50,000. The specific price depends on several factors: load capacity, axle configuration, detachable gooseneck availability, suspension type, steering axle options, deck width and widening components, as well as customization level and safety configuration.
If you want to customize and purchase a satisfactory low bed trailer or get a free factory quotation, please contact us via website message or WhatsApp (+86-18866100060).
Core Manufacturing Processes
Welding: Robots are used to weld the main beams, suspension brackets, connecting plates, and key load-bearing nodes. Complex or irregularly shaped welds are meticulously repaired manually. This combined process enhances the vehicle's torsional and load-bearing capacity, preventing deformation even when carrying heavy cargo for extended periods.
Painting: Using a polyurethane combination paint system, multi-layer spraying forms a strong and durable protective coating. This coating has excellent elasticity and hardness, effectively resisting stone chips, scratches, and other physical damage during transportation, ensuring the trailer maintains its appearance throughout its service life.

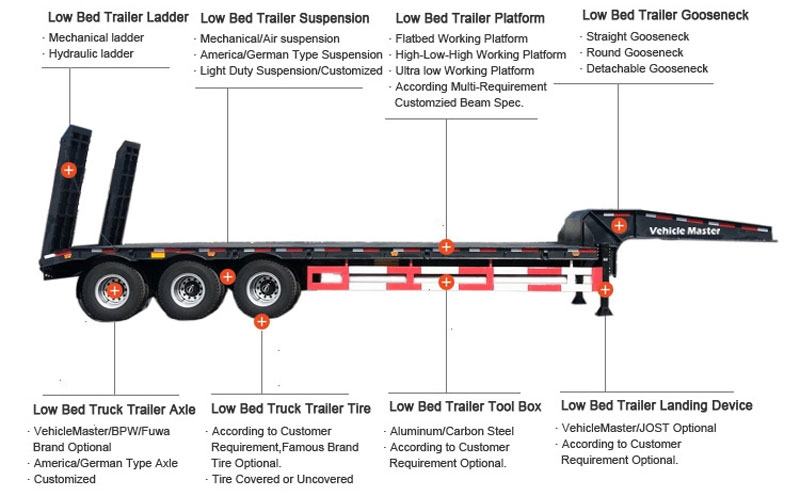

Main Features
Main Beam Material: Built with Q345/T700 high-strength steel for excellent bending and torsion resistance, ensuring safer transport of heavy equipment.
Detachable Gooseneck: Equipped with a detachable gooseneck, allowing quick lowering of the loading platform for easier loading and unloading of ultra-heavy equipment, significantly improving work efficiency.
Suspension Options: Offers mechanical, air, and hydraulic suspension to adapt to different road conditions and improve transportation stability.
Steering Axle: Optional steering axle system effectively reduces turning radius, greatly improving maneuverability and passability in narrow or complex sites.
Widening Components: Optional widening components allow the platform width to be adjusted to accommodate oversized cargo transportation.
Ladder: Equipped with spring or hydraulic ladders for easy loading and unloading of excavators and similar machinery, providing simple and labor-saving operation.
Shipping
Depending on the trailer specifications, shipping methods include container or bulk transport. Detachable parts, core components, and trailer corners are protected with shockproof foam wrapping to prevent collision damage during shipping.
After confirming the destination port with the customer, we formulate an appropriate transportation plan, combining road, rail, sea, or multimodal transport as needed, with full tracking to ensure safe and timely delivery.
Contact Us
Vehicle Master is a leading low bed trailer factory. When purchasing from us, you’ll get factory-direct prices, higher steel quality standards, and more favorable configurations than the market average.
As a professional semi-trailer manufacturer, we also provide customization and warranty services. For detailed configurations or quotations, feel free to contact us anytime via website message or WhatsApp (+86-18866100060).
FAQ
Q1: Can this low bed trailer really carry 80 tons?
A: Absolutely. We use high-quality steel and reinforced structural design to ensure excellent stability and safety under an 80-ton rated load, meeting heavy equipment transportation requirements.
Q2: What are the advantages of hydraulic suspension compared with mechanical suspension for heavy transport?
A: Hydraulic suspension can adjust the platform height and damping strength in real time through the hydraulic system, adapting to different loading platforms and improving operational flexibility.
Q3: Does the detachable gooseneck require professional technicians for installation and removal?
A: No professional technicians are required. Ordinary operators can complete it after simple training. The gooseneck uses a hydraulic quick-connect structure, allowing one-button control for disassembly and installation via the control panel, with no extra tools needed.
Q4: How long does transportation to our country take?
A: The delivery time depends on the destination and shipping method. After you provide a specific address, our logistics team will estimate the approximate duration and provide a detailed logistics plan.
Q5: Do you provide operation training?
A: Yes, we offer comprehensive training on operation, maintenance, and servicing to ensure your operators can use the equipment correctly and maximize vehicle performance.
