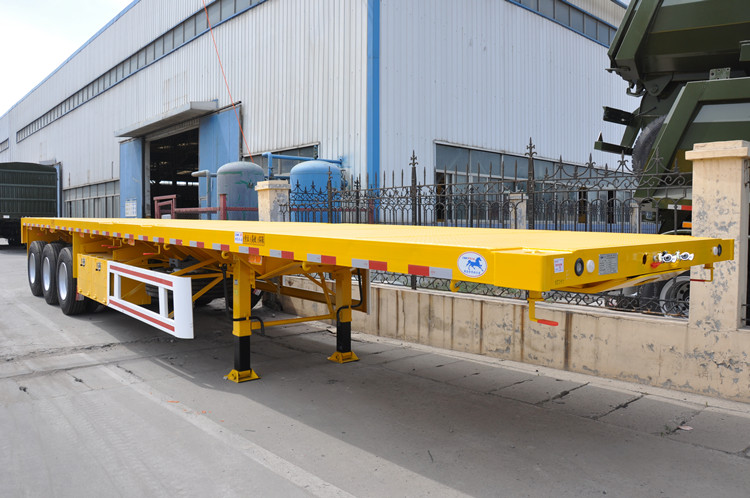

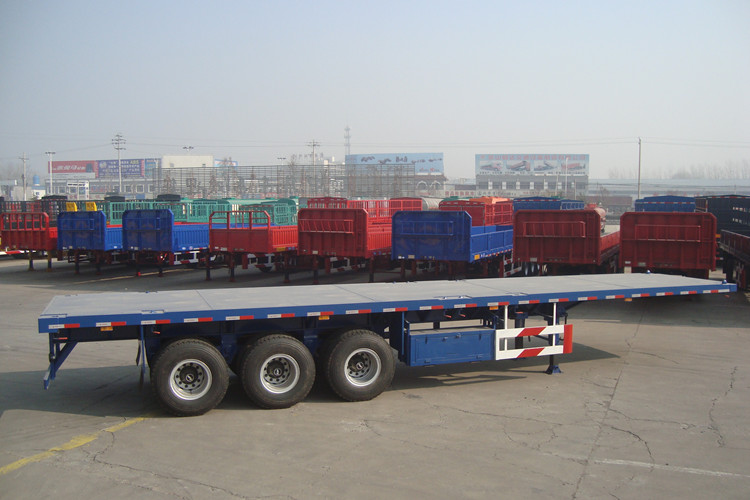

40FT Container flatbed trailers are also called container chassis trailers. Container flatbed trailers are mainly used in ports, logistics, docks and other places. Container flatbed trailers are used to transport goods with containers of more than 20 feet, 40 feet, and 53 feet as the carrier. The trailer is a flatbed semi-trailer type.

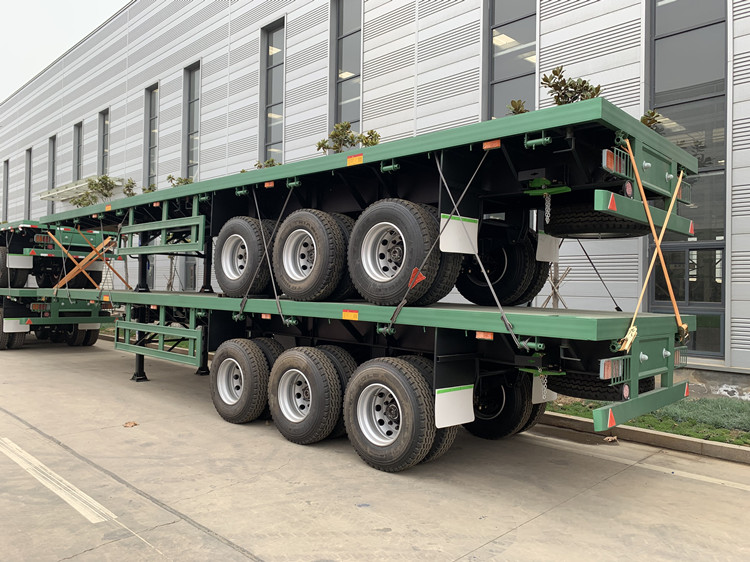

40ft container flatbed trailers are the most common and popular types. The 40ft container flatbed trailer is well sold in Africa. Besides containers, 40FT container flatbed trailers are currently applicable to the pull-out design for transporting steel profiles, steel bars, PVC pipe fittings, etc.
Dimension Overview | |
Length: | 12,500mm |
Width: | 2,500mm |
Height: | 1,550mm |
Structure Spec. | |
Main beam | Material Q345B. |
Fabricated “H” beam height 250/ 500mm | |
Top flange thickness 12mm | |
Middle web thickness 6mm | |
Bottom flange thickness 14mm | |
Welding standard | National Level Welding Supervisor.Meanwhile cooperate automatic welding machine.And More 30 minutes per process than normal welding time. Ensure the best welding results. |
Painting | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um |
Main Parts of Trailer | |
Suspension: | China heavy duty spring suspension, leaf spring10pcs*13mm*90mm |
Axle: | FUWA brand, 3pcs*13 ton capacity |
Brake system: | Dual line pneumatic brake, SAE hose and connector, without ABS |
Brake chamber: | 6 units T30/30 spring brake chambers |
Tire and rim: | Double coin, 12R22.5, 12pcs, 9.0 steel disc wheel, 10 holes, 12 pcs. |
King pin | 50# or 90# bolted type |
Twist lock | 12 sets container twist locks |
Landing gear: | heavy duty 28T two speeds telescopic manual landing gear |
Electrical System | |
Voltage: | 24 Volt |
Receptacle: | 7 way socket SAE standard, China |
Front marker lamp: | White |
Side marker lamp: | White & Red |
Rear lamp: | Red |
Turn signal lamp: | Amber |
Reflector: | Per customer requirement |
Wiring: | Electric cable protected by PVC conduit on main frame |
Spare Parts | |
Mud guard: | Steel mud guard |
Spare wheel carriers: | 2 pcs |
Tool box: | 1 pc |
Rope hook | 26 pieces |
The configuration above of 40ft container flatbed trailers is our standard one, we can also customize the specification based on our customer’s requirements.
Set up Electrophoresis Paint Production Line to promote vehicle products promotion.Electrophoretic spraying as be water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film.
The electrophoresis paint is much better than traditional painting:
Beauty and wonderful appearance performance than ordinary painting.
Much more corrosion-resistant than ordinary painting.
Much more wear-resistant than ordinary painting.
Much more using-time than ordinary painting.
As the pictures show above, the flatbed container trailers suspension in the first picture is anti-eating tire suspension. This type of suspension can prevent tires from deviation and wearout after loading. The flatbed container trailers suspension in the second picture is the traditonal common type suspension which is easy to make tires broken.
