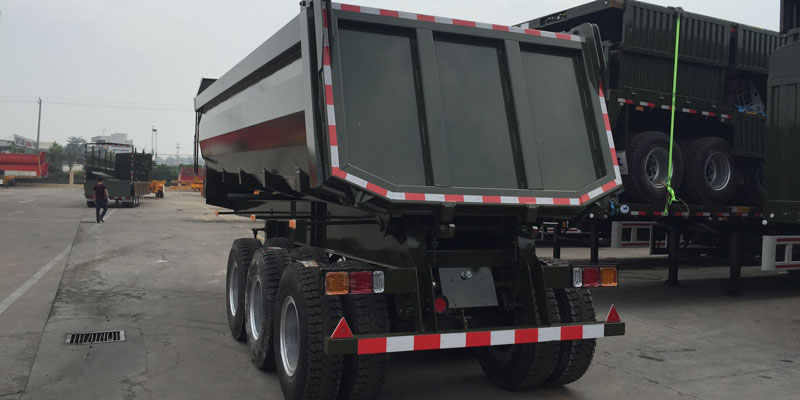

45 Ton Coal Dump Trailer for Sale
This is a 45 ton coal dump trailer for sale, and you can enjoy factory price discounts when purchasing through us. As a semi-trailer manufacturer, our coal dump trailers are made from high-quality steel and advanced production technology. They are impact-resistant, wear-resistant, provide a large dumping angle with minimal residue, and serve as an efficient transportation solution for coal mines and mining operations.
We provide various customization options according to customer needs. Load capacity can be customized from 30–100 tons, with optional 2/3/4/5 axles based on load requirements, as well as different hydraulic cylinder power. We also offer customization for wear-resistant liners, suspension, tires, cargo box specifications, and other options to ensure perfect suitability for specific operating needs.
Applications
Coal Transportation: Professional transportation of coal to meet the energy needs of power plants, steel mills, etc.
Mining Material Transport: Suitable for efficient transportation of various ores and mine powders.
Construction Material Transportation: Specially designed for carrying sand, gravel, and construction waste.
Agricultural Product Transport: Supports bulk transportation of grain, feed, and other agricultural products.

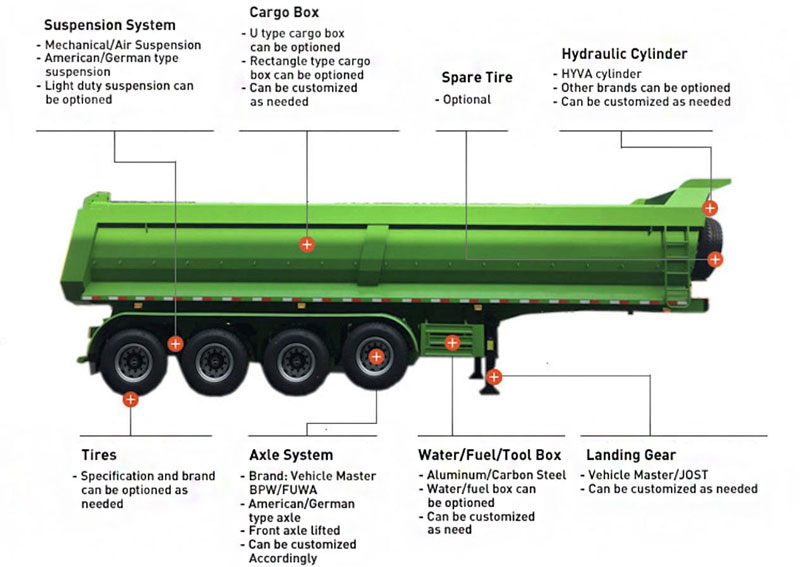

Specifications
Load Capacity: 45 tons (customizable 30–100 tons)
Axle Configuration: 3 axles, 13/16 tons per axle, FUWA/BPW (optional 2/4/5 axles based on load)
Dump Style: Rear Dump
Cylinder: HYVA (model according to the length of cargo box)
Dumping Angle: ≥45°
Floor Plate Thickness: 5mm
Cargo Box Thickness: 4mm
Cargo Style: Rectangular / Round
Front Axle Lifting: Available
Main Beam Material: Q345/T700

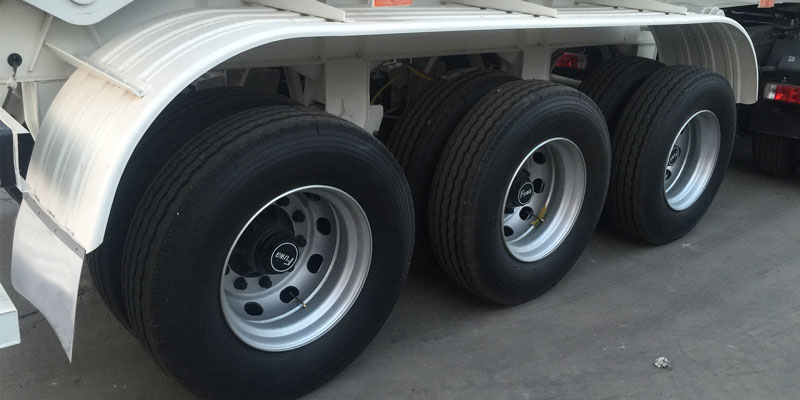

Tire: 11.00R20 / 12R22.5 * 12 pieces (4 tires per axle)
Brake System: WABCO air brake + ABS anti-lock system
Suspension: Mechanical / Airbag
Landing Gear: 28T two-speed, JOST
King Pin: #50(2") / #90(3.5"), JOST / Other Brand
Price Range
The price range of our coal dump trailer is from 9,000 USD to 20,000 USD. The price difference mainly depends on load capacity, material grade, production standards, configuration options, and level of customization. Higher configurations result in higher prices. We will provide the most cost-effective configuration solution according to your specific needs.
If you want to customize a dump trailer or purchase at factory price, please contact us through our website or via WhatsApp.

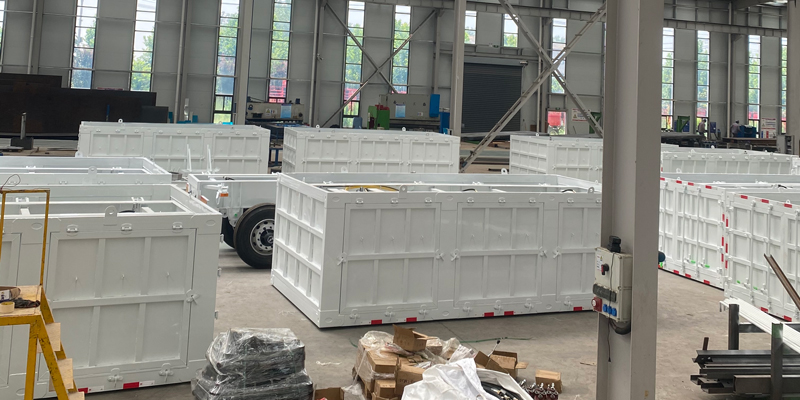

Core Manufacturing Process
Welding: We use a combination of automatic submerged arc welding and manual welding. The main structure is welded using automatic submerged arc welding, ensuring uniform weld penetration and high strength, preventing cracking under heavy loads. Experienced welders perform reinforcement welding on key load-bearing areas and complex structural nodes to ensure every welding point reaches the best quality.
Painting: Using polyurethane composite paint technology, intelligent painting equipment evenly covers the trailer with primer, forming an excellent anti-rust protective layer. On this basis, multiple layers of topcoat are applied to create a highly weather-resistant composite coating, ensuring long-term corrosion resistance and appearance quality.
Main Features
Wear-Resistant Cargo Box Material: The entire trailer uses high-quality steel, providing outstanding load-bearing capacity and impact resistance.
Cargo Box Design: The cargo box interior is designed with streamlined shapes to reduce coal adhesion and improve unloading efficiency.

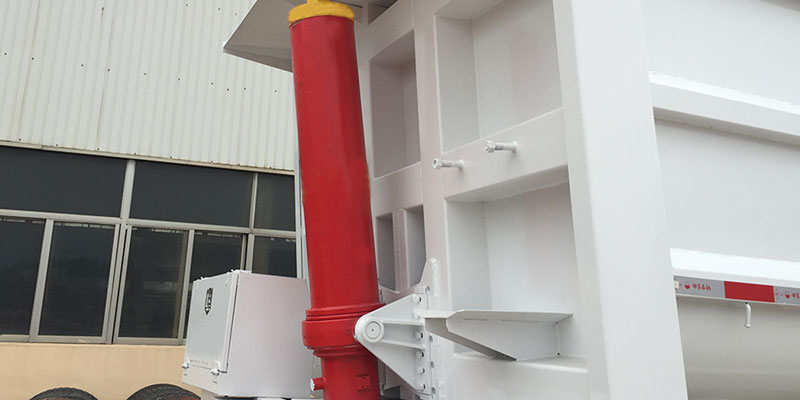

Dumping System: Equipped with a high-power hydraulic lifting system, providing strong and stable lifting force, large dumping angles, and low residue.
Suspension: Offers both mechanical and air suspension options, both featuring excellent shock absorption and load-bearing performance, ensuring smooth driving.

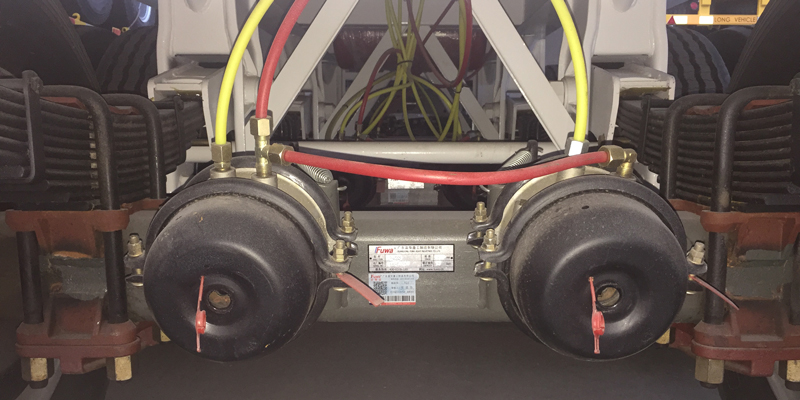

Brake System: Features WABCO air brake with ABS system for quick brake response, effectively preventing wheel lockup, shortening braking distance, and enhancing driving safety.
After-Sales Service
When you purchase our dump trailer, you will receive a one-year free warranty covering cargo box structure, hydraulic system, braking system, and other core components. Manufacturing defects causing failure qualify for free repair or parts replacement.
We provide lifelong supply of original tires, hydraulic components, and other spare parts to ensure perfect compatibility, as well as maintenance guidance to support efficient operation for customers.
Contact Us
We are the manufacturer of this coal dump trailer. By purchasing directly from us, customers can enjoy the most competitive ex-factory price. You are welcome to contact us anytime to get detailed product information. Our professional engineering team will provide free personalized customization solutions and real-time quotations.
You can contact us via website message or WhatsApp.
FAQ
Q1: What is the actual load capacity of this dump trailer?
A: The standard model can carry 45 tons of cargo. We can provide higher load capacity customization according to your needs to ensure various transportation requirements are met.
Q2: Is it suitable for use in complex mining road conditions?
A: Yes. The vehicle uses a reinforced chassis structure and heavy-duty suspension system, providing excellent passability and durability, suitable for harsh road conditions such as mining areas.
Q3: How to choose between rear dump and side dump?
A: For underground coal mines or narrow roads, choose rear dump as it is more flexible in limited space. For large coal yards or wide sites, choose side dump with faster unloading speed, precise one-side unloading, reduced site occupation, and improved efficiency.
Q4: Is the parts supply timely?
A: Yes, we ensure sufficient stock of commonly used parts and offer fast parts supply service to minimize customer downtime.
Q5: Can this trailer comply with the road regulations of the target export country?
A: Absolutely. We will adjust axle number, cargo box dimensions, and braking configurations according to local regulations on axle weight limits, width standards, etc., to ensure compliance with local laws.
