| Quantity: | |
|---|---|
This is a 45000L Fuel Tanker Trailer sold at factory price, featuring excellent quality and competitive pricing. It is specially designed for the transportation of various refined oil liquids. The whole trailer adopts explosion-proof and corrosion-resistant high-quality tank materials, with excellent sealing performance and complete safety configurations. It is mainly used for long-distance transportation and storage distribution of gasoline, diesel, kerosene, and other petroleum products, making it a core specialized equipment in energy logistics transportation.
As a professional fuel tanker trailer manufacturing factory, Vehicle Master provide comprehensive customization services. The trailer capacity can be flexibly adjusted from 20000L-60000L, with 2/3/4 axle configurations available. The tank body can be divided into 1-9 independent compartments. Carbon steel, aluminum alloy, and stainless steel materials are available. We also support independent pumping systems, overflow protection devices, anti-static system upgrades, and other customized solutions to meet different fuel classification transportation requirements.
Application Scenarios
Diesel Transportation: Suitable for industrial diesel and vehicle diesel transportation. The corrosion-resistant tank ensures clean fuel without impurities.
Gasoline Transportation: Equipped with a sealed explosion-proof structure to prevent evaporation and leakage, ensuring safe transportation of vehicle gasoline.
Kerosene Transportation: Suitable for aviation kerosene and industrial kerosene transportation, with stable sealing performance and high safety.
Lubricating Oil Transportation: Can transport various industrial lubricating oils. Multiple compartments allow different oil products to be stored separately.
Light Chemical Liquid Transportation: Suitable for non-corrosive liquid chemical raw materials, offering wide applications and strong versatility.

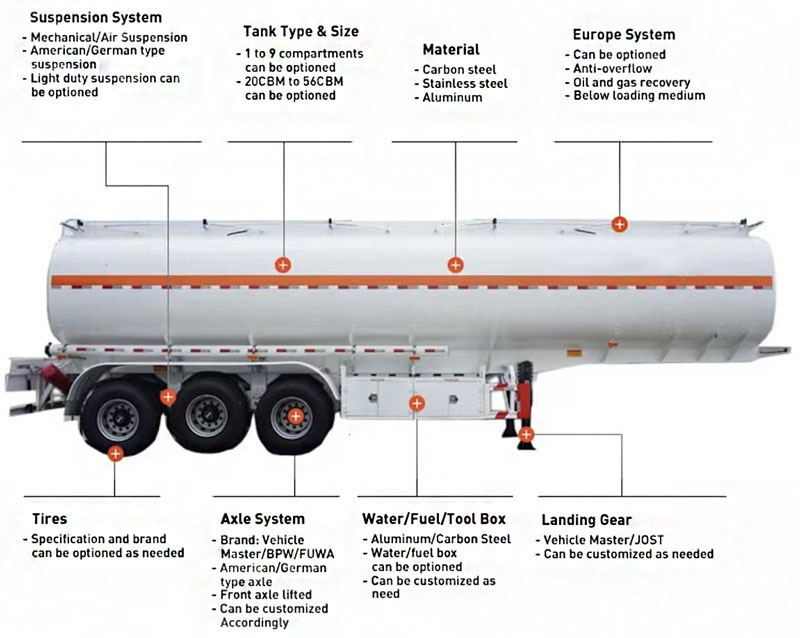

Product Specifications
Product Model: 45000L Fuel Tanker Trailer
Standard Capacity: 45000L (20000-60000L customizable)
Axles: 3 axles (2 axles/4 axles customizable)
Axle Brand: FUWA/BPW, 13/16 Ton
Tank Material: Aluminum / Carbon Steel / Stainless Steel (Optional)
Tank Thickness: 4mm-6mm (Thickened explosion-proof customization available)
Number of Compartments: 1-9 independent compartments customizable
King Pin: 50#/90#, JOST
Brake System: WABCO air brake + ABS
Suspension System: Leaf spring suspension (air suspension optional)
Tire Specification: 12R22.5 / 11.00R20
Safety Configuration: Anti-static device, breathing valve, emergency shut-off valve
Unloading System: Pumping unloading system
Price Range
The factory direct sales price range of this 45000L Fuel Tanker Trailer is USD 13,000-26,000.
The price is mainly affected by tank material, capacity specifications, number of compartments, axle configuration, pumping system, explosion-proof safety configurations, customer customization requirements, and purchase quantity.
Core Manufacturing Process

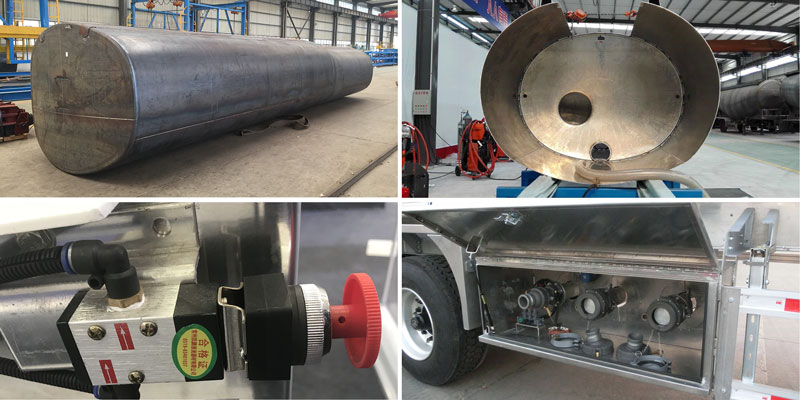

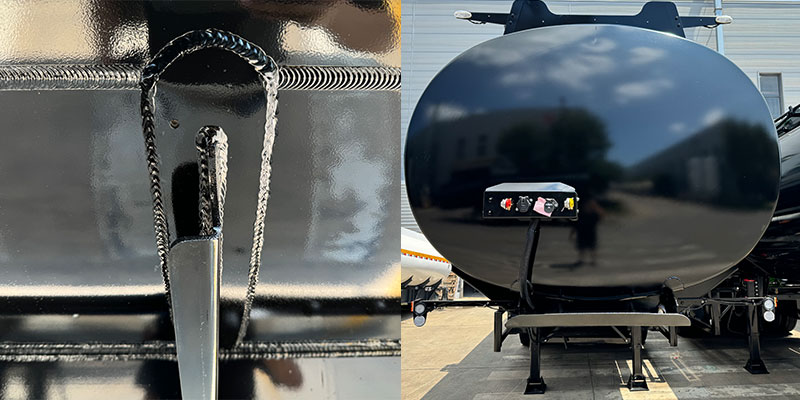

Welding Process: The tank body adopts intelligent robot circular automatic welding throughout the manufacturing process. The weld seams are uniform, full, and dense, with no pores or false welding. After welding, the tank undergoes multiple hydraulic pressure tests and airtightness tests. The tank has excellent sealing performance, strong pressure resistance, and outstanding durability without deformation.
Painting Process: The whole trailer undergoes professional oil removal, deep rust removal, and multiple surface treatments. Polyurethane combination painting is applied to cover both the tank body and the entire trailer frame. The paint film has extremely strong adhesion, high smoothness, and excellent gloss. It provides outstanding scratch resistance, sun exposure resistance, and acid-alkali corrosion resistance. It can effectively withstand rain, snow, salt spray, and industrial dust corrosion, preventing aging and fading while providing comprehensive protection for the trailer structure and extending the service life of the tanker.
Main Features
Customized Tank Material: Provides carbon steel, aluminum alloy, and stainless steel material options. The tank materials are pressure-resistant, explosion-proof, corrosion-resistant, and prevent fuel contamination, ensuring clean and safe fuel transportation.
Well-Known Brand Components: Uses famous brand components such as FUWA/BPW axles, WABCO braking systems, and JOST king pins. These components are stable, durable, have low failure rates, and are convenient for maintenance.
Multi-Compartment Customization: Supports 1-9 compartment customization, allowing different fuel products to be transported simultaneously without mixing, greatly improving transportation efficiency.
Efficient Pumping System: Equipped with a professional self-priming pumping system, providing fast unloading speed and low residue rate, saving loading and unloading time and labor costs.
Safety Protection System: Standard configuration includes a complete anti-static grounding system, emergency shut-off system, and overflow protection device, effectively reducing risks caused by static electricity and fuel overflow, ensuring comprehensive fuel transportation safety.
Lightweight and Energy-Saving Structure: The scientific tank structure design reduces dead weight while increasing loading capacity, effectively lowering fuel consumption during operation and improving vehicle economy and transportation profits.
Why Buy Our Fuel Tanker Trailer?
Factory Direct Sales: We are a fuel tanker trailer manufacturer. We provide factory prices with no middleman markup. The entire production process is controllable, ensuring reliable quality and delivery time.
After-Sales Service: When purchasing our trailers, customers will receive a one-year free warranty service and long-term supply of original spare parts. We provide fast global after-sales maintenance and replacement support.
Payment Methods: We provide multiple payment methods, supporting international trade payment channels such as T/T and L/C. Transactions are safe, compliant, and suitable for overseas customers worldwide.
Contact Us
Our fuel tanker trailers are supplied directly from the source factory, providing customers with highly competitive factory prices. At the same time, we support comprehensive customized modifications to meet different countries' road conditions and fuel transportation standards.
Whether for standard model purchasing, special configuration customization, or bulk purchasing cooperation, customers can enjoy complete warranty services and efficient logistics delivery.
For detailed product specifications, customization solutions, and real-time accurate quotations, please feel free to contact us via WhatsApp. Our professional foreign trade team is available 7×24 hours to provide customized, cost-effective, and high-safety fuel transportation solutions.
