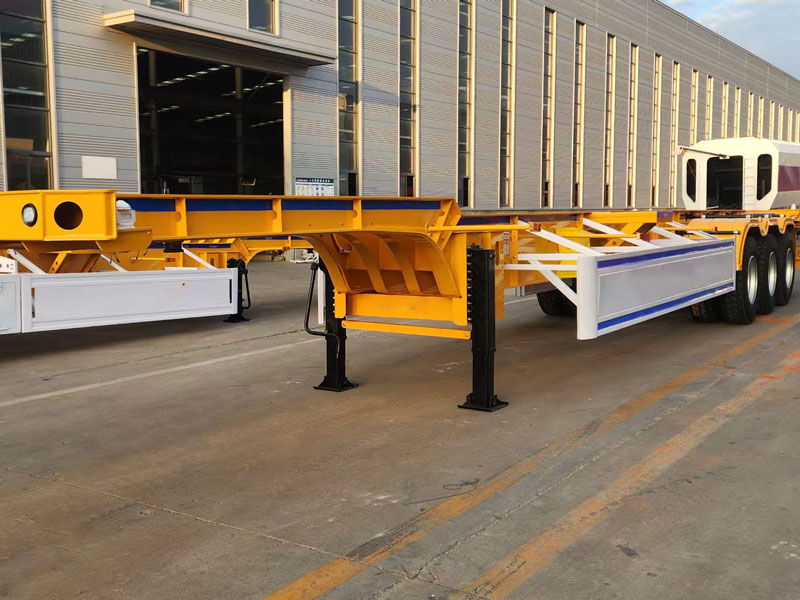

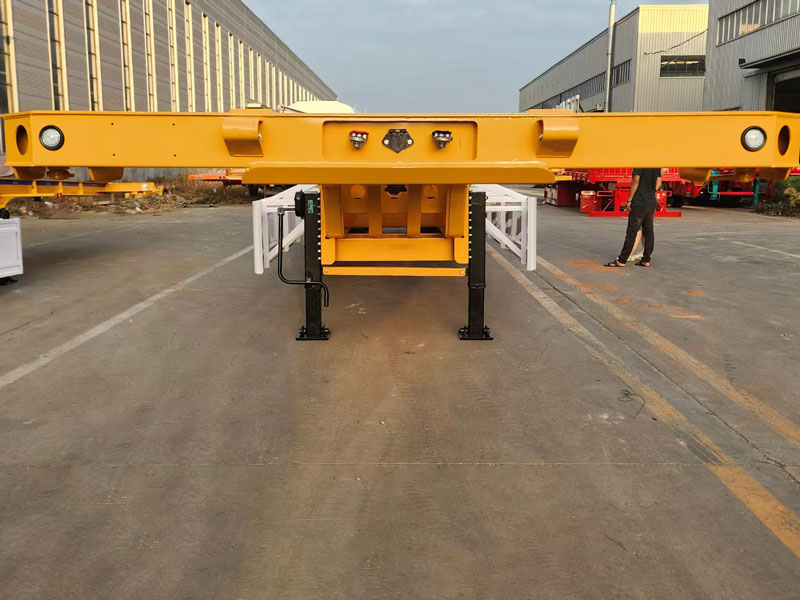

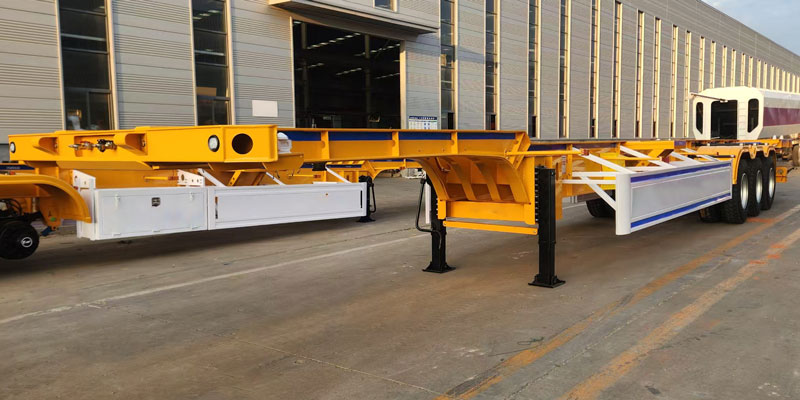

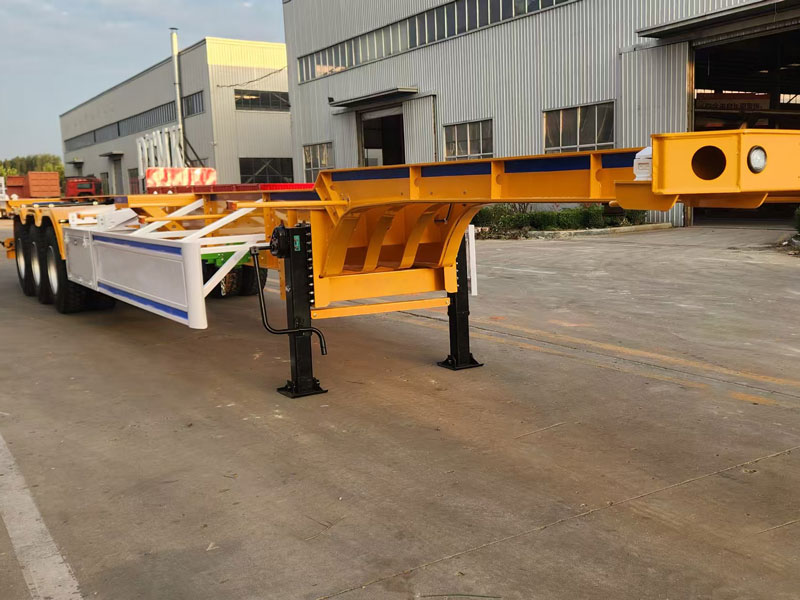

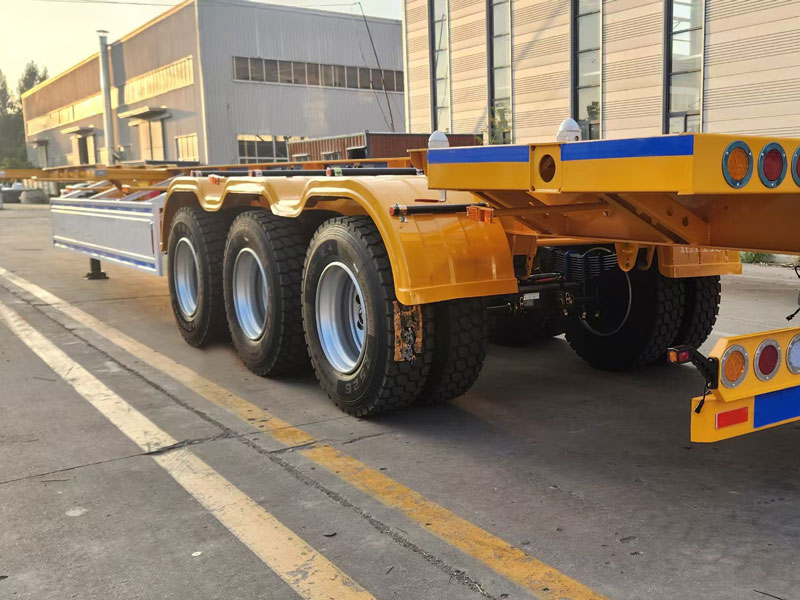

45ft Skeleton Semi Trailer for Sale
This 45ft skeleton semi trailer for sale is manufactured by Vehicle Master and offered at factory-direct pricing. Our skeleton semi trailers adopt a lightweight structural design and strict quality control system, ensuring excellent load-bearing performance and durability.
As a semi trailer factory, our skeleton semi trailers support personalized customization. Length options include 20/40/45 feet, with 2/3/4 axles available, and load capacity ranging from 20–60 tons. Suspension systems, twist lock specifications, and other exclusive configurations can also be customized to meet diverse transport needs.
Applications
Container Transport: Compatible with standard-sized containers for efficient container handling.
Modular Building Transport: Carries prefabricated houses, large building modules, and other structures, ensuring transport safety.
Steel Long Material Delivery: Suitable for transporting steel pipes and long materials, with the skeleton frame facilitating bundling and securing.
Large Equipment Transport: Supports industrial equipment, and custom interfaces can be added for secure fastening.
Specifications
Length: 45ft
Custom Length: 20ft / 40ft
Container Compatibility: 20/40/45ft ISO standard containers
Axle Configuration: 3 axles (optional 2/4 axles)
Axle Rating: 13/16 tons, FUWA/BPW
Loading Capacity: 20–60 tons
Type: Gooseneck or Tandem
Main Beam Material: Q345/T700
Number of Twist Locks: 12 pcs (can be increased upon request)
Suspension: Mechanical suspension / Air suspension
Brake System: WABCO air brake + ABS
Tire Size: 12R22.5
Number of Tires: 12 pcs (4 tires per axle)
King Pin: #50 (2") / #90 (3.5"), JOST/Other Brand
Landing Gear: 28 Tons Two Speed, JOST/Other Brand
Twist Lock: 4 Sets / 12 Sets
Painting: Electrophoresis Painting
Price Range
As a semi trailer manufacturer and supplier, our 45ft skeleton semi trailer is priced between USD 6,000 and 15,000. Price differences mainly come from three key factors: Grade of high-strength steel and brands of key components, Welding technology and surface treatment process, Additional customization needs (such as non-standard dimensions or reinforced structures).
If you want to purchase this 45ft skeleton semi trailer at factory price or customize it based on your requirements, please contact us via website message or WhatsApp (+86-18866100060).

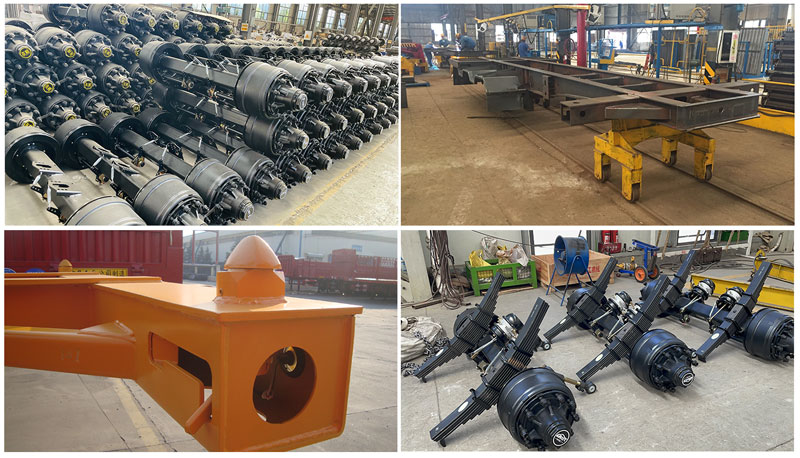

Core Processes
Welding: We use automatic submerged arc welding technology. By precisely controlling welding parameters, the weld seams remain uniform, dense, and aesthetically shaped, featuring high strength and excellent fatigue resistance. This ensures the overall rigidity of the trailer frame and long-term operational safety and reliability.
Painting: The standard model adopts a powder coating process. Powder coating is electrostatically adsorbed and cured at high temperature to form a durable and corrosion-resistant coating with excellent decorative and protective properties. For customers with higher requirements, electrophoresis painting is available. Using electrochemical principles, the paint penetrates every corner of the structure with exceptionally strong adhesion and outstanding anti-rust performance, providing long-lasting comprehensive protection.

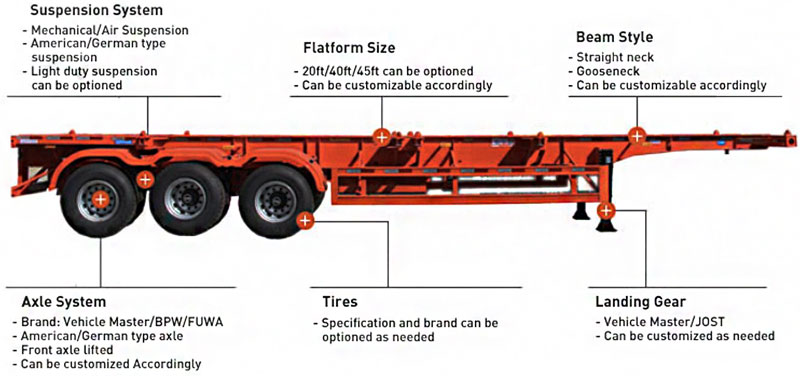

Main Features
Custom Length Options: Available in 20/40/45 feet to help customers precisely select the most economical trailer specification.

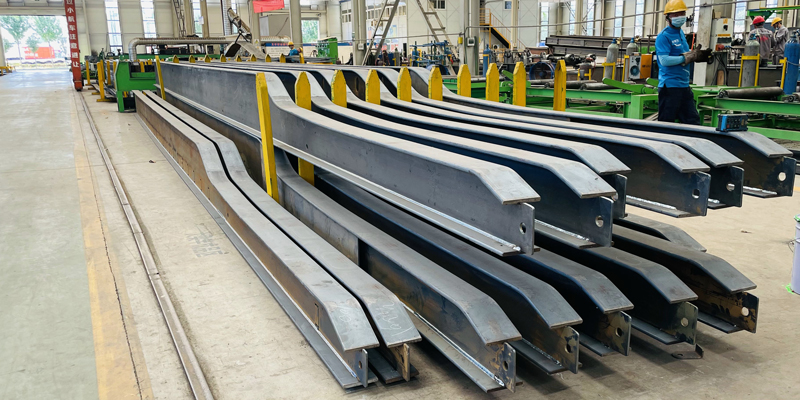

Main Beam Material: Constructed with Q345/T700 I-beam main beams, providing strong bending and torsional rigidity.
Axles: Configured with 2/3/4 axles depending on load needs, offering stable support and smooth driving.
Twist Locks: Equipped with ISO-standard twist lock devices that are easy to operate and securely lock containers, preventing shifting or shaking during transport.
Stake and Guide Rails: Optional stakes and guide rails assist in cargo positioning during port operations, improving loading and unloading efficiency.
Landing Gear: Equipped with heavy-duty landing gear featuring strong support capacity, smooth operation, and easy lifting and lowering with excellent stability.
Our Advantages
Factory Price: As the manufacturer, we sell directly to customers with no middlemen, ensuring the most competitive pricing.
Free Customization: Free customization for length, axle configuration, twist locks, and more based on your transport needs—no extra design cost.
Warranty Service: We provide one-year free warranty from delivery. Manufacturing defects in core components will be repaired or replaced.
Lifetime Spare Parts Supply: We supply original spare parts for life, ensuring compatibility and supporting long-term stable operation of your vehicle.
Contact Us
Vehicle Master is a leading semi trailer manufacturer. By purchasing the 45ft skeleton semi trailer from us, you can enjoy factory-direct pricing with no middleman markups. If you are interested in this skeleton trailer or would like to discuss customization options, please contact us through our official channels at any time. Our sales engineering team will provide one-on-one professional consultation and factory-direct discounted quotations.
You can contact us via website message or WhatsApp (+86-18866100060).
FAQ
Q1: Compared with flatbed trailers, what advantages do skeleton trailers offer for transporting containers?
A: Skeleton trailers consist only of the chassis and axles and are specifically designed for carrying containers. They are lighter and have lower tare weight. Flatbed trailers, however, have a full loading platform and are suitable for various types of bulk cargo.
Q2: Does the vehicle require special operation permits?
A: A standard 45ft skeleton trailer with compliant axle configuration can typically operate legally in permitted areas. Please consult your local transportation authority for specifics. We can provide dimensional and weight certification documents.
Q3: Can twist locks be quickly replaced if damaged?
A: Yes. Twist locks use a modular design that is easy to remove and install. We stock common twist lock specifications and can supply replacements quickly.
Q4: Can the trailer meet road requirements when transporting oversized containers?
A: Yes. We can customize an extendable chassis to adjust dimensions for height or width restrictions.
Q5: If I have cargo with special dimensions, can a non-standard length trailer be customized?
A: Yes. In addition to 20/40/45ft standard lengths, we also accept non-standard custom lengths. Please provide the specific cargo dimensions and transport requirements, and our engineers will evaluate and design a feasible solution for you.
