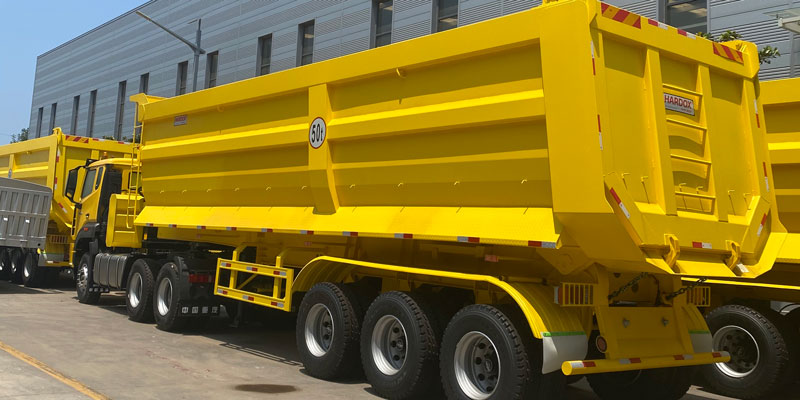

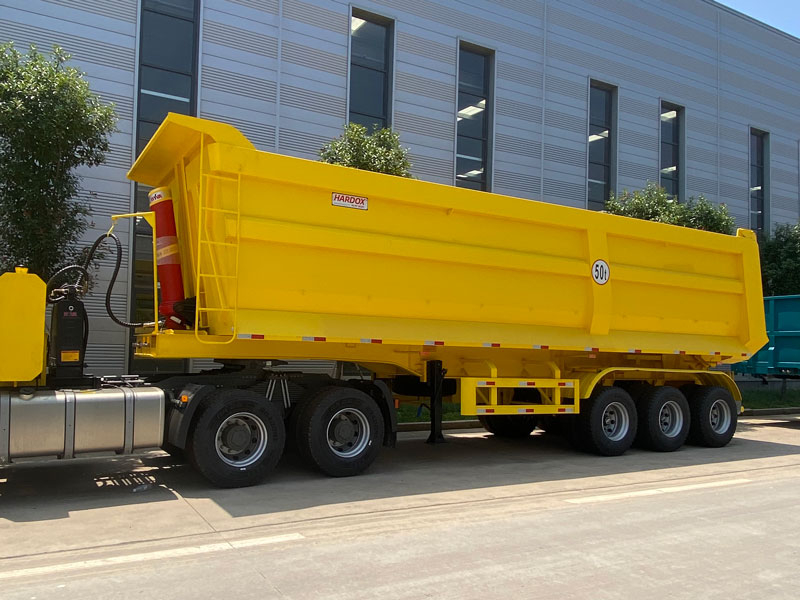

50 Ton End Dump Semi Trailer for Sale
The 50 Ton End Dump Semi Trailer manufactured by Vehicle Master is built with premium steel and a well-known hydraulic system brand, ensuring excellent structural strength, durability, and unloading efficiency. It is widely used in bulk material transport such as ore transfer, coal transportation, and construction waste removal.
As a semi-trailer factory, we offer factory-direct prices, eliminating middleman markups to provide you with the best investment value.
Our end dump semi trailers support flexible customization, with load capacities from 30 to 100 tons, and are available with 2/3/4/5 axles according to load requirements. Various hydraulic cylinder capacities, round or rectangular body designs, and multiple suspension configurations are available to ensure perfect adaptability to your specific operational needs.
Applications
Ore Transfer: Designed for transporting iron ore and copper ore; fast rear tipping improves mining efficiency.
Coal Transport: The large-capacity body meets coal transport needs with significantly improved loading and unloading efficiency.
Waste Removal: Suitable for harsh construction environments, effectively transporting debris, soil, and concrete blocks.
Grain Transport: Ideal for the efficient transport of corn, wheat, and other grains with clean and quick unloading.
Specifications
Rated Load: 50 Tons (Customizable 30–100 Tons)
Axles: 2/3/4/5 Axles, 13/16 Tons per axle, FUWA/BPW
Front Axle Lifting: Available
Body Material: Q345 / T700
Body Shape: Round / Rectangular
Dump Style: Rear Dump
Dumping Angle: 48°–60°
Cylinder: HYVA (model according to cargo box length)
Floor Plate Thickness: 5mm
Cargo Side Thickness: 4mm
Suspension System: Mechanical / Air Suspension
Braking System: WABCO Drum Brake (Optional ABS)
Tire Specification: 11.00R20 / 12R22.5 * 8/12/16/20 Pieces (4 tires per axle)
Landing Gear: 28T Two-Speed, JOST
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Price Range
The price of this end dump semi trailer ranges from USD 9,000 to USD 35,000. The final price depends on factors such as load capacity, body shape, axle configuration, hydraulic cylinder brand and specifications, suspension type, customization level, and production standards. We will provide the most cost-effective configuration based on your specific requirements.
If you want to purchase this 50 Ton End Dump Semi Trailer at factory-direct price or customize it based on your operational needs, please leave a message on our website or contact us via WhatsApp (+86-18866100060).

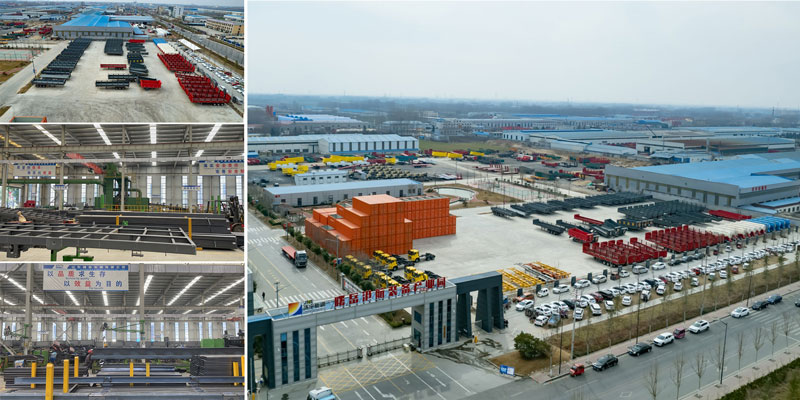

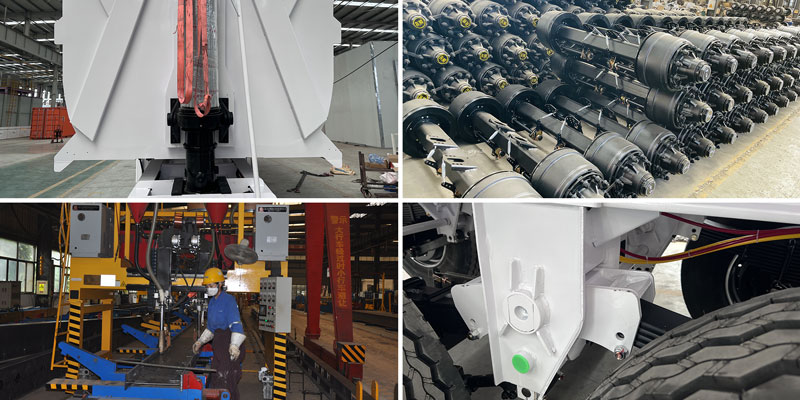

Core Manufacturing Process
Welding: We use advanced automated welding equipment with precisely controlled parameters to continuously weld the cargo body side plates, floor plates, and chassis joints. The welds are uniform, full, and free from pores or slag inclusions, enhancing fatigue strength and overall durability of key structural parts. This ensures excellent stability and long-term reliability of the trailer.
Painting: We adopt advanced electrostatic powder coating combined with high-performance polyurethane topcoat technology. Epoxy powder is evenly attached to the surface through electrostatic adsorption, followed by the application of a high-quality polyurethane topcoat. The resulting paint film offers outstanding scratch resistance and corrosion protection, maintaining the trailer’s appearance over time.

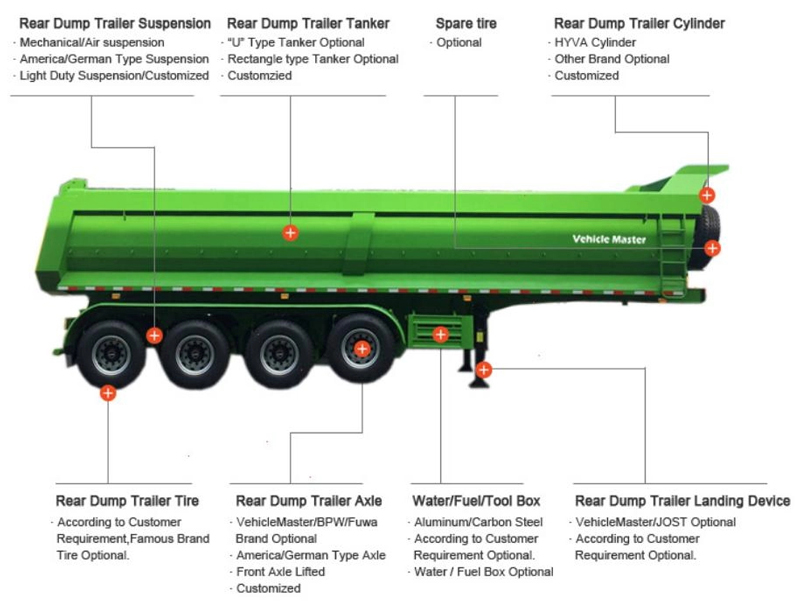

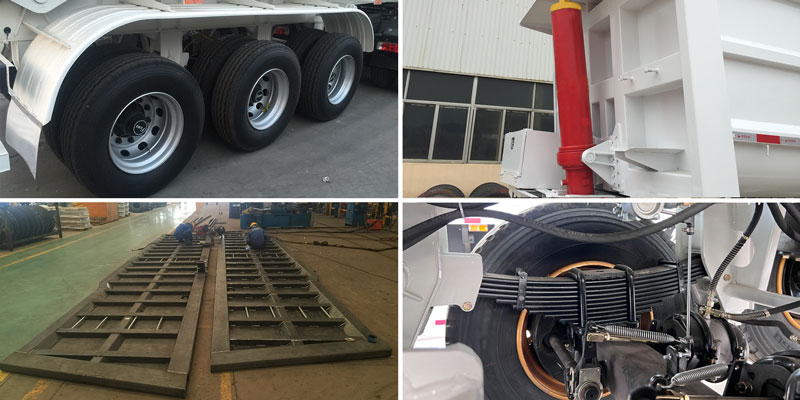

Main Features
Main Beam Material: Made of Q345/T700 high-strength steel, providing excellent load-bearing capacity and durability for heavy-duty transport.
Capacity Customization: Multiple capacity options are available to match your operational needs, improving efficiency and adaptability for different material transport scales.
Axles: Equipped with renowned brand axles based on load requirements, offering superior load capacity, reduced failure rate, and stable performance.
Body Shape: Two body shapes available — rectangular for larger volume and round for greater structural strength.
Customized Hydraulic Cylinder: Hydraulic cylinders are configured according to load requirements, providing powerful and smooth lifting with excellent sealing performance, suitable for frequent unloading operations.
Suspension System: Mechanical and air suspension options available. Mechanical suspension features a simple, durable structure and low maintenance cost, while air suspension offers superior shock absorption.
Braking System: Equipped with WABCO air brake system and optional ABS anti-lock braking system, providing fast response and high stability for improved driving safety.
Tires: Uses wear-resistant radial tires with deep tread patterns and high puncture resistance, reducing tire replacement frequency and maintenance costs.
Shipping
Depending on trailer specifications, we use container shipping or bulk stacking transport. Hydraulic cylinders, brake lines, and other precision components, as well as vulnerable parts, are professionally protected and packaged to prevent impact or deformation during transportation.
Based on the customer’s destination, we will develop an optimized logistics plan and provide road, rail, sea, or combined transport options to ensure safe and on-time delivery to the designated location.
Contact Us
As a semi-trailer factory, customers purchasing our End Dump Semi Trailer enjoy factory-direct prices, direct communication for customized configurations, and comprehensive after-sales service. Feel free to contact us for professional advice and the latest quotation.
You can reach us by leaving a message on our website or via WhatsApp (+86-18866100060).
FAQ
Q1: How to choose between rectangular and round body shapes?
A: The rectangular body offers larger volume, suitable for low-density materials. The round body provides higher structural strength and is more suitable for dense materials with strong impact. Choose based on your actual requirements.
Q2: Is the body prone to sticking when transporting wet coal or ore?
A: A round body is recommended. Its smooth bottom design with no dead corners, combined with a large tipping angle, allows materials to slide out easily during unloading.
Q3: Can the hydraulic system be customized?
A: Yes. Hydraulic cylinder brand, tonnage, and control mode can all be customized according to your needs to ensure efficient and stable unloading.
Q4: What is the service life of the hydraulic cylinder? Can it be repaired if it fails?
A: Under normal use, the hydraulic cylinder can last over 5 years. We provide repair services with original spare parts and remote troubleshooting guidance to ensure quick restoration of equipment operation.
Q5: Can the trailer operate in harsh road conditions?
A: Yes. The trailer adopts a reinforced chassis structure and heavy-duty suspension system with engineering tires, providing excellent passability and durability, suitable for mining areas, construction sites, and other rough terrains.
