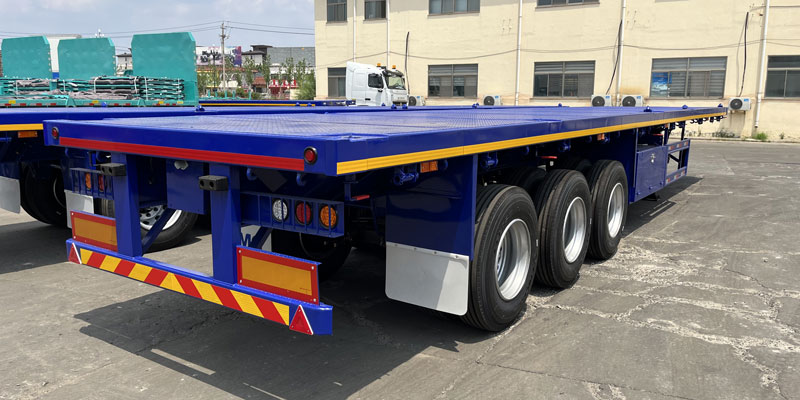

60ft Flatbed Semi Trailer for Sale
This 60ft flatbed semi trailer is manufactured by Vehicle Master and sold at a factory-direct price. It adopts an open-deck design, combined with high-strength steel and advanced welding technology, offering excellent quality and flexible loading/unloading. It is widely used in transporting long steel materials, large equipment, and intermodal containers, suitable for logistics, infrastructure, and other industries.
As a semi-trailer factory, our 60ft flatbed trailer supports customization on demand. The length can be adjusted between 20–60 feet, load capacity ranges from 20–80 tons, and the number of axles (2/3/4/5) is matched according to trailer length and load. We also offer options for suspension type, securing systems (twist locks, stakes, lashing points), braking systems, and LED lighting to meet diverse cargo transport and safety requirements with strong flexibility.
Application
Container Transport: Suitable for standard containers, improving logistics efficiency.
Machinery and Equipment: Used for transporting heavy equipment such as excavators and cranes.
Irregular Cargo: Capable of carrying oversized or long loads, such as wind turbine blades and construction modules.
Steel Transport: Efficiently loads and carries steel pipes, coils, and profiles, reducing handling costs.
Specifications
Length: 60ft (customizable 20–60ft)
Rated Load: 20–80 Tons
Axles: 2/3/4/5 Axles, 13/16 Tons per axle (customized according to load and length)
Main Beam Material: Q345/T700 High-Strength Steel
Type: Gooseneck Type / Tandem Type
Floor: 8mm Anti-Slip Checkered Steel Plate
Suspension System: Mechanical / Reinforced Air Suspension
Braking System: Drum Brake (with ABS Anti-lock)
Tire Specification: 12R22.5 (8/12/16/20 Pieces)
King Pin: #50 (2") / #90 (3.5"), JOST/Other Brand
Landing Gear: 28 Ton Two-Speed, JOST/Other Brand
Twist Locks: 4 Sets / 12 Sets
Safety Features: LED Lights, Reflective Tape
Vehicle Painting: Electrophoresis Painting
Price Range
The price of this flatbed semi trailer ranges from USD 7,000 to USD 25,000. The specific price depends on trailer length, material grade, production standard, configuration options, and customization level. Variations in material costs and process complexity may cause corresponding price differences.
If you would like to purchase this 60ft flatbed semi trailer at factory price or have customized requirements, please leave a message on the website or contact us via WhatsApp (+86-18866100060).

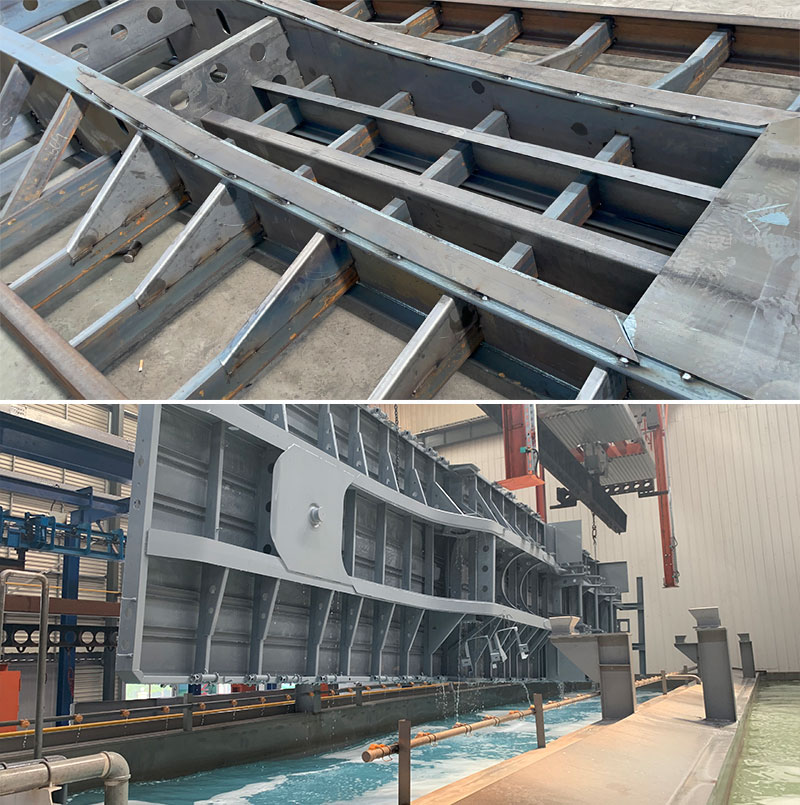

Core Manufacturing Process
Welding: We use a combination of automatic submerged arc welding and manual welding. The connection between the main beam and crossbeam is welded by automatic submerged arc welding to ensure uniform weld penetration without air holes or slag. Key stress points are reinforced with manual precision welding to ensure structural integrity. This combined process enhances torsional resistance, significantly increases overall trailer strength and fatigue durability, and extends service life.
Painting: We adopt a high-end electrophoresis painting process. After degreasing and phosphating pretreatment, the trailer body is immersed in the electrophoresis tank, where electrochemical action ensures an even coating with excellent adhesion and rust protection. It is then sprayed with multiple layers of premium finish paint. This coating process provides outstanding scratch resistance and corrosion protection, effectively resisting rain, UV exposure, and harsh environments, extending service life.
Main Features
Main Beam Material: Made from Q345/T700 high-strength steel, resistant to bending under heavy loads, ensuring safe and reliable transport.
Checkered Steel Floor: Equipped with anti-slip checkered steel plate to increase friction and prevent cargo sliding.
Deck Design: Open flatbed design ideal for top or side loading of long cargo, improving operation efficiency.
Cargo Securing System: Equipped with twist locks, lashing points, and detachable stakes — suitable for securing containers, pipes, and irregular cargo.
Braking System: WABCO air brake system with optional ABS, improving driving stability and reducing skid risks.
Suspension Options: Available in mechanical or air suspension, ensuring smooth operation under different road conditions and protecting cargo from vibration damage.
Additional Safety Options: LED lighting and reflective markings ensure high visibility during nighttime operation, providing comprehensive safety protection.
Shipping
Depending on the trailer specification, we use container shipment or stacking transport. Detachable components and key parts are protected with anti-shock foam to prevent damage during transportation.
Based on the client’s destination port, we communicate with the customer to develop the most optimized logistics plan, combining road, rail, sea, or multimodal transport to ensure timely delivery.
Contact Us
We are a semi trailer factory, and by purchasing this 60ft flatbed semi trailer directly from us, you can enjoy the factory price without middlemen markups. As the manufacturer, we also provide free customization design solutions and after-sales technical support.
If you would like to learn detailed specifications or obtain a quotation, please feel free to contact us via the website message or WhatsApp (+86-18866100060).
FAQ
Q1: Does the price include shipping costs?
A: The base quotation does not include shipping. The specific cost depends on the transportation method and distance, to be discussed upon order confirmation.
Q2: What is the production lead time for customization?
A: Standard orders require 20–30 days, while complex customization may take up to 45 days. Expedited service is available.
Q3: How to maintain and extend the service life?
A: Regularly inspect the suspension system, lubricate bearings, avoid overloading, and clean after exposure to humid environments to prevent rust.
Q4: For long-term transport of heavy steel coils, how to reduce floor wear?
A: We can install alloy wear-resistant strips in key wear areas or customize 10mm thick checkered steel plates to enhance durability.
Q5: Do you provide after-sales service support?
A: Yes. We provide comprehensive after-sales services including technical guidance, spare parts supply, and maintenance support to ensure the trailer operates at its best performance throughout its service life.
