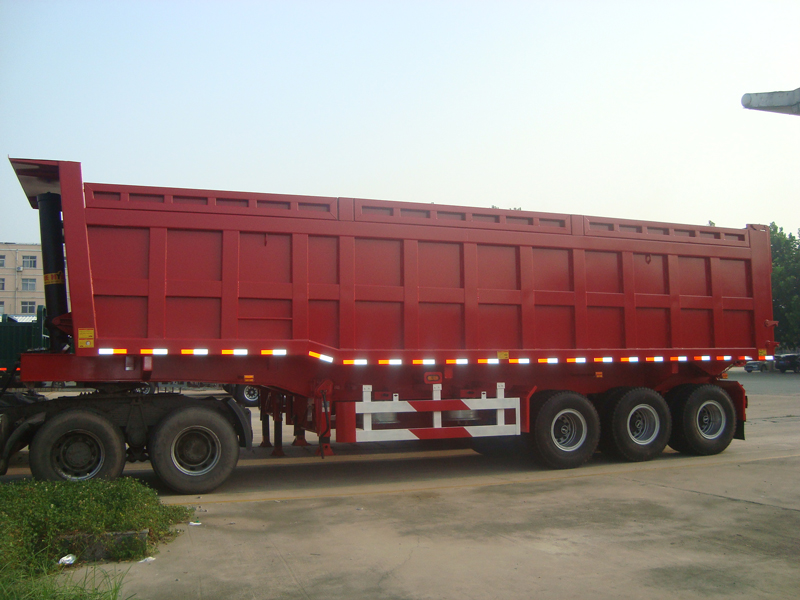

80 Ton End Dump Semi Trailer for Sale
This is an 80 ton end dump semi trailer for sale. As a leading semi trailer manufacturer, this dump semi trailer is supplied at factory price and supports various customizations, with load capacity options of 30-100 tons, axle configurations of 2/3/4 axles, and customizable rectangular or round cargo boxes to meet diverse transportation needs.
The end dump semi trailers we produce are made with high-quality raw materials and advanced processes, featuring excellent quality and high durability. They are widely used in scenarios such as mining slag transportation, sand and gravel clearing at construction sites, coal mine coal transfer, and construction waste handling.
Applications
Ore Transportation: Efficient transfer of iron ore, copper ore, etc. from mines to processing plants.
Construction Waste Removal: Quick handling of construction debris such as earth, rubble, and bricks.
Coal Mine Raw Coal Transfer: Efficient transportation of raw coal from mines to washing plants.
Agricultural Transport: Can be used for transporting corn, soybeans, fertilizers, and other agricultural goods.

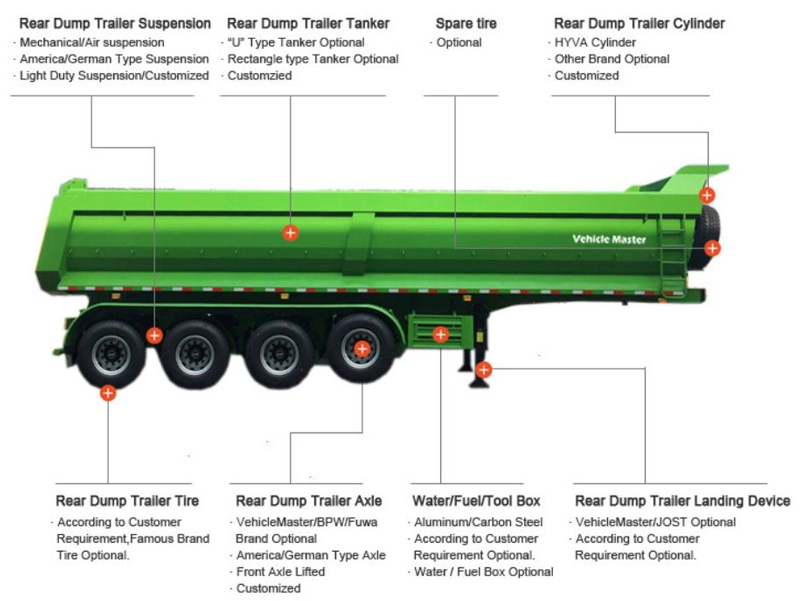

Specifications
Load Capacity: 80 tons (customizable 30-100 tons)
Axle Configuration: 3/4 axles, each axle 13/16 tons, FUWA/BPW
Length*Width*Height: 11000mm * 2500mm * 2800mm
Cylinder: HYVA (Model choice according to length of cargo box)
Cargo Box Shape: Rectangular / Round
Bottom Plate Thickness: 5mm
Sidewall Plate Thickness: 4mm
Main Beam Material: Q345/T700
Suspension System: Mechanical Suspension / Air Suspension
Tire: 11.00R20 / 12R22.5 * 12/16 pieces
Landing Gear: 28T two-speed, JOST
King Pin: #50(2") / #90(3.5"), JOST/Other Brand
Painting: Electrophoresis painting
Price Range
The price of this end dump semi trailer ranges from USD 11,000 to USD 45,000. The price is influenced by the level of customization. Higher load capacities, multi-axle configurations, round cargo boxes, high-performance hydraulic cylinders, and air suspension systems will increase costs.
If you would like to receive our product brochure or purchase this 80 ton end dump semi trailer now, please contact us via message or WhatsApp (+86-18866100060).
Our Dump Semi Trailer Features Excellent Quality

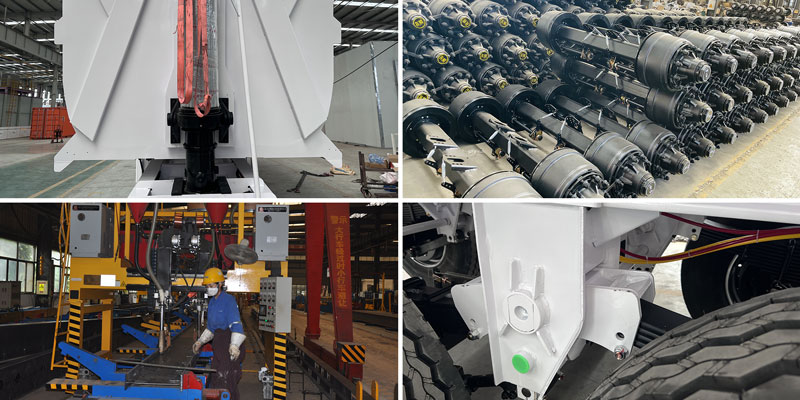

High-Quality Raw Materials: The chassis and cargo box are made of high-quality steel with high yield strength and excellent deformation resistance. They can withstand heavy loads and frequent dumping impacts, ensuring structural stability and excellent fatigue resistance.

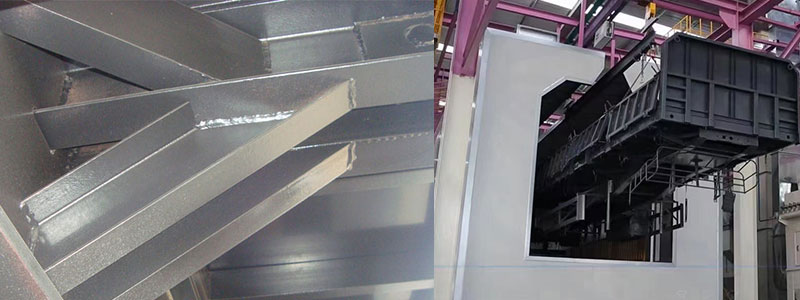

Welding Process: Uses automatic submerged arc welding technology, with precise parameter control for welding. Weld seams are uniform and dense, free of pores, slag inclusions, and other defects, enhancing the connection strength between the chassis and cargo box. Even with frequent heavy-duty dumping, structural stability is maintained, reducing deformation and cracking, and extending service life.
Painting Process: We adopt an electrophoresis painting process to treat the trailer surface. After shot blasting, the trailer is immersed in an electrophoresis tank, where electrolysis ensures a uniform and dense anti-rust primer layer. The paint has good adhesion and scratch resistance, effectively resisting rain, moisture, and corrosion, preventing rust and aging, and maintaining a good appearance over long-term use.
Main Features
Customizable Load Capacity: Offers load capacity customization from 30-100 tons to suit different cargo weights, ensuring efficient transportation for mining, construction sites, and various other applications, enhancing practicality.

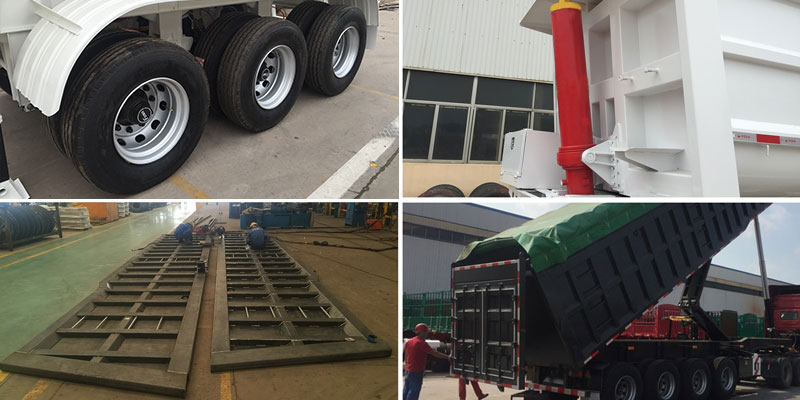

Cargo Box: Provides customizable rectangular or round cargo boxes. Rectangular boxes have large capacity and are suitable for regular materials; round boxes leave less residue during unloading, suitable for sticky materials.
Hydraulic Cylinder: Equipped with high-quality hydraulic cylinders featuring powerful performance, fast and stable dumping, excellent sealing, fewer malfunctions, ensuring efficient and reliable unloading and reducing maintenance costs.
Suspension: Offers customizable mechanical suspension and air suspension options. Mechanical suspension has strong environmental adaptability and better cost-effectiveness; air suspension offers excellent shock absorption, reducing cargo jolting and improving driving stability.
Tires: Equipped with radial wear-resistant tires that have strong carcasses, excellent grip, high load capacity, suitable for mines, construction sites, and other complex road conditions, reducing the risk of tire blowouts and ensuring smooth transportation.
Rain Cover: Optional waterproof rain cover prevents materials from getting wet during rainy transportation, reduces dust, protects cargo quality, and adapts to various weather conditions, enhancing transportation suitability.
Shipping Details

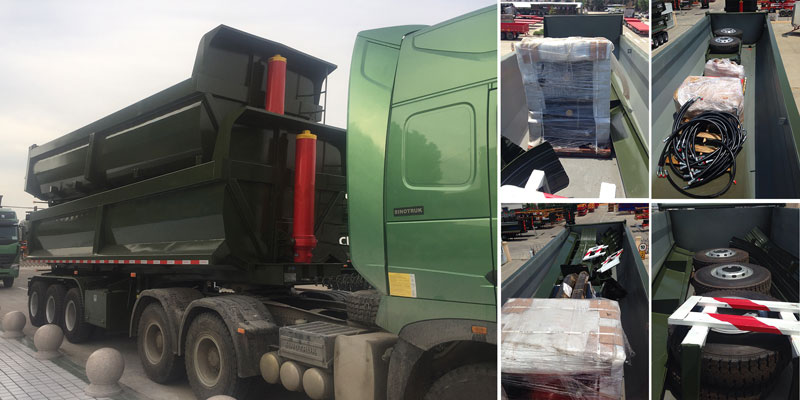

Depending on the vehicle specifications, packaging uses container or stacking methods. Key components such as hydraulic cylinders and suspension systems are tightly wrapped with shockproof materials and secured with steel frames to prevent collision damage during transportation.
Depending on the customer’s destination, we offer road, rail, sea, or multimodal transportation combinations and customize routes based on customer requirements to ensure safe delivery of the equipment.
Factory Direct Price Advantage, Contact Us
As a manufacturer and dealer of semi trailers, purchasing the 80 ton end dump semi trailer through us allows you to enjoy factory direct prices, eliminating intermediaries and achieving higher cost performance. If you would like to learn more product details or obtain a customized quotation, please feel free to contact us. We will provide professional solutions. You can contact us via message or WhatsApp (+86-18866100060).
