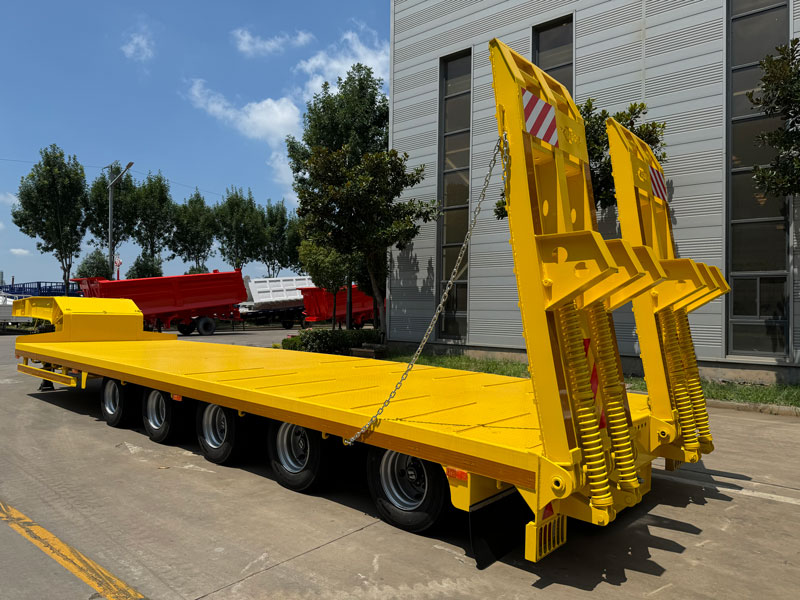

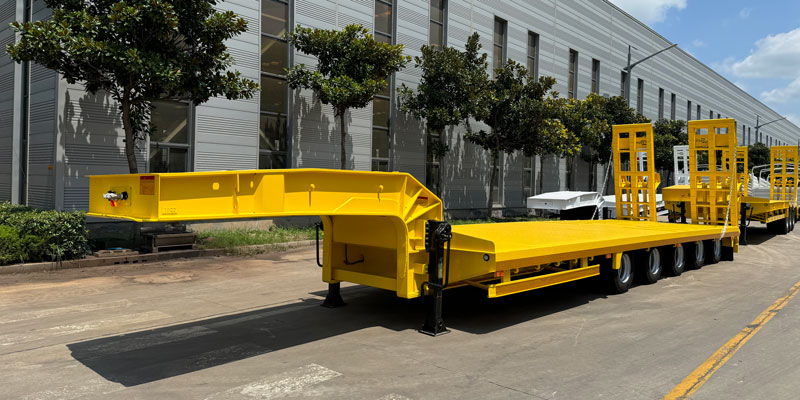

80 Ton Lowbed Trailer with Widened Parts
This 80 ton lowbed trailer with widened parts for sale is manufactured by Vehicle Master and offered at factory-direct pricing. Built with high-grade steel, it features a robust structure suitable for complex road conditions, delivering outstanding durability and excellent passability to provide reliable assurance for heavy-duty transportation.
As a semi-trailer factory, we offer diversified customization options for lowbed trailers. The load capacity can be customized from 30–150 tons, with configurations of 2/3/4/5 axles. Options such as steering axles, widened parts, detachable gooseneck, and rear ramps are also available, precisely matching various heavy-duty transport scenarios and fully meeting differentiated requirements.
Applications
Construction Machinery Transport: Safely transports heavy construction equipment such as excavators and bulldozers.
Steel Structures and Prefabricated Components: Transports oversized and overlength building materials such as bridge components and factory steel beams.
Power Equipment Transport: Suitable for road transportation of transformers, wind turbine blades, and towers.
Road Construction Equipment Transport: Carries pavers, road rollers, and related equipment.
Agricultural and Industrial Equipment: Efficiently transports large combine harvesters, injection molding machines, and other heavy equipment.
Specifications
Rated Load: 80 tons
Customizable Load: 30–150 tons
Standard Axles: 4 axles, FUWA/BPW
Custom Axles: 2/3/4/5 axles
Multi-Axles: Available
Steering Axles: Available
Main Beam Material: Q345/T700
Suspension System: Mechanical suspension / Air suspension
Brake System: WABCO air brake (ABS optional)
Tire Specification: 12R22.5 / 8.25R20
Tire Quantity: 16 pieces (4 tires per axle)
Tire Style: Covered or Uncovered
Gooseneck Structure: Detachable hydraulic gooseneck
Ramp Type: Spring / Hydraulic
King Pin: #50 (2") / #90 (3.5")
Landing Gear: 28 Tons Two Speed
Price Range
As a semi-trailer factory, the price range of our lowbed trailers is USD 11,000–50,000. Pricing is mainly determined by factors such as core material grades including high-strength steel, specification parameters like load capacity and axle quantity, the complexity of customized configurations such as widened parts and detachable gooseneck, brand selection of axles and braking components, as well as purchase volume.
If you would like to purchase a lowbed trailer at a preferential price or customize it through a semi-trailer factory, please contact us via website message or WhatsApp (+86-18866100060).
Core Manufacturing Processes
Welding: The main beams and load-bearing structures adopt automatic submerged arc welding. The welding process is stable, with uniform weld formation and sufficient penetration to ensure structural connection strength. Complex areas such as weld joints and corners are supplemented by experienced technicians with manual welding. X-ray flaw detection inspections are conducted to eliminate defects such as porosity and cracks, ensuring overall structural safety and stability.
Painting: After strict surface cleaning, the trailer adopts a full-immersion electrophoresis process to achieve 360-degree, dead-angle-free coating coverage with strong adhesion and excellent anti-corrosion foundation. Polyurethane topcoat is then applied to further enhance weather resistance, effectively resisting high-temperature, high-humidity, and dusty environments, significantly extending service life.

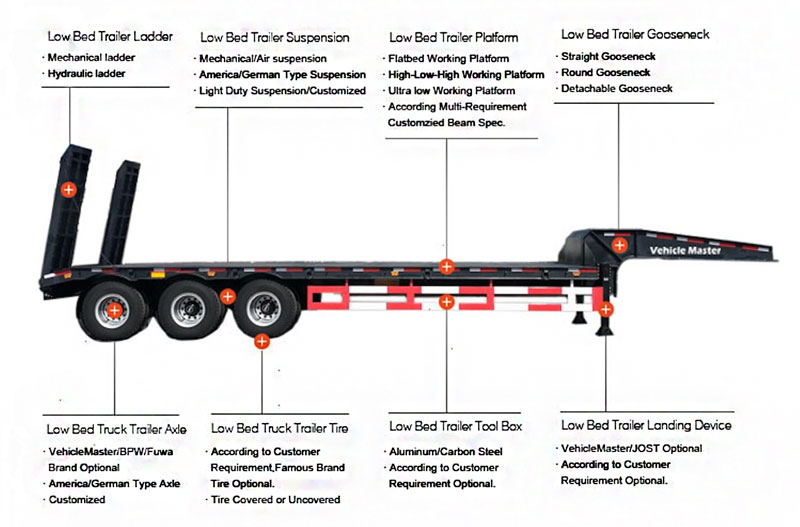

Main Features
Material: The main beam is made of Q345/T700 high-strength steel, offering excellent impact resistance and deformation resistance, suitable for long-term heavy-duty operation.
Gooseneck: Hydraulic detachable structure enables convenient and labor-saving loading and unloading, improving operational efficiency.
Widened Parts: Dedicated widened parts design allows flexible adjustment of deck width to meet oversized cargo transport needs.
Rear Ramps: Equipped with spring or hydraulic rear ramps, featuring smooth deployment and firm support, suitable for rear loading and unloading of self-propelled equipment, improving operational efficiency.

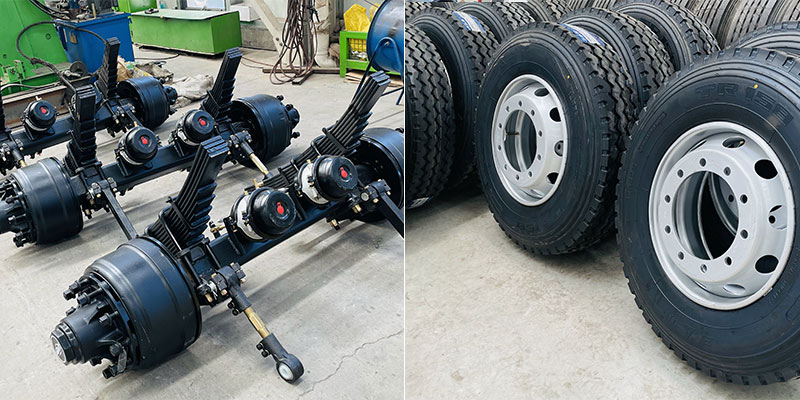

Axles: Equipped with well-known brand heavy-duty axles, providing strong load capacity and stable operation for long-distance heavy transport.
Tires: Covered and uncovered tire options are available. Heavy-duty steel radial tires offer excellent wear resistance and puncture resistance, maintaining stable driving performance under complex road conditions.
Suspension: Mechanical and air suspension options are available. Mechanical suspension provides stable load capacity and easy maintenance, while air suspension offers superior shock absorption to suit different road conditions and cargo requirements.
Steering Axles: Optional steering axles reduce turning radius and lower road width requirements.
Our Advantages
Factory Price Advantage: Direct sales from a semi-trailer factory ensure you receive the most competitive pricing.
Free Customization: Professional technical consultation and free customized design services ensure precise matching with actual operating scenarios.
One-Year Warranty: We provide a one-year warranty service for our semi-trailers.
Lifetime Spare Parts Supply: Lifetime spare parts supply ensures timely parts availability and significantly reduces vehicle downtime risk.
Contact Us
As a leading semi-trailer factory, Vehicle Master offers factory preferential pricing and high-quality product assurance when purchasing an 80-ton lowbed trailer from us. Our professional team provides one-stop services including requirement matching, solution customization, and after-sales maintenance. If you need a detailed quotation or product consultation, please contact us. We will respond to your needs promptly.
You can reach us via website message or WhatsApp (+86-18866100060).
