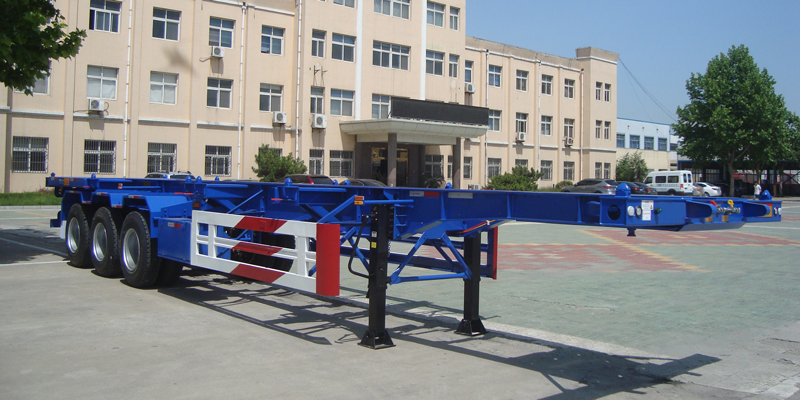

Skeleton Semi Trailer for Sale in Africa
This skeleton semi trailer is manufactured by Vehicle Master. As a direct factory, we supply the African market at competitive factory prices. This skeleton semi trailer is deeply optimized for Africa’s complex road conditions. It adopts high-strength steel and an impact-resistant structure design, greatly improving durability. It can adapt to multiple scenarios such as gravel roads and dirt roads, with durability far exceeding that of conventional models.
This skeleton semi trailer supports 20/40/45 feet length customization, axle options of 2/3/4 axles, and load capacity covering 20-80 tons. It can also be equipped with different numbers of twist locks and suspension systems according to demand, suitable for container transportation in African ports, logistics parks, and other scenarios, meeting diverse transfer needs.
Applications
Port Container Transfer: Connecting sea and land transport, completing port-to-inland yard transfer.
Cross-Border Road Transport: Suitable for African cross-national highways, enabling trunk transport between multiple countries.
Internal Container Dispatching: Efficiently handling container loading and unloading within African logistics hubs, ports, or terminals.
Specifications
Length: 20/40/45 feet (customizable)
Load Capacity: 20-80 Tons
Axles: 2/3/4 axles, 13/16T per axle, FUWA/BPW
Type: Gooseneck or Tandem
Main Beam Material: Q345/T700
Twist Lock Configuration: 4-12 sets
Suspension System: Mechanical Suspension / Air Suspension
Braking System: Drum Brake (with ABS anti-lock)
Tire: 12R22.5 (8/12/16 Pieces)
King Pin: #50 (2") / #90 (3.5"), JOST/Other Brand
Landing Gear: 28 Tons Two Speed, JOST/Other Brand
Painting: Electrophoresis Painting
Price Range
As a semi trailer factory, we offer competitive prices for this skeleton semi trailer. Since different configurations result in different prices, our skeleton semi trailer price range is USD 6,000 - 15,000. Different trailer lengths, axles, material standards, and customized functions will cause price differences due to variations in material costs and process complexity.
If you want to purchase a skeleton semi trailer at a favorable price, or cooperate directly with the semi trailer factory, please contact us via website message or WhatsApp (+86-18866100060).

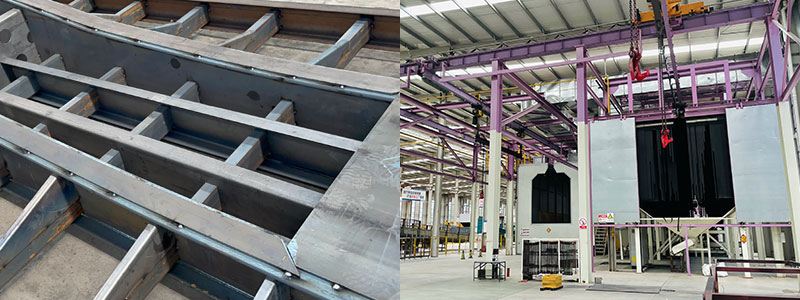

Our Core Technology
Welding Process: CNC automatic welding equipment is used to continuously weld the connection between the main beam and cross beam. The weld seams have uniform penetration with no missing or false welding defects. After welding, X-ray flaw detection is carried out to ensure no internal hidden dangers, enhancing frame torsion resistance and load capacity, suitable for Africa’s complex road conditions.
Painting Process: The trailer body surface is first polished at high speed by a shot blasting machine, thoroughly removing oxide scale and forming a uniform rough surface. Then, anti-rust primer and weather-resistant topcoat are sprayed. The coating has strong adhesion and high scratch resistance, resisting Africa’s high temperature and rainy climate, providing long-lasting rust protection, and reducing later maintenance costs.

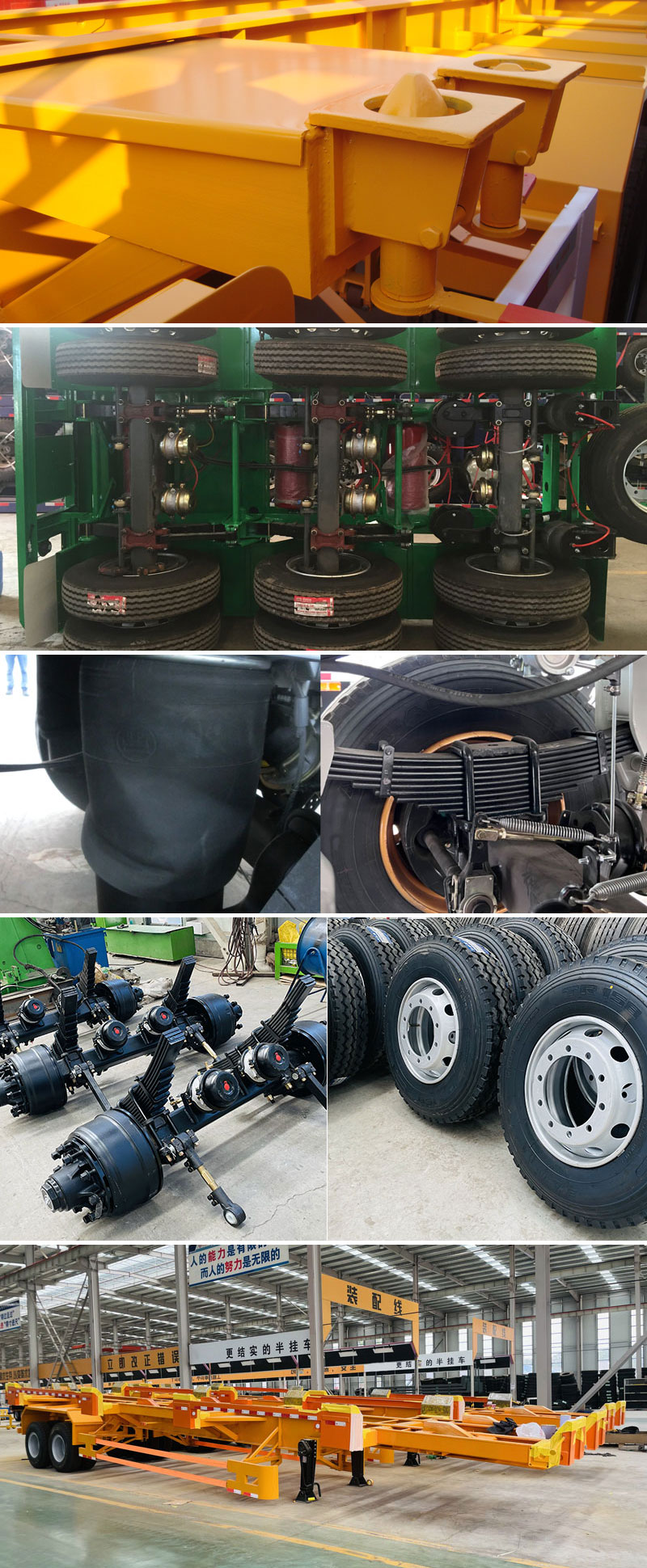

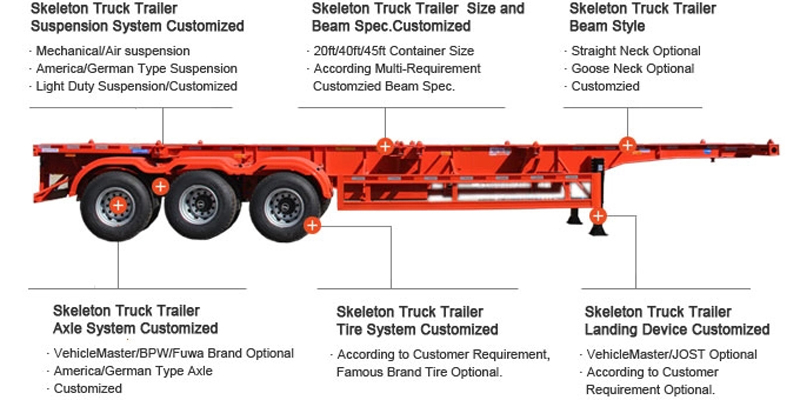

Main Features
Length Customization: Precisely adapted to 20/40/45 feet container sizes, ensuring tight fitting between container and skeleton, with no shaking during transport. Suitable for container size requirements of different African ports and yards.
Main Beam Material: Made of Q345/T700 high-strength steel, with structural reinforcement for Africa’s bumpy roads. It improves bearing and torsional strength and is not easily deformed after long-term use.
Axles: Equipped with well-known brand axles, never using false-rated axles. Outstanding load-bearing performance to withstand the impact of gravel roads in Africa, reducing failure rates.
Twist Locks: Configured with 4-12 sets of twist locks according to container size, evenly distributed at fixed positions. Strong locking force firmly secures the container, preventing displacement or falling during bumpy road conditions.
Posts and Rails: Optional detachable reinforced posts and side rails for temporary internal transfer fixing, improving loading/unloading efficiency and practicality.
Equipped with LED Lights and Reflective Strips: The trailer is equipped with high-brightness LED lights, with reflective strips added to both sides of the body, improving visibility in nighttime or low-visibility conditions and ensuring driving safety.

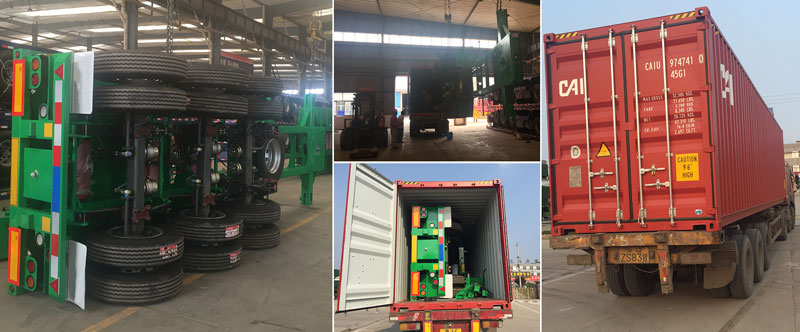

Delivery Details
According to the specifications of the skeleton semi trailer, container or stacked transport is adopted. Twist locks, posts, and other vulnerable parts are wrapped with shock-proof foam and fixed to prevent collision damage during transportation, ensuring the equipment arrives intact.
Based on the customer’s destination, we usually adopt sea transportation, followed by road or railway transfer to the destination. The cargo status is tracked throughout the journey to ensure safe and timely delivery.
Contact Us
We are a semi trailer manufacturer. By purchasing skeleton semi trailers directly from us, customers can enjoy factory-direct prices, eliminating middlemen markups, and gaining higher investment value. We also provide African road condition adaptation advice and after-sales support. You are welcome to contact us at any time, and we will provide professional services. You can reach us through website message or WhatsApp (+86-18866100060).
