Trip-axle Flatbed Trailer for Sale
Vehicle Master sells this trip-axle flatbed trailer at factory prices. Our flatbed trailers are manufactured using high-quality steel materials and advanced automated welding processes, ensuring outstanding structural strength and overall quality. The open platform design makes it suitable for transporting containers, machinery equipment, and other irregular-sized cargo.
As a semi-trailer factory, our Flatbed Trailer can be adjusted according to customer requirements and offers a wide range of customization services. The standard trip-axle version supports 40/45/48 ft specifications, while 2/4/5 axle configurations are also available, Lengths can be customized from 20–60 ft to meet load requirements ranging from 20–80 tons. Optional fittings include container twist locks, stakes, and lashing points. The suspension system can be mechanical or air suspension, fully meeting diverse transportation needs.
Applications
Container Transportation: Suitable for transporting all types of standard containers, equipped with dedicated twist locks.
Machinery Equipment Transportation: Ideal for transporting construction machinery, generator sets, and factory equipment.
Building Material Delivery: Used for transporting steel beams, precast concrete components, pipes, timber, and other construction materials.
Irregular Cargo: Suitable for transporting irregular-shaped cargo, with multiple lashing points to ensure transport stability.
Specifications
Model: Trip-axle Flatbed Trailer
Main Beam Material: Q345 / T700 high-strength steel
Standard Axles: 3 axles, 13/16 tons per axle, German-type / American-type axles
Standard Length: 40 ft (12400mm)
Optional Axles: 2 / 4 / 5 axles
Optional Lengths: 20 / 45 / 48 / 53 / 60 ft
Standard Width: 2500mm
Deck Height: 1300mm
Custom Load Capacity: 20–80 tons
Type: Gooseneck Type / Tandem Type
Tire Specification: 12R22.5
Tire Quantity: 12 units (trip-axle configuration, 4 tires per axle)
Brake System: WABCO air brake + ABS
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Ton Two Speed, JOST / Other Brand
Twist Lock: 12 sets (customizable)
Vehicle Painting: Electrophoresis painting
Price Range
As a semi-trailer factory, the price range of this trip-axle flatbed trailer is USD 7,000–15,000. Price differences are mainly determined by the following factors: the grade and quantity of steel used for the main beam and body, the overall vehicle length and rated load capacity, the brands and specifications of tires, fixing accessories, axles, lighting systems, and other components, as well as the number and complexity of optional additional features (such as advanced lashing devices and special coatings) selected by the customer.
If you would like to obtain our product brochure or purchase this trip-axle flatbed trailer at factory price, please contact us via the message board at the bottom of the website or via WhatsApp (+86-18866100060).
Core Manufacturing Processes

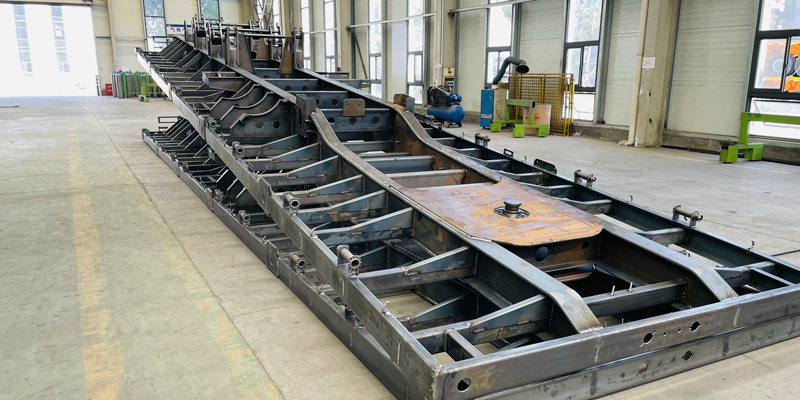

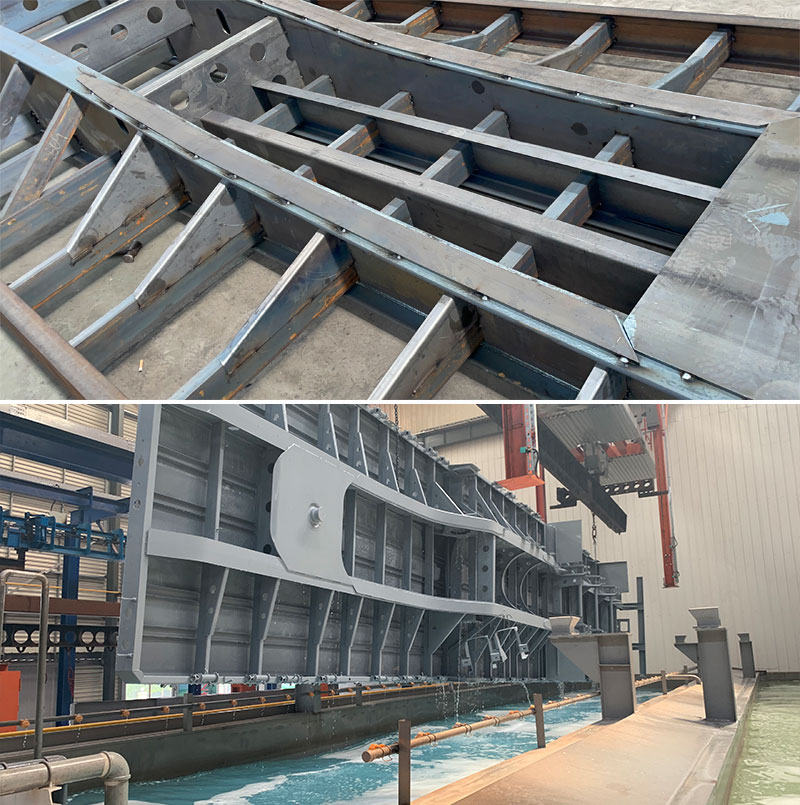

Welding: Automatic submerged arc welding combined with manual supplementary welding is adopted. Automatic submerged arc welding is used for main load-bearing structures such as the main beams, featuring sufficient penetration depth and uniform weld formation. The resulting weld seams are dense and strong. For weld joints, corners, and other critical areas, experienced welders perform precise manual supplementary welding to ensure there are no weak welding points in the entire frame, greatly enhancing the vehicle’s durability and fatigue resistance.
Painting: High-end electrophoresis painting technology is used. After rust removal, phosphating, and other pretreatment processes, the trailer is immersed in an electrophoretic paint bath. Through the action of an electric field, the paint film achieves 360-degree, dead-angle-free coverage with extremely strong adhesion and is not easy to peel off. This process provides excellent scratch resistance, effectively resisting minor impacts, wear, and corrosion from complex environments, thereby extending the service life of the entire vehicle.

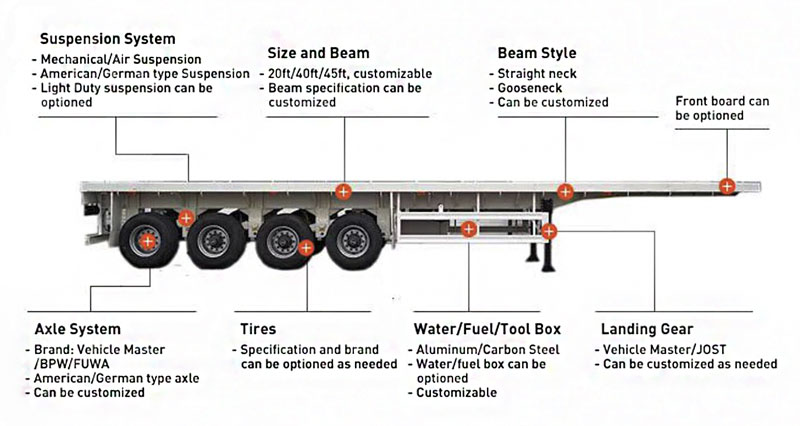

Main Features
Main Beam Material: Made of Q345 / T700 high-strength steel, offering high strength and good toughness to ensure transportation safety.
Length and Load Customization: Flexible adjustment according to actual cargo dimensions and load, providing length options from 20–60 ft and load capacities from 20–80 tons.
Floor: Checkered steel floor design increases friction between cargo and deck, preventing cargo from sliding during transportation.
Open Deck: Fully open deck design facilitates loading and unloading of large, heavy, and irregularly shaped cargo.
Fixing Options: Equipped with twist locks, removable stakes, and lashing points, allowing flexible securing methods for different cargo types.

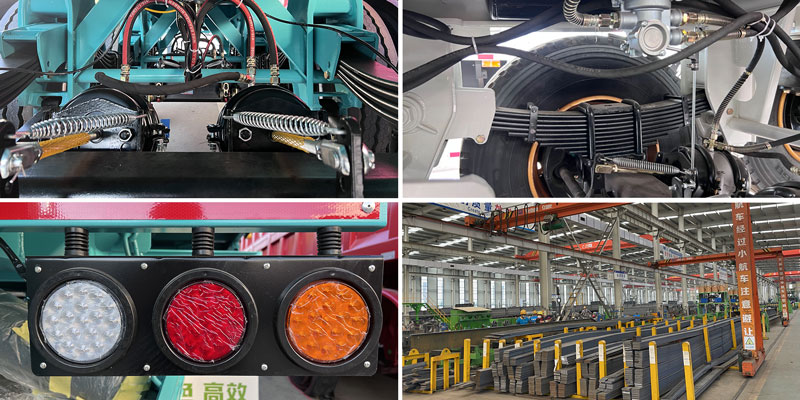

Suspension System: Mechanical and air suspension options are available. Mechanical suspension features a simple structure and easy maintenance, while air suspension provides better shock absorption.
LED Lights and Reflective Tape: The entire vehicle is equipped with LED lights and reflective tape to ensure good visibility and enhance nighttime transportation safety.
Our Advantages
Factory Price Advantage: As a semi-trailer factory, we offer factory-direct pricing, ensuring customers can purchase high-quality flatbed trailers at the most competitive prices.
Free Customization: Based on your specific cargo and road conditions, we provide professional free customization design services to precisely match real operating scenarios.
Warranty: When purchasing our flatbed trailers, we provide one-year free warranty for all non-human-caused quality issues.
Spare Parts Supply: Lifetime spare parts supply service is provided, with genuine quality parts and timely availability to ensure long-term stable operation of the vehicle.
Contact Us
If you are looking for a strong, reliable, and cost-effective trip-axle flatbed trailer, Vehicle Master is your ideal choice. We provide professionally customized solutions at factory-direct prices. If you have purchasing needs or would like to learn more about detailed specifications, customization options, and accurate quotations, please contact us. Our professional team is always ready to serve you.
You can contact us via the message board at the bottom of the website or via WhatsApp (+86-18866100060).
