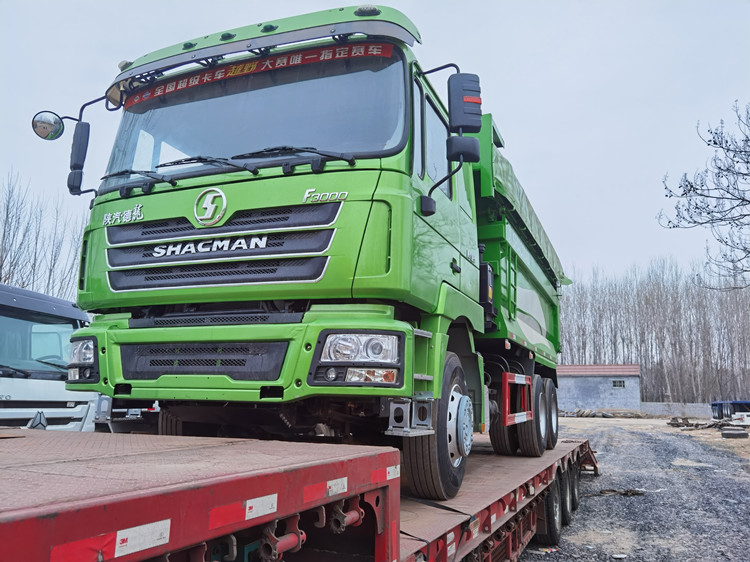

Used 6x4 Dump Trucks for Sale

Used 6x4 Dump Trucks for Sale
Used 6x4 Dump Trucks for Sale
Used 6x4 Dump Trucks for Sale
Used 6x4 Dump Trucks for Sale
Used 6x4 Dump Trucks for Sale
FOB Price:
USD16,500.00-USD26,990.00
Production Time:
Approximately 30 Working Days
Packaging:
SKD/CKD
Shipping Method:
Sea/Land
Material:
Q345B (Customizable)
Axles:
1, 2, 3 (Customizable)
Warranty:
Limited Warranty
Brand:
Vehicle Master

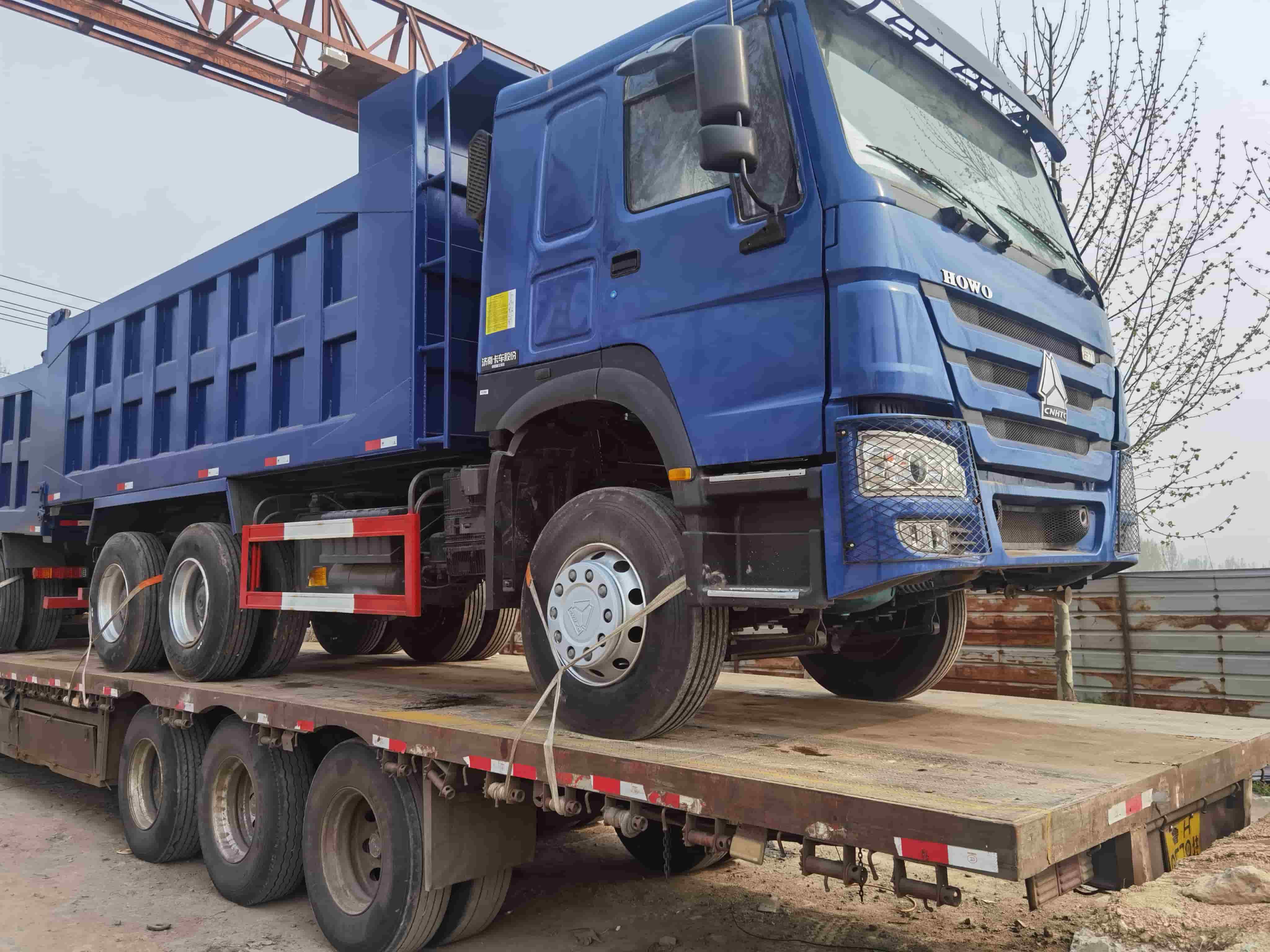

A dump truck is a vehicle that unloads goods by itself by hydraulic or mechanical lifting system. Also called tipper truck. Used 6x4 dump trucks for sale is composed of truck chassis, hydraulic lifting system, cargo carriage box and power take-off device. In civil engineering, dump trucks often work in conjunction with construction machinery such as excavators, wheelloaders,and belt conveyors to form a loading,transportation,and unloading production line for the loading and unloading of earthwork,sand,and bulk materials.

Used 6x4 Dump Trucks for Sale

  • A dump truck is a vehicle that unloads goods by itself by hydraulic or mechanical lifting system. Also called tipper truck.

  • Used 6x4 dump trucks for sale is composed of truck chassis, hydraulic lifting system, cargo carriage box and power take-off device. In civil engineering, dump trucks often work in conjunction with construction machinery such as excavators, wheelloaders,and belt conveyors to form a loading,transportation,and unloading production line for the loading and unloading of earthwork,sand,and bulk materials.

Used-6x4-Dump-Trucks-for-Sale .jpg


Used Dump Truck Technical Specifications

Truck Model

ZZ4257S3241W

Truck Brand

SINOTRUK-HOWO

Driving Style

Left Hand Driving

Dimension (L, W, H, unloaded)

6985x2496x3850

Curb weightkg

9000

Loading Weightkg

25000

Engine

(Steyr technology, made in China)

Brand

SINOTRUK

Model

WD615.47 water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Fuel type

Diesel

Horse Power (Max)

371HP

Emission

EURO II

Transmission

Model

HW19710

10 forwards and 2 reverse

Front Axle

HF9

Rear Axle

HC16

Number of Axles

3

Tire Quantity

10, 1 spare


6x4 Dump Trucks Operation Principle

  • The diesel engine, chassis and cabin of 6x4 dump trucks are as same as a general truck.

  • The 6x4 dump trucks high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and there is a cab safety protection plate at the front end of the carriage.

  • The engine of the 6x4 dump trucks drives the hydraulic pump through the transmission and the power take-off device. The hydraulic tilting system is composed of a fuel tank, a hydraulic pump, a distribution valve, a lifting hydraulic cylinder, a control valve and an oil pipe.

  • The engine of the 6x4 dump trucks drives the hydraulic pump through the transmission and the power take-off device, and the high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and pushes the piston rod to overturn the carriage box. End tipping is more common, and the movement of the piston rod is controlled by the steering system to stop the carriage box in any desired tilted position. The carriage box is reset by using its own gravity and hydraulic control.

a7 tipper_副本.jpg

8x4 371 tipper truck_副本.jpg


Used Trucks for Sale in Nigeria

Used trucks are hot for sale in African countries.  Used dump trucks are selling well in Nigeria, Zambia, etc, which could save a lot of costs and meet with the basic transportation purpose. We usually examine the trucks in good conditions before shipping from our factory. And repair and maintain all the engine parts, transimisson system, brake system, air circuits, electric system, cabin inside decoration, to guarantee the good performance.



Used Dump Trucks for Sale with Giving Wearing Spare Parts Freely.

Our used dump truck is good for sale type in African. With ordering our dump trucks, we will allocate a tool box of wearing spare parts in accordance with the clients' using habits, transportation conditions and dump truck configurations, which are offered to customers as free of charge, such as oil filters, air filters, brake chambers, brake lining for axles, electric system, LED lights, side maker lights, front maker lamp, real lamp, wiring, and reflectors.

wearing spare parts_副本.jpg


No article.
No article.

Send a Message

If you want to ask anything just fill in the form below and send us.

Name: Cary U.        time:2022-06-14 10:11:40
Received these used dump trucks. The trucks are 80% new and the performance has been tested - very good. Also Gave Wearing Spare Parts freely. Worth the money!
