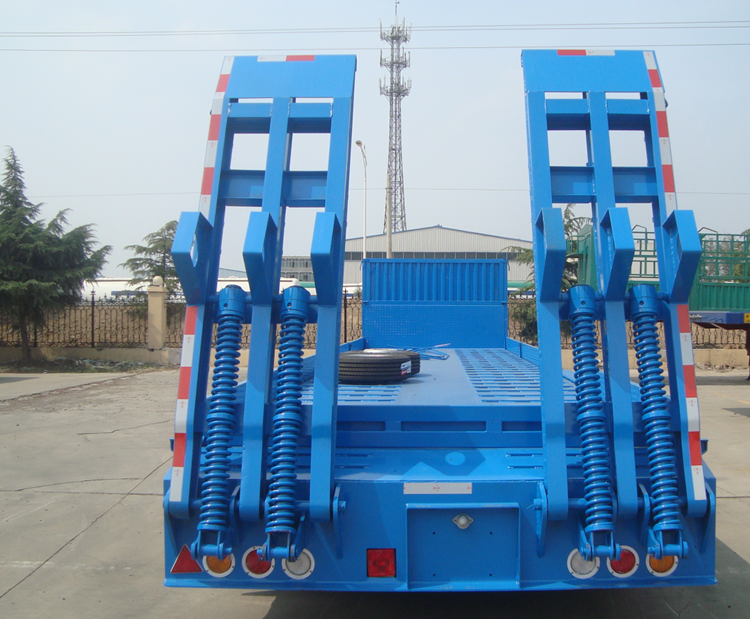

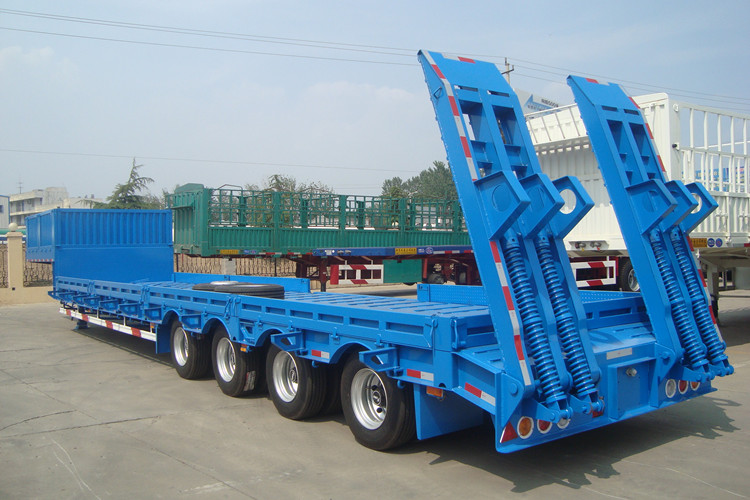

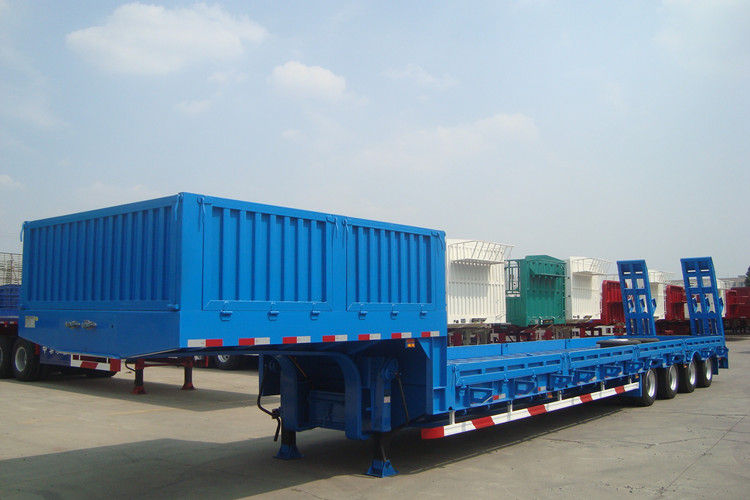

16 Wheel Lowbed Trailer for Sale
Lowbed trailer is one of our hot for sale truck trailer types. 16 Wheel Lowbed Trailer for Sale is widely
exported to Vietnam, Philippine, Africa, such as Tanzania, Kenya, Republic of Congo, DRC, Tema, Burkina Faso,
etc. It is mainly used to transport large mechanical equipment, such as excavator, bulldozer, roller, etc.
The suspension is independently developed to minimize tire wear and reduce fuel consumption. Each weld is
completed by professional welding technicians with welder certificates to ensure perfect details. The hydraulic
ladder can be optional, with or without exposed tires. The tire model can be selected according to the height
requirements of the cargo loading platform.
Lowbed Trailer for Sale Technical Configurations.
3 Axles Low Bed Semi Trailer | 4 Axles Low Bed Semi Trailer | ||
Brand: | VEHICLE MASTER | Brand: | VEHICLE MASTER |
Application: | Heavy Duty Loading | Application: | Heavy Duty Loading |
Axles: | 3 Axles | Axles: | 4 Axles |
Loading Capacity: | 60-120 Tons | Loading Capacity: | 60-150 Tons |
Length*Width*Height: | 13000*3000*900mm | Length*Width*Height: | 13000*3000*1100mm |
Ladder: | Mechanical Spring/Hydraulic | Ladder: | Mechanical Spring/Hydraulic |
Goose Neck Detachable: | Available | Goose Neck Detachable: | Available |
Multi-Axles: | Available | Multi-Axles: | Available |
Steering Axles: | Available | Steering Axles: | Available |
Tire Style: | Covered or Uncovered | Tire Style: | Covered or Uncovered |
OEM/ODM: | Available | OEM/ODM: | Available |
Item | Spec. | ||
Main Beam | Material:Q345/T700 | ||
Height:500mm | |||
Upper Plate:22mm | |||
Middle Plate:18mm | |||
Lower Plate:25mm | |||
Platform Thickness: | 4mm | ||
Axle: | 3/4 Axles *13/16 Ton Vehicle Master/FUWA/BPW/Other | ||
Tire: | 12R22.5/8.25r20 (12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | ||
Rim: | 9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum | ||
Leaf Spring: | 90mm*13mm*10/90mm*16mm*10 | ||
Suspension System: | Mechanical or Air Suspension | ||
Ladder: | Mechanical Spring/Hydraulic | ||
Kin Pin: | 50#(2")/90#(3.5") JOST/Other Brand,Changeable | ||
Landing Gear: | 28 Tons Two Speed,JOST/Other Brand | ||
Tool Box: | Steel or Aluminum | ||
Low Bed Trailer Technical Drawing
_副本740782.jpg "1649665716(1)_副本740782.jpg")
From this draw we can see the overall dimension of this low bed trailer is 16620mm x 3000mm x 953mm.
The load capacity is 80Tons, application is for excavator and construction transportation. The tires are not
covered by the upper loading platform. So the valid working platform length is 7340mm, so we have to
consider about concerntrating loading. This 16 wheel lowbed trailer is assembly 4 axles, axles brand FUWA,
BPW are optional, axle load capacity is 11.5T, 13T and 16T optional. Tires are equipped with 235 75R16,
245 70R22.5, 295 60R22.5, 315 80R22.5, 12R22.5, 12.00R20 etc.
16 Wheel Low Bed Trailer Advantages
1. Vehicle master is a historical manufacturer of truck trailers, from the year of 1995s.
2. Advanced research and designing standards that is controlled by our experienced international and domestic
engineers and technicians team, 16 wheel low bed trailer could be produced as customized.
3. Strictly control the procurement of raw materials which insure the enough thickness of the steel, and increase the toughness and strength of the trailer frame and beam.
4. Heavy duty load capacity of 16 wheel low bed trailer-By adopting the innovation of high-strength steel and concave-
convex through-beam structure, the same load capacity is maintained while reducing the self-weight. It is also unique in reducing fuel consumption and reducing tire wear.
5. 16 wheel low bed trailer parts standard: select trailer accessories according to American Transportation Association
(DOT) and China Quality Management System Standard (ISO)
6. 16 wheel low bed trailer welding standard: First-class automatic welding equipment production line, equipped with excellent national first-level welders.
7. 16 wheel low bed trailer paint standard: a new generation of complete low bed trailer electrophoresis paint, which is
greatly improved, without paint stripping, corrosion resistance, and can be maintained for at least seven years without
any damage.
8. 16 wheel low bed trailer perfect inspection and testing system: we have a special vehicle inspection line, physical and chemical room, and strictly follows the national special vehicle test standards
