Do you need efficient container transportation? Are you looking to purchase a container chassis trailer at a competitive price?
We are a semi trailer manufacturer and distributor, selling 20/40ft container chassis trailers at factory-direct prices. Customers can communicate directly with our engineers to accurately customize specifications and details, ensuring the trailer meets various transportation requirements.

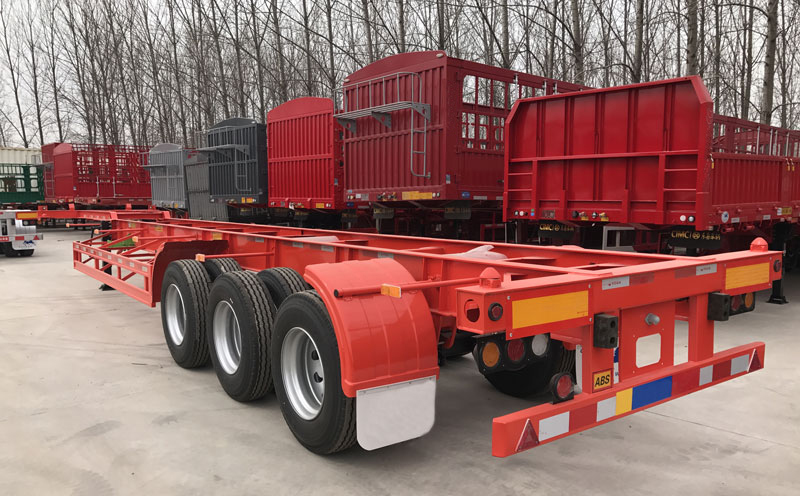

This 20/40ft container chassis trailer can flexibly transport 2-20ft containers or 1-40ft container, offering excellent adaptability. It can be configured with 2/3/4 axles and a load range of 20–60 tons. Personalized options such as suspension types, twist locks, and extendable designs are available. It is widely used for long-distance container transportation and short-distance transfers within ports, balancing efficiency and stability.
Applications
Port Logistics: Transporting standard shipping containers, refrigerated containers, tank containers, and more.
Modular Construction: Carrying modular building components, adapted to component dimensions, ensuring smooth transportation.
Long Material Transportation: With fixing accessories, suitable for transporting steel pipes, I-beams, and other long materials.
Internal Port Transfer: Equipped with dedicated guide rails, adapted to port yards for flexible and convenient dispatching.
Industrial Logistics: Transporting generator containers, equipment protection boxes, and other special containers.

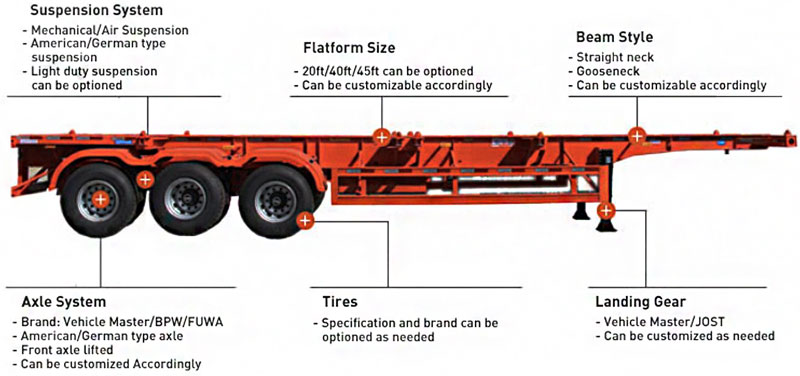

Specifications
Model: 20/40ft Container Chassis Trailer
Size: 20/40ft
Customizable Size: 45ft and longer
Compatible Containers: Two 20ft or one 40ft
Axle Configuration: 2/3/4 axles (optional)
Axle Specification: 13/16 tons per axle, FUWA / BPW
Load Range: 20–60 tons
Main Beam Material: Q345 / T700
Tire Specification: 12R22.5
Tire Quantity: 8 / 12 / 16 pieces (4 tires per axle)
Spare Tire Quantity: Generally 2 pieces
Braking System: WABCO air braking + ABS
Suspension System: Mechanical suspension / Air suspension
Twist Lock Quantity: 8–12 sets (customizable)
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Tons Two Speed, JOST / Other Brand
Price Range
As a semi trailer factory, we offer this 20/40ft container chassis trailer in a price range of USD 6,000 – 15,000.
The price is mainly determined by factors including steel grade, axle configuration and load specification, whether extendable or semi-platform customization options are selected, twist lock and guide rail configurations, coating type (standard polyurethane or high-end electrophoresis), as well as the customer’s purchase quantity.
If you would like to purchase a container chassis trailer at a favorable price or obtain the latest quotation, please contact us via website inquiry or WhatsApp (+86-18866100060).
Core Manufacturing Process
Welding: Automatic submerged arc welding combined with manual repair welding is adopted. The main beam uses automatic submerged arc welding with a stable and controllable welding process, uniform weld formation, and sufficient penetration, significantly improving structural strength and durability. Other complex parts are reinforced by experienced technicians through manual welding to ensure long-term heavy-load transportation suitability.
Painting: The standard version uses polyurethane painting, while the premium version adopts electrophoresis painting. Polyurethane painting features strong coating adhesion, excellent scratch resistance, and outstanding anti-rust performance, meeting regular usage requirements. Electrophoresis painting provides 360-degree coverage without blind spots, offering superior rust and corrosion resistance and extending the service life of the trailer.
Customization Options We Offer
Extendable Design: Supports extendable length customization to flexibly adapt to different container sizes, improving equipment utilization and transportation economy.
Semi-Platform: Optional semi-platform design balances container transportation with small cargo carrying capability.
Twist Lock Configuration: Customizable with 4–12 sets of container twist locks, ensuring reliable fixing performance and enhanced transportation stability.
Stakes and Guide Rails: Adapted for internal port transfers, enabling precise container positioning and dispatching, reducing operation time.
Tires: High-quality radial tires with excellent wear resistance, puncture resistance, and strong load-bearing capacity.
Suspension: Mechanical suspension and air suspension options are available. Mechanical suspension offers strong durability and better cost-effectiveness, while air suspension provides improved stability.
Advantages of Choosing Us
Factory Direct Sales: Customers can purchase directly from us at factory prices with stronger cost competitiveness and direct communication with engineers for customization solutions.
After-Sales Service: We provide a one-year quality warranty and guarantee long-term, stable supply of original standard spare parts to ensure smooth fleet operation throughout the vehicle’s life cycle.
Payment Methods: Flexible payment options such as telegraphic transfer and letter of credit are available to suit different trading habits.
Worry-Free Transportation: We provide full logistics solutions from Chinese ports to designated destination ports, ensuring safe and on-time delivery of the equipment.
Contact Us
By choosing us as your 20/40ft container chassis trailer supplier, you can enjoy factory-direct pricing, professional customization, comprehensive after-sales support, and worry-free transportation services. If you have purchasing needs, would like to consult customization solutions, or request a detailed quotation, feel free to contact us at any time. We are committed to providing high-quality service and supporting efficient container transportation. You can contact us via website inquiry or WhatsApp (+86-18866100060).
