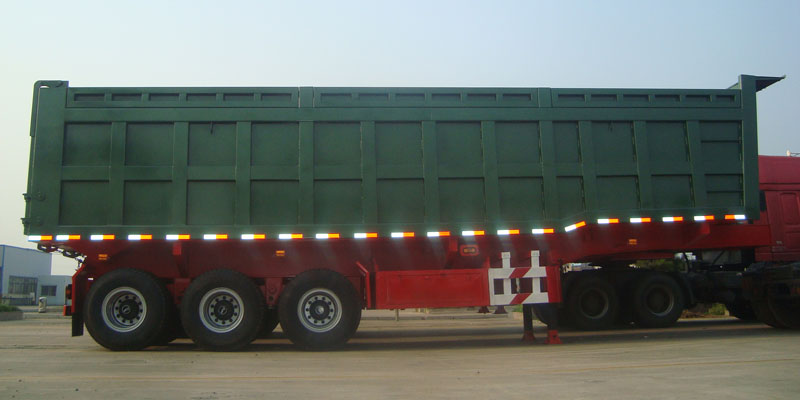

3 Axle 40CBM Tipper Semi Trailer for Sale
This 3 axle 40CBM tipper semi trailer is manufactured by Vehicle Master. It is built with high-quality steel and advanced welding technology, delivering strong load performance and a solid, durable structure. As a semi trailer factory, we offer factory-direct pricing to ensure outstanding performance and high return on investment.
As a tipper semi trailer manufacturer, we provide personalized customization options. The load capacity can be adjusted from 30–100 tons, with 2/3/4/5 axle configurations matched according to the required payload. You can also choose between a rectangular or U-shaped cargo box, and hydraulic cylinder specifications can be customized to perfectly suit your operational conditions.
Application
Sand and Gravel Transport: Efficiently transports construction aggregates such as sand, gravel, and crushed stone.
Grain Handling and Transport: Transfers corn, wheat, and other grains with fast unloading and low residue.
Mining Ore Transport: Suitable for iron ore, coal, limestone, and other bulk mineral materials.
Construction Waste Removal: Quickly loads and transfers construction debris, earthwork, and waste from job sites.
Specifications
Volume: 40CBM
Load Capacity: 50 tons (customizable 30–100 tons)
Axle Configuration: 3 axles (optional 2/4/5 axles)
Axle Rating: 13/16 tons per axle, FUWA/BPW
Main Beam Material: Q345/T700
Cargo Box Type: Rectangular / U-shaped (optional)
Lifting System: HYVA (model according to cargo box length)
Lifting Angle: ≥48°
Braking System: WABCO Air Brake (ABS optional)
Suspension System: Reinforced Mechanical Suspension (Air suspension optional)
Tire Models: 11.00R20 / 12R22.5
Number of Tires: 12 (4 per axle)
Kingpin: #50(2") / #90(3.5"), JOST/Other Brand
Landing Gear: 28T Two-Speed, JOST
Price Range
As a semi trailer manufacturer and supplier, our tipper semi trailer price range is USD 10,000–25,000. The price depends on several main factors, including load capacity (which determines steel consumption), number of axles, axle and hydraulic system brands/models, and additional special customization options (such as heavy-duty configurations, U-shaped box, or reinforced structure), all of which can increase the manufacturing cost.
If you want to purchase this 3 axle 40CBM tipper semi trailer at a factory price, or if you want to customize it according to your needs, please contact us through the website message section or via WhatsApp (+86-18866100060).

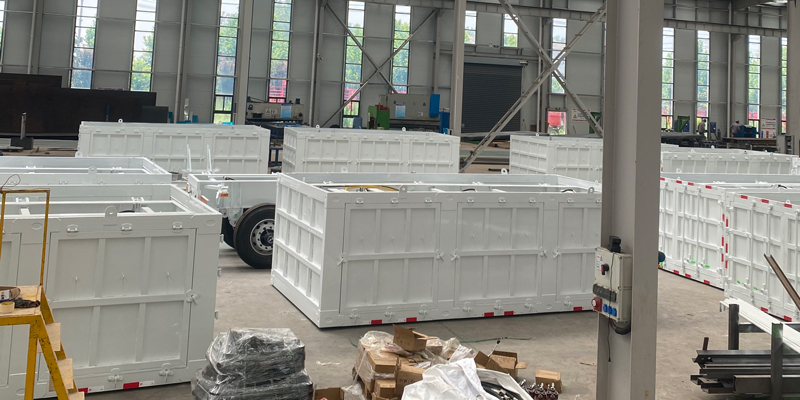

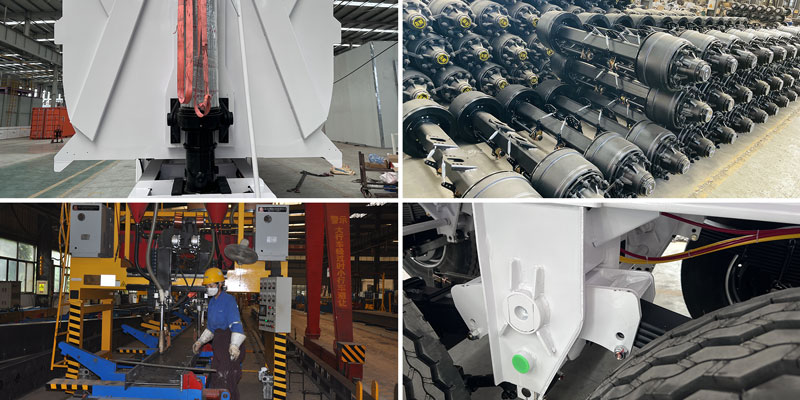

Core Manufacturing Processes
Welding: We use automatic submerged arc welding combined with manual welding. Automatic submerged arc welding is used for the main beam, ensuring uniform penetration and high strength. Skilled welders then manually reinforce all critical stress points with precision finishing. This combined process ensures both production efficiency and exceptional welding reliability, giving the trailer superior fatigue resistance and impact strength.
Painting: High-performance polyurethane coating system. Through multiple layers of spraying and oven curing, a tough and flexible dense coating film is formed. It offers strong adhesion, excellent scratch resistance, and superior anti-stone-chip performance, effectively withstanding impacts from loading/unloading and gravel during driving, while providing long-lasting corrosion protection and a clean appearance.

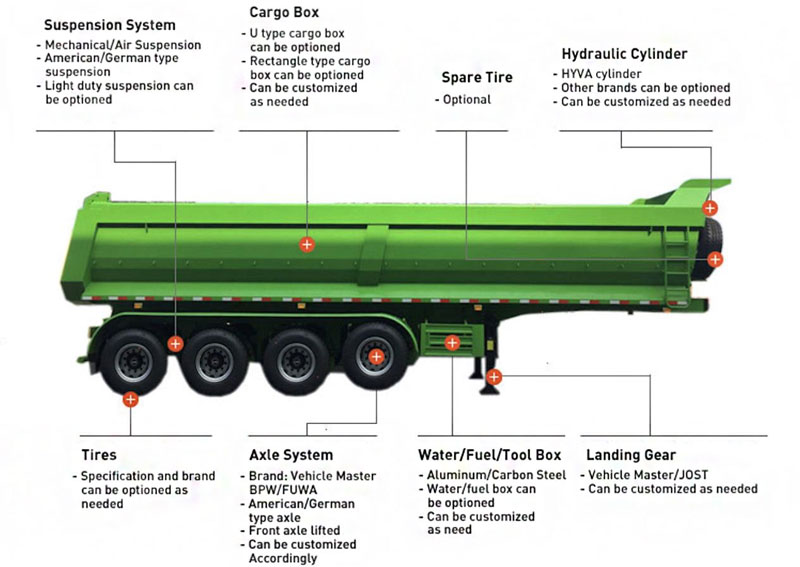

Main Features
Main Beam Material: Made with Q345/T700 high-strength steel for excellent impact resistance and reduced deformation.
Custom Load Capacity: 30–100 ton custom options available to match business needs and cargo density for the most economical configuration.
Axles: American or German 13/16-ton axles available, providing stable load-bearing performance for complex road conditions.
Hydraulic Cylinder: HYVA hydraulic cylinder delivers powerful and stable lifting force, with fast unloading and large lifting angle.
Suspension System: Mechanical or air suspension optional. Mechanical suspension is economical and durable; air suspension offers better shock absorption.
Braking System: Equipped with WABCO air brake system with fast response. ABS can be added to significantly improve safety.
Our Advantages
Factory-Direct Pricing: As a tipper semi trailer factory, you receive direct factory pricing with no middleman markup, giving you a higher return on investment.
Customization Service: We provide free customization options based on your needs, including load capacity, axles, and box type, for a perfectly matched solution.
Warranty Protection: One-year free warranty from delivery date, covering material and workmanship defects for worry-free ownership.
Lifetime Spare Parts Supply: Lifetime supply of original spare parts to ensure long-term stable operation of your vehicle.
Contact Us
Vehicle Master is a leading semi trailer manufacturer. By purchasing our 3-axle 40CBM tipper semi trailer, you can enjoy factory-direct discounts without paying middleman markup, and you can customize configurations according to your operational needs. For detailed configurations, real-time quotations, or to schedule a factory visit, please contact us. Our sales team will fully support you throughout the process.
You may reach us through website message or WhatsApp (+86-18866100060).
FAQ
Q1: What are the advantages of a U-shaped box compared to a rectangular box?
A: The U-shaped box has a curved bottom with no right-angle corners, allowing smoother material flow during unloading with lower residue. Its curved structure also helps distribute stress, improving impact resistance.
Q2: What should be noted in the daily maintenance of the hydraulic lifting system?
A: Regularly check hydraulic oil level and cleanliness to prevent contamination or moisture; lubricate all lifting pivot points on time; avoid prolonged high-pressure operation or overloaded lifting. We provide a full maintenance guide with the trailer.
Q3: For long-term ore transport, what if the cargo box wears out easily?
A: The cargo box can be customized with wear-resistant liners made from high-chromium alloy materials. Their hardness is far superior to regular steel plates and can extend the service life of the box by more than three times, greatly reducing maintenance costs.
Q4: Will the trailer tip over when unloading on soft construction-site ground?
A: You must always ensure the trailer is parked on firm, level ground before lifting. On soft or uneven ground, large lateral forces may cause instability. This is a universal safety requirement for all tipper trailers regardless of model.
Q5: How long is the lead time from order to delivery?
A: For standard tipper semi trailer configurations, production time is typically 30–40 working days. For heavy-duty configurations, special wheelbase, or multi-axle customizations, the lead time may be longer. We will specify the delivery schedule clearly in the contract.
