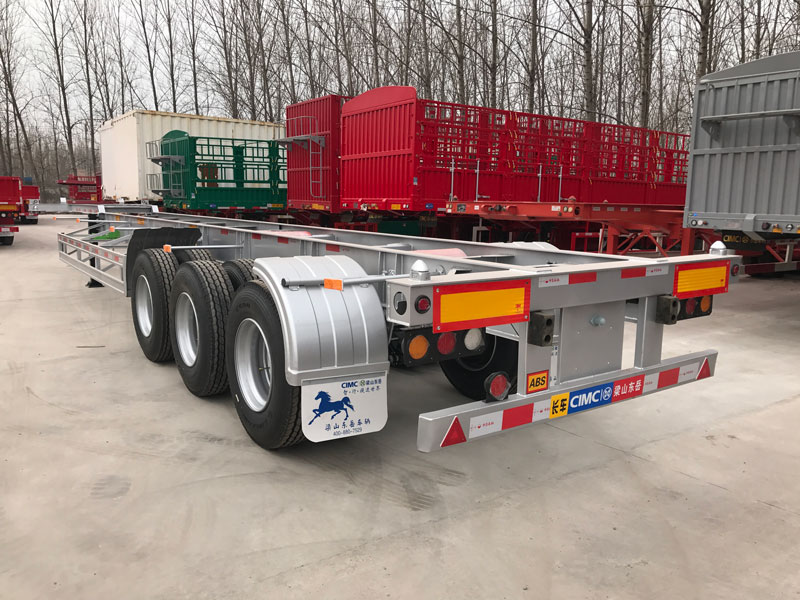

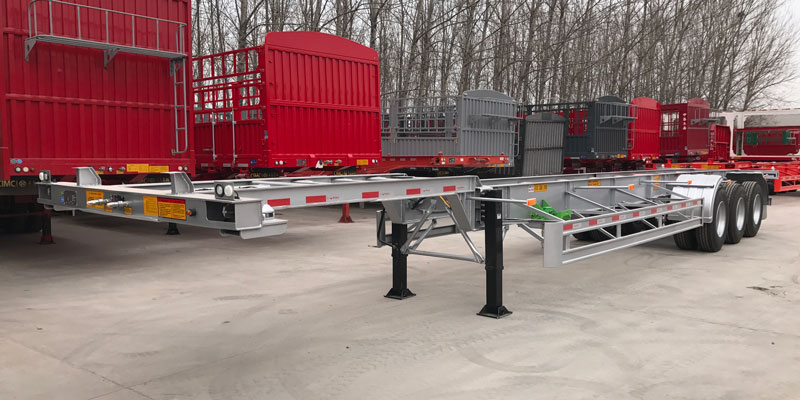

40ft Chassis Trailer for Container
This 40ft chassis trailer for container is manufactured by Vehicle Master. As a professional semi trailer factory, we sell at factory-direct prices and provide customization services upon request, offering reliable container transfer solutions for logistics and freight companies.
As a semi trailer factory, our chassis trailers support customization in 20/40/45ft lengths, with load capacities ranging from 20-80 tons. We provide optional 2/3/4 axle layouts, as well as different specifications of container locking devices and suspension systems, ensuring safe transportation of containers of various weights and sizes.
Application Scenarios
Container Transport: Stable carrying of 20/40/45ft containers for efficient land transfer.
Container Allocation: Quickly completing container scheduling between different warehouses, improving turnover efficiency.
Port and Terminal Internal Transfer: Connecting vessels and yards for short-distance, efficient container handling.
Cross-border Road Container Transport: Compatible with road standards in multiple countries, ensuring smooth cross-border transport of 20/40/45ft containers.
Specifications
Length: 40ft (customizable 20/45ft)
Load Capacity: 20-80 tons
Axles: 2/3/4 axles, 13/16 tons per axle, FUWA/BPW
L*W*H: 12400mm*2480mm*1580mm
Type: Gooseneck or Tandem
Main Beam Material: Q345/T700
Twist Lock Configuration: 4/8/12 pieces
Suspension System: Mechanical Suspension / Air Suspension
Braking System: Drum Brake (with ABS anti-lock braking)
Tire Specification: 12R22.5 (8/12/16 pieces)
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Landing Gear: 28 Tons Two-Speed, JOST / Other Brand
Painting: Electrophoresis Painting
Price Range
The price of this container chassis trailer ranges from USD 6,000 - 15,000. The price is affected by customization requirements: longer size, thicker steel, multi-axle design, air suspension, and additional twist locks will increase material costs and process complexity, leading to higher prices.
If you need to purchase this 40ft chassis trailer, or want to customize a container chassis trailer, please contact us via website message or WhatsApp (+86-18866100060).

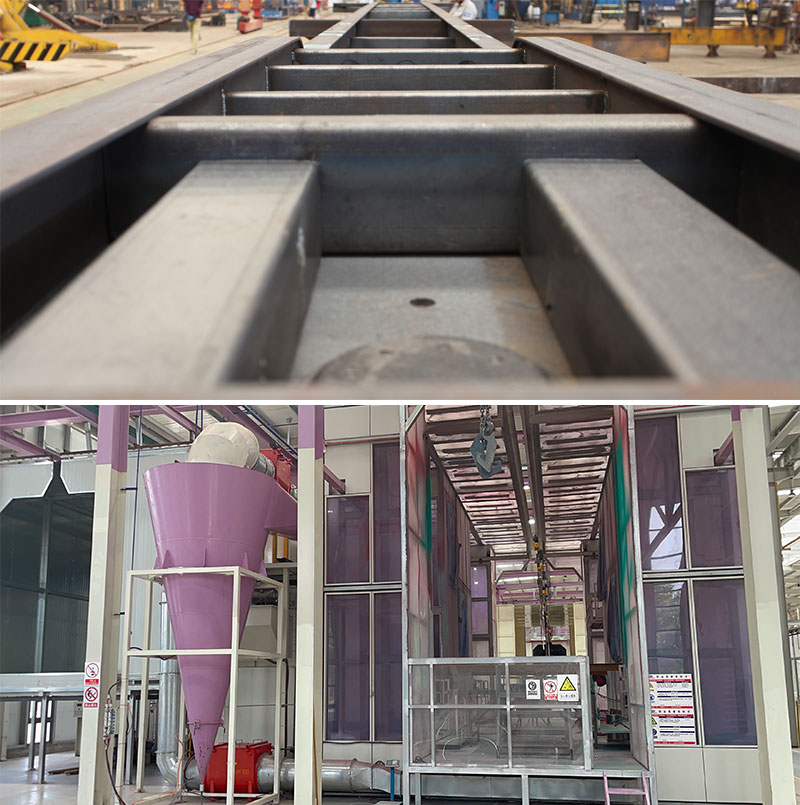

Core Manufacturing Process
Welding Process: Automated welding equipment is used to continuously weld the connections between the main beam and cross beams. Welds have uniform penetration, reaching 6-8mm, without porosity or slag defects, enhancing the torsional and load-bearing capacity of the frame. It can carry containers long-term without deformation, providing excellent durability.
Painting Process: After pretreatment such as degreasing and phosphating, the trailer body is immersed in the electrophoresis tank. Through cathodic electrophoresis, a dense anti-rust coating is formed, making the trailer more scratch-resistant and corrosion-resistant, capable of withstanding humid port environments and road dust erosion, maintaining long-term rust prevention.

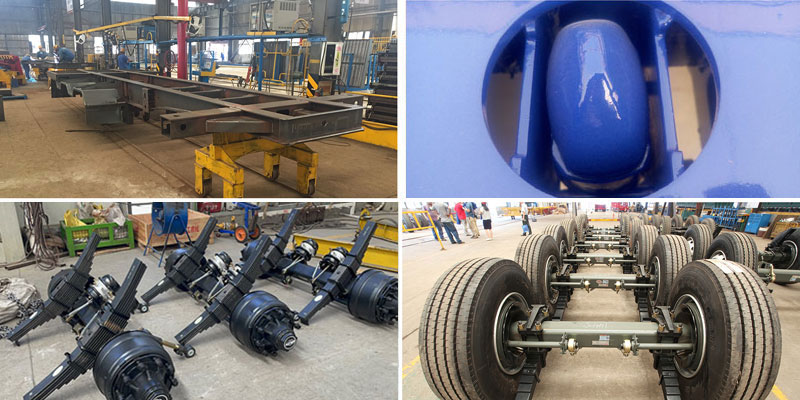

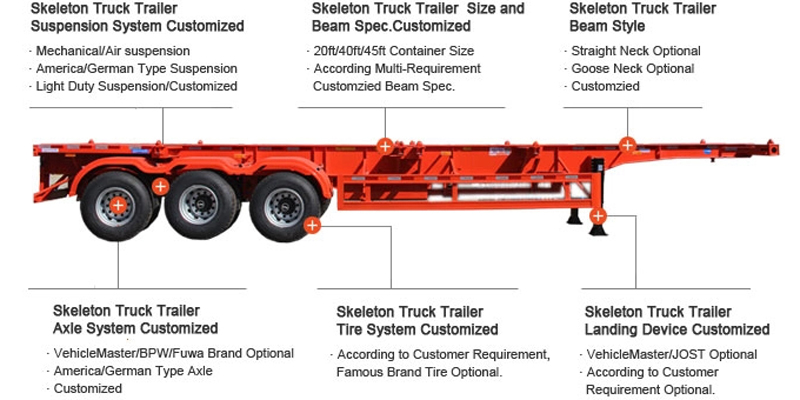

Main Features
Length Customization: Different trailer sizes are available to precisely match 20/40/45ft container dimensions, meeting customer transport requirements for various container sizes.

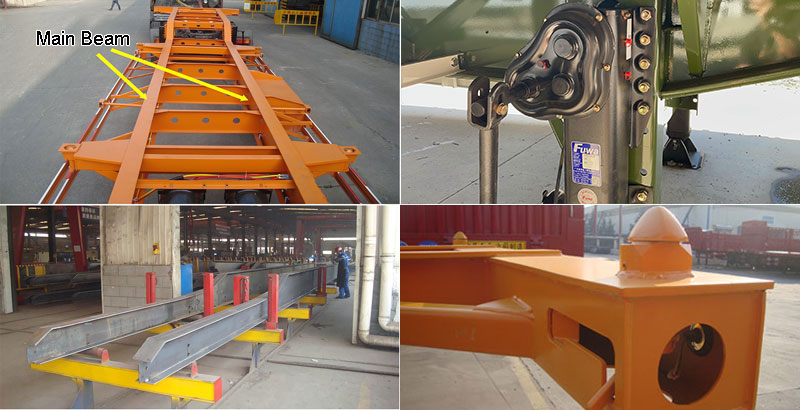

Main Beam: Made of Q345/T700 high-strength steel with strong bending and impact resistance, not easily deformed under heavy load, ensuring container loading safety.
Axles: Equipped with branded axles according to trailer size and load requirements, with outstanding bearing performance, suitable for complex road conditions, reducing failure rate and extending service life.
Number of Twist Locks: 4-12 twist locks can be equipped according to customer requirements, providing strong locking force to firmly secure containers and prevent displacement or falling during transport.
Posts and Guide Rails: A special container securing method used in ports or terminals to improve loading and unloading efficiency and provide fixation. It cannot be used for long-distance transport.
Suspension System: Both mechanical and air suspension are available. Mechanical suspension has simple structure, durability, and low maintenance cost. Air suspension has good shock absorption effect, reducing container bumps and protecting the goods inside.
Braking System with ABS: Equipped with WABCO air brake system with ABS, preventing wheel lock during braking, shortening braking distance, and reducing safety risks.

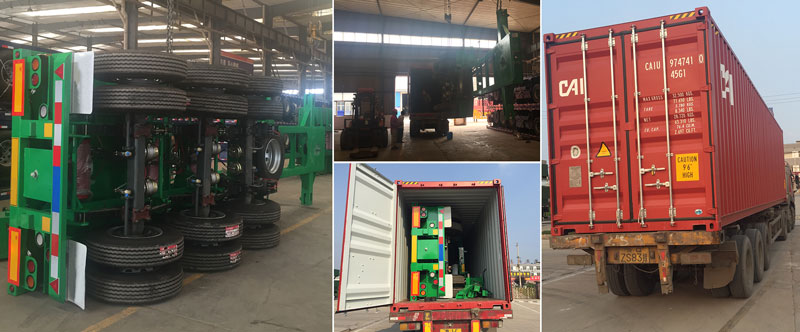

Shipping Details
Depending on the chassis trailer specifications, container or stacking transport is used. Detachable parts such as twist locks and posts are wrapped in shockproof foam and packed in wooden boxes. The main beam and frame are covered with waterproof cloth, with key parts fixed by steel frames to prevent transport collision damage.
Based on customer destination, either single transport mode or multimodal transport combination is chosen. Transportation supports road, railway, and sea freight, with full tracking of cargo status to ensure safe and timely delivery of equipment.
Contact Us
As a semi trailer manufacturer, purchasing this 40ft chassis trailer directly from us allows you to enjoy factory prices, as well as free customization plans and a 1-year warranty service. If you want to know detailed configurations, get a quotation, or visit our factory production process, feel free to contact us. We will provide professional and attentive full-service support. You can contact us via website message or WhatsApp (+86-18866100060).
