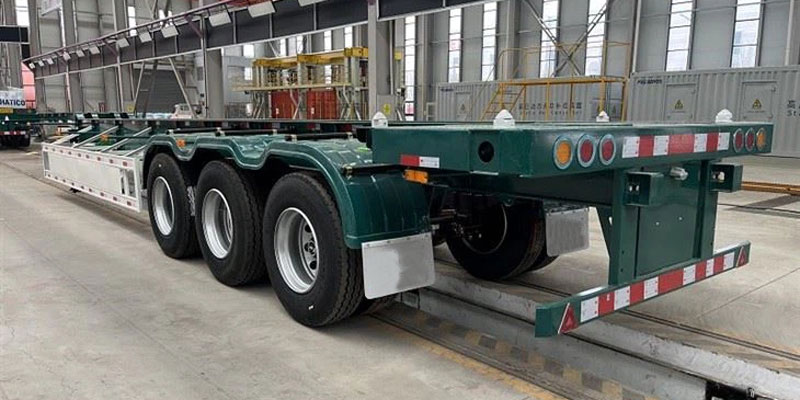

40ft Container Chassis Trailer Price
This 40ft Container Chassis Trailer is available at a factory price. As a semi-trailer factory, our container chassis trailers use high-strength steel main beams, offering excellent structural stability, torsional resistance, and outstanding load-bearing performance. It is a highly cost-effective solution for container transportation.
This 40ft container chassis trailer supports on-demand customization. According to customer transport requirements, we offer 20/40/45 ft and other special length options, equipped with 2/3/4 axles, a load capacity of 20–60 tons, and optional suspension types and twist lock specifications. It is suitable for transporting both international standard containers and non-standard containers.
Applications
Container Transportation: Efficient transfer of corresponding container sizes based on trailer dimensions.
Modular Building Transport: Safe and efficient transportation of prefabricated houses and large building modules.
Steel Transportation: Suitable for transporting long H-beams, steel pipes, rails, and other construction materials.
Port Internal Transfer: Shuttle operations within port terminals for efficient short-distance container handling.
Specifications
Length: 40 ft (12192 mm)
Overall Dimensions: 12400 × 2500 × 1550 mm (standard version)
Custom Lengths: 20 / 45 ft and other special lengths
Axles: 3 axles (2/4 axles optional)
Axle Specification: 13/16 tons, FUWA / BPW
Loading Capacity: 20–60 tons
Main Beam Material: Q345 / T700
Twist Locks: 12 sets
Suspension System: Mechanical suspension / Air suspension
Brake System: WABCO dual-circuit air brake + ABS
Tire Model: 12R22.5
Tire Quantity: 12 tires (4 tires per axle)
King Pin: #50 (2") / #90 (3.5"), JOST
Landing Gear: 28 Tons Two Speed, JOST
Painting Process: Electrophoresis coating
Price Range
As a source semi-trailer factory, the price range of our container chassis semi trailers is USD 6,000–15,000. Price differences mainly result from increased material usage due to different sizes, as well as variations in axle quantity, axle brand, and suspension system type, all of which can increase the overall cost.
If you would like to purchase this container chassis trailer at factory price, or customize it according to your operating needs, please contact us via website message or WhatsApp (+86-18866100060).
Core Manufacturing Processes
Welding: Automatic submerged arc welding technology combined with manual supplementary welding is used. Main structural components such as the main beam are welded automatically to ensure deep weld penetration and seamless fusion with the base material. Other key stress-bearing nodes are finely reinforced by experienced welders through manual welding, ensuring no deformation under heavy loads and improving overall structural stability and service life.
Coating: Electrophoresis coating process is adopted. After multiple pretreatment steps such as degreasing and phosphating, the chassis is coated using cathodic electrophoresis technology to form a uniform anti-corrosion layer. The coating has strong adhesion and fully covers the steel surface, effectively isolating air and moisture. It offers excellent salt-spray resistance, effectively withstanding humid and high-salinity port environments.
Main Features

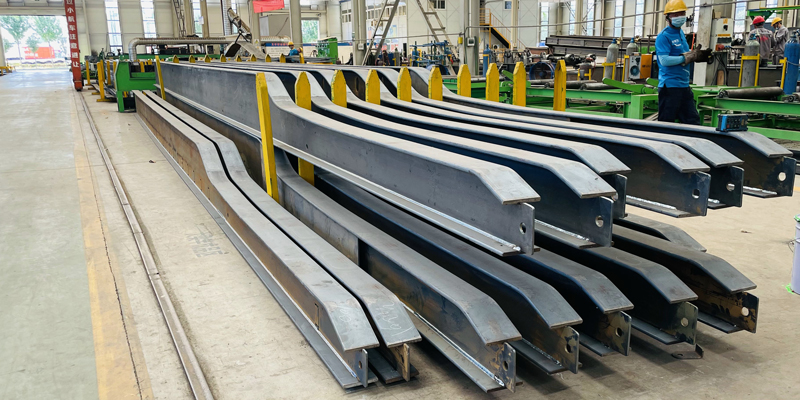

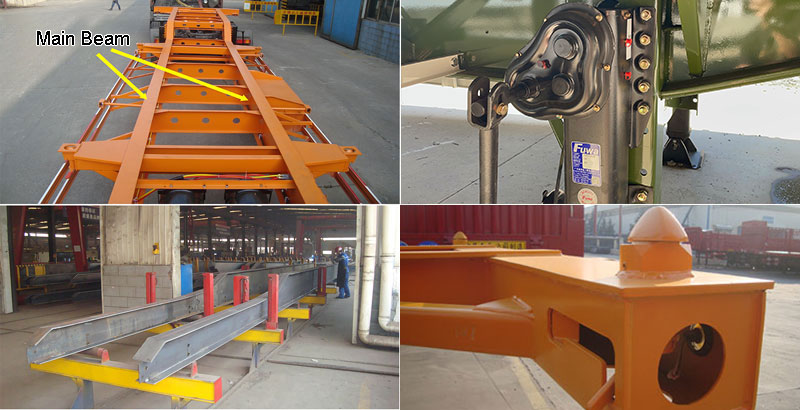

Main Beam: I-beam main beam made of Q345/T700 high-strength steel, ensuring strong load capacity and resistance to bending or deformation under heavy loads.

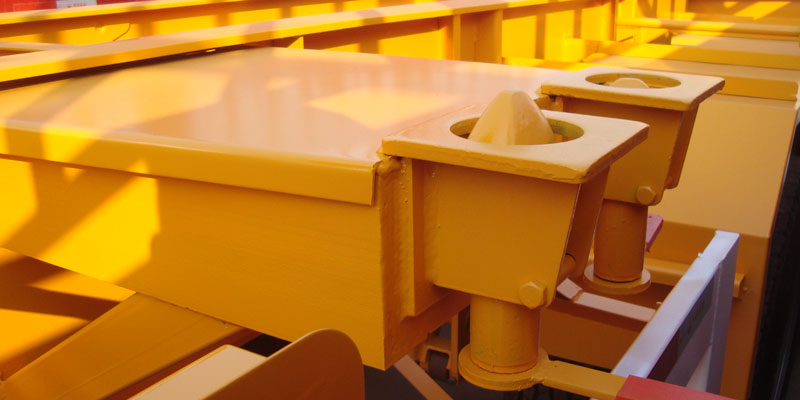

Twist Locks: Equipped with 12 container twist locks for easy operation and quick, accurate locking of containers of different specifications.
Posts and Guide Rails: Designed for internal port transfer needs, enabling fast lateral protection and fixation of containers or cargo with different widths.
Wear-Resistant Tires: Uses well-known brand tires with deep tread patterns and strong wear resistance, reducing tire consumption.
King Pin: JOST king pin ensures tight and secure connection with the tractor, improving driving stability.
Landing Gear: Equipped with 28-ton two-speed landing gear, providing smooth lifting and lowering, strong load capacity, and convenient operation.
Our Advantages
Competitive Pricing: As a semi-trailer manufacturer, purchasing from us allows customers to enjoy factory prices and achieve the best investment value.
Free Customization: As a semi-trailer factory, we provide free customization solutions for length, axle quantity, and components according to customer transport needs.
Warranty Service: We provide a one-year free warranty for customers purchasing our semi trailers.
Spare Parts Supply: We offer lifetime supply of original spare parts, ensuring customers can quickly obtain the correct components and reduce vehicle downtime.
Contact Us
Vehicle Master is a leading semi-trailer manufacturer and dealer. By purchasing our 40ft container chassis trailer, customers can enjoy factory preferential pricing and directly communicate with engineers to ensure accurate customization solutions based on operating needs. If you would like to obtain real-time pricing, professional customization, or arrange a factory visit, please feel free to contact us. Our professional team will provide dedicated service.
You can contact us via website message or WhatsApp (+86-18866100060).
FAQ
Q1: Can this chassis trailer accommodate different container specifications?
A: Yes. By adjusting the twist lock positions, it can accommodate 20 ft, 40 ft, and other standard containers.
Q2: Can this 40 ft chassis trailer carry two 20 ft containers at the same time?
A: Yes. By adjusting the twist lock positions on the chassis, it can safely carry two 20 ft standard containers simultaneously. This is one of its standard design features, enabling flexible loading solutions.
Q3: If my cargo dimensions exceed standard container sizes, can a special-size chassis trailer be customized?
A: Absolutely. We undertake non-standard customization projects. Please provide the specific dimensions and weight parameters of your cargo, and our engineers will evaluate and design the safest and most economical dedicated solution for you.
Q4: How long is the production cycle for a specially customized chassis trailer?
A: The production cycle for standard customized models is 20–25 days. Special lengths can be optimized and adjusted based on mature main beam modules without the need for complete redesign, ensuring efficient production and delivery.
Q5: What essential documents does the manufacturer provide for vehicle operation?
A: We provide a complete set of documents with the vehicle, including the Certificate of Conformity, Product Quality Certificate, technical manuals for major components, and maintenance manuals. These documents are essential for vehicle registration, operating permits, and subsequent maintenance.
