50 Ton Grain Side Tipper Semi Trailer for Sale
This 50 ton grain side tipper semi trailer is manufactured by Vehicle Master and sold at factory prices. It is built with high-quality steel and advanced production technology, featuring a strong and durable structure. The side tipping unloading design ensures efficient and thorough discharge, suitable for transporting grains, ores, and other bulk materials across industries such as agriculture, mining, and construction.
As a semi-trailer manufacturer, we offer customized configurations for this grain side tipper semi trailer. The load capacity can be adjusted between 30 to 120 tons, with 2/3/4/5 axles available according to the payload requirement. We also provide customized hydraulic cylinders, round or rectangular cargo boxes, and discharge extension plates for different unloading site conditions to meet diversified transport needs.
Application
Grain Transfer: Specifically designed for efficient unloading of wheat, corn, and other grains with side tipping that prevents grain damage.
Ore Transportation: Suitable for carrying iron ore, copper ore, and similar materials, featuring a large tipping angle for minimal residue.
Coal Delivery: Large cargo box capacity supports bulk coal transport, meeting mine logistics requirements.
Feed Material Transport: Ideal for transferring soybean meal and bran to farms, ensuring convenient unloading and stable supply.
Specifications
Rated Load: 50 Tons (customizable from 30–120 Tons)
Axles: 3 axles, each 13/16 tons (2/3/4/5 axles optional based on load)
Dump Style: Side Dump
Cargo Box Material: Q345 / T700
Side Tipping Angle: 45°–60°
Cylinder: HYVA (model chosen according to cargo box length)
Bottom Plate Thickness: 5mm
Sidewall Plate Thickness: 4mm
Suspension System: Mechanical / Air Suspension
Braking System: WABCO Air Brake (ABS optional)
Tires: 11.00R20 / 12R22.5 × 8/12 pieces
Landing Gear: 28T Two-Speed, JOST
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
Price Range
The price range for this side tipper semi-trailer is USD 9,000 – USD 25,000. The final price depends on multiple factors, including material quality standards, payload requirements, customization complexity, manufacturing process, and selected configurations. Different specifications and optional features may result in varying prices.
If you want to purchase this grain side tipper semi trailer at factory price or have further customization needs, please contact us via our website message form or WhatsApp (+86-18866100060).
Core Manufacturing Process

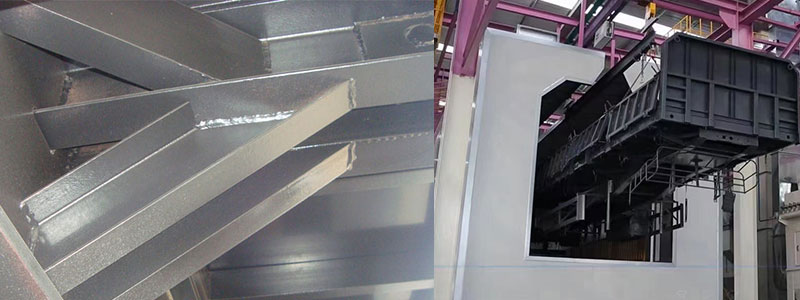

Welding Process: We adopt automatic welding combined with manual reinforcement. The connection between the main beam and the cargo box is welded automatically to ensure deep and uniform welds free of pores or slag inclusions. Key stress points are manually reinforced to ensure structural stability. This combined process ensures that the trailer maintains shape under long-term heavy loads and significantly extends its service life.
Painting Process: We use a high-end electrophoretic coating process. The trailer body undergoes degreasing and phosphating pretreatment to remove impurities and oxides. Then, a dense anti-rust coating is applied through cathodic electrophoresis, providing strong resistance to abrasion and corrosion. This process ensures long-lasting rust prevention and maintains a clean appearance even under harsh conditions.

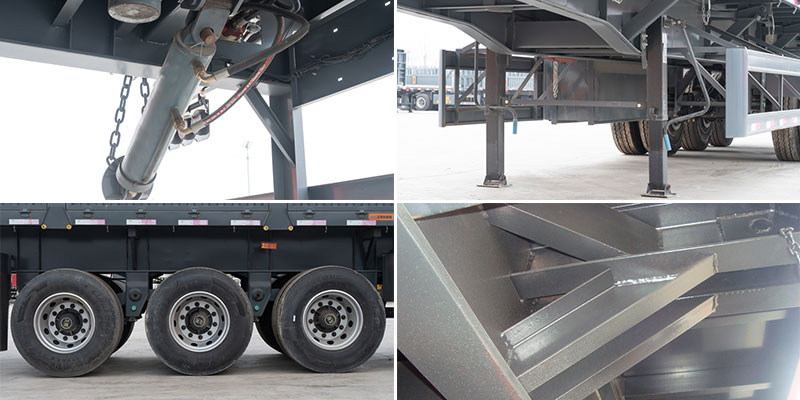

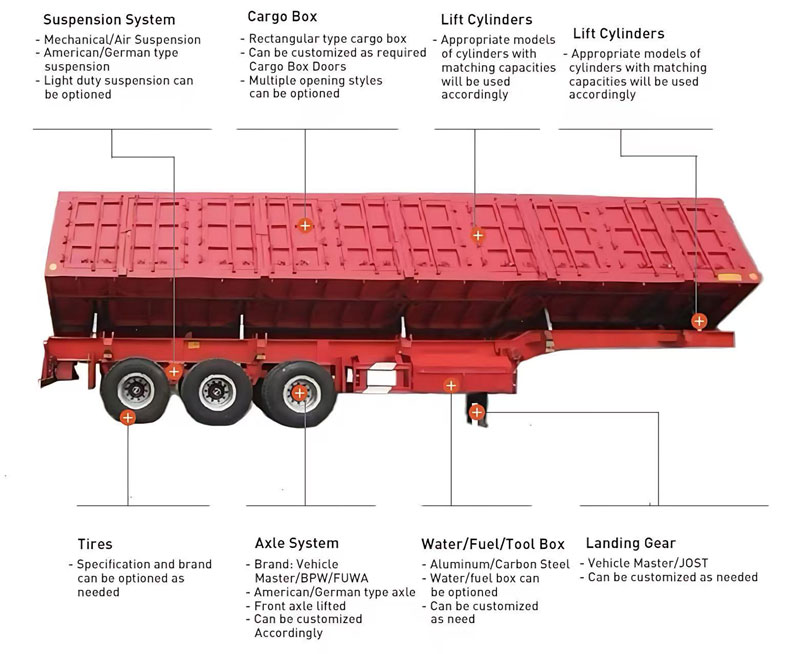

Main Features
High-Quality Steel: Manufactured using strictly selected and processed premium steel, ensuring high strength and resistance to bending under heavy loads for maximum safety.
Customizable Capacity: Available in various capacity options according to transport needs, reducing return trips and improving operational efficiency.
Axle Configuration: Axle quantity is matched based on payload, using reputable brand axles for reliable and long-term performance.
Side Tipping Hydraulic Cylinders: Equipped with 3–6 hydraulic cylinders according to cargo box size, providing smooth and powerful lifting for complete unloading.
Suspension System: Offers both leaf spring and air suspension options, adaptable to different road conditions while protecting cargo and vehicle from vibrations.
Discharge Extension Plate: Optional foldable extension plate for different unloading sites, ensuring controlled discharge, maintaining a clean work environment, and enhancing efficiency.
Braking System: Standard WABCO air braking system provides fast, stable response; optional ABS prevents skidding during emergency braking, improving driving safety.
After-Sales Service
One-Year Warranty: A one-year free warranty is provided. During the warranty period, any failure caused by manufacturing defects will be repaired or replaced free of charge.
Lifetime Spare Parts Supply: Lifetime supply of original spare parts ensures quick replacement and professional maintenance support when needed.
Contact Us
When you purchase this 50-ton grain side tipper semi-trailer from us, you’ll enjoy factory-direct pricing with no middleman markup, ensuring the best cost performance.
We also provide free customization design services. For detailed specifications or a quotation, feel free to contact us anytime. Our professional engineering team will assist you with all product details, customized solutions, and prompt quotation services.
You can reach us through our website message form or WhatsApp (+86-18866100060).
FAQ
Q1: Can it be matched with different brands of tractors?
A: Yes, it comes with a standard universal kingpin compatible with mainstream tractor brands such as Mercedes-Benz, Volvo, etc.
Q2: Besides grain, can this side tipper semi-trailer handle other materials?
A: Absolutely. This trailer is suitable for various bulk materials including minerals, coal, and construction materials.
Q3: What warranty services do you provide?
A: We provide comprehensive warranty support, including a one-year warranty and lifetime technical assistance. We also offer continuous maintenance guidance and guaranteed spare parts supply.
Q4: How can the unloading speed be controlled to prevent spillage during tipping?
A: The hydraulic cylinders are equipped with flow control valves that precisely regulate lifting speed, allowing control of unloading pace. Combined with the discharge extension plate, it effectively guides the material flow and prevents spillage, suitable for various unloading conditions.
Q5: Can this semi-trailer operate flexibly on narrow farm roads?
A: Yes. The cargo box size can be customized according to road width, or a steering assist system can be added to reduce the turning radius, ensuring flexibility and easy maneuvering in narrow farm environments.
