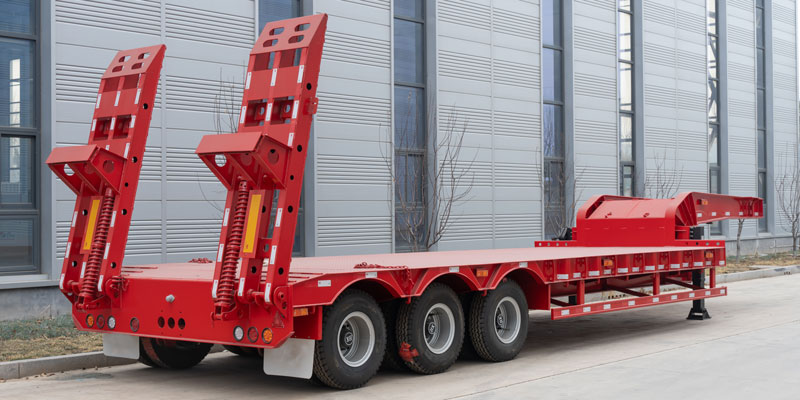

50 Ton Low Bed Trailer for Sale
The 50 Ton Low Bed Trailer is manufactured by Vehicle Master, using high-strength steel and advanced production technology. It has excellent load-bearing capacity, structural stability, and durability, making it an ideal choice for transporting large equipment and heavy cargo. As a trailer factory, we sell directly at factory prices, eliminating middlemen and ensuring high cost-effectiveness.
Our low bed trailers support customized production from 30 to 150 tons, with 2/3/4/5 axles available according to the load requirements. Optional configurations include detachable gooseneck, hydraulic suspension, widened parts, and steering axles, providing flexible solutions for engineering and mining transportation.
Application
Construction Machinery Transport: Convenient for loading and unloading excavators and rollers to remote construction sites.
Power and Energy Equipment: Safely transports transformers, generators, and other heavy electrical equipment.
Mining Equipment Transportation: Ensures stable transfer of mining trucks, crushers, and other heavy mining machinery.
Oversized Structural Components: Specially designed to carry bridge sections, large steel beams, and other long structural materials.
Specifications
Rated Load: 50 Tons (Customizable 30–150 Tons)
Axles: 2/3/4/5 Axles, 13/16/20T per axle, FUWA/BPW
Main Beam Material: Q345/T700
Goose Neck Detachable: Available
Multi-Axles: Available
Widened Parts: Available
Steering Axles: Available
Tire Style: Covered or Uncovered
Ladder: Mechanical Spring/Hydraulic
Tire Size: 12R22.5/8.25r20 * 8/12/16/20 Pieces (4 tires per axle)
Rim: 9.00*22.5/6.5-20, Steel/Aluminum
Suspension System: Mechanical / Air / Hydraulic Suspension
Hydraulic System: Dual Circuit Hydraulic Control System (with Pressure Protection)
King Pin: #50(2") / #90(3.5")
Landing Gear: 28 Tons Two Speed
Price Range
The price of this low bed semi trailer ranges from USD 11,000 to USD 50,000. The exact price depends on factors such as load capacity, axle configuration (2–5 axles), detachable gooseneck, suspension type, steering axles, and the thickness and quality standard of the materials used.
If you are looking to purchase a high-quality low bed trailer or wish to customize one based on your transportation needs, please leave a message on our website or contact us via WhatsApp (+86-18866100060).

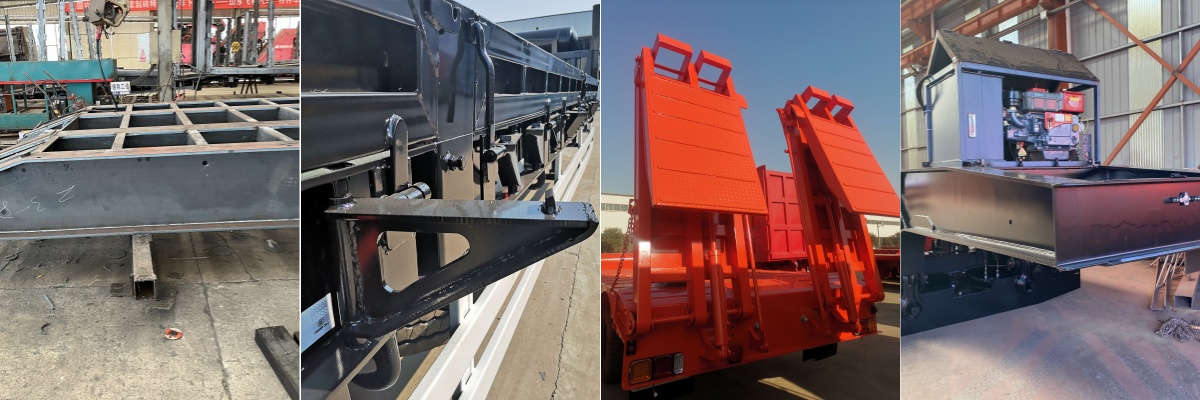

Core Manufacturing Process
Welding: Uses automatic submerged arc welding technology to ensure uniform weld penetration and smooth appearance of the main beam and structural joints. This process provides excellent welding quality and stability, greatly enhancing the trailer’s torsional resistance, structural strength, and service life.
Painting: After degreasing, phosphating, and passivation pretreatment, the trailer undergoes electrophoretic coating, which ensures uniform coverage even in corners and gaps. The coating forms a strong anti-rust layer that maintains both the appearance and performance of the trailer during long-term use.

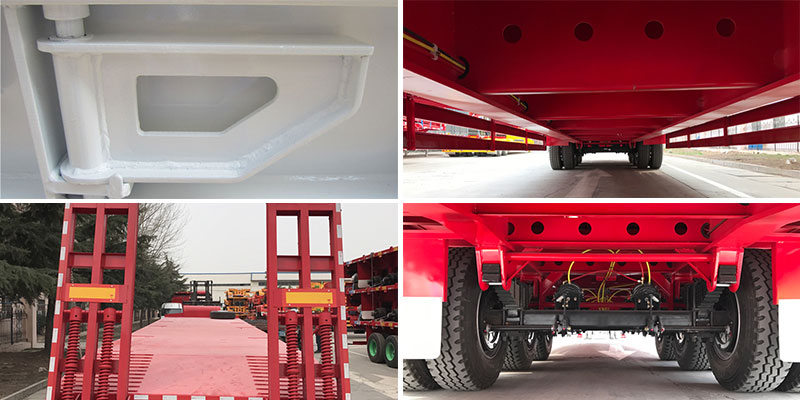

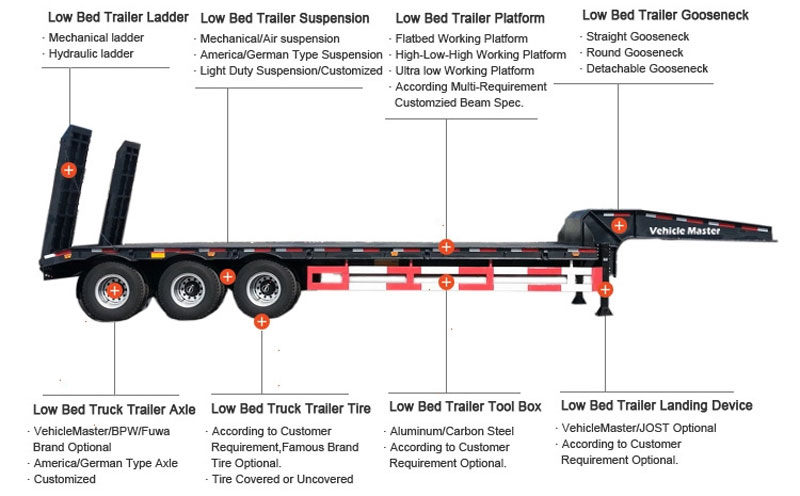

Main Features
High-Quality Steel: Made of superior-grade steel compared to standard trailers, ensuring stability and resistance to deformation under heavy loads.
Main Beam Material: The main beam uses Q345/700 high-strength steel, preventing bending or deformation under continuous heavy load, providing stable support for cargo.
Detachable Gooseneck: Equipped with a hydraulically operated detachable gooseneck that allows the loading platform to be quickly lowered for easy loading and unloading of heavy equipment.
Suspension: Offers mechanical, air, and hydraulic suspension options, effectively absorbing road impact to protect both cargo and vehicle.
Steering Axles: Optional steering axle system significantly reduces the turning radius, improving maneuverability and flexibility in narrow spaces.
Widened Components: Optional foldable widening parts allow the platform width to be adjusted according to cargo dimensions.
Ladder: Equipped with spring or hydraulic ladders for easy and safe rear loading of machinery such as excavators.
Shipping
Depending on the trailer’s specifications, we use container or bulk shipping. Key parts such as the hydraulic system, suspension components, and other vulnerable sections are professionally wrapped and secured to prevent damage or deformation during transport.
We coordinate with customers regarding shipping routes and costs, offering flexible delivery options including road, rail, sea, or multimodal transport to ensure fast and efficient delivery.
Contact Us
When purchasing this 50 Ton Low Bed Trailer from us, you will receive factory-direct pricing, diverse customization options, and continuous after-sales support.
Welcome to contact us for the latest quotation — our professional team will provide you with the best service.
You can reach us through our website message form or WhatsApp (+86-18866100060).
FAQ
Q1: Can it transport cargo over 4 meters in height?
A: Yes, we provide lowboy trailers with lower ground clearance, exposed tire designs, and smaller tire sizes to meet over-height transportation requirements.
Q2: What if the platform surface wears out heavily during long-term mining operations?
A: We can customize thickened wear-resistant steel plates or install alloy wear-resistant strips on key areas of the platform to enhance durability.
Q3: Does the detachable gooseneck require special tools for installation and removal?
A: No, the gooseneck adopts a hydraulic quick connection system, allowing operators to detach or install it easily through the control panel.
Q4: How long is the production cycle for customized semi trailers?
A: The standard production period for regular custom configurations is 20–25 days. For complex designs, the production time may vary based on process complexity. Please contact us via WhatsApp for confirmation.
Q5: Do you provide after-sales maintenance support?
A: Yes, we provide a 1-year warranty and long-term spare parts supply for our customers.
