| Quantity: | |
|---|---|
Lowbed trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road rollers, cranes, etc.) ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles. Usually, the lowest platform height from the gourd is about 0.7 meters, in this way, the tires could be covered or uncovered.

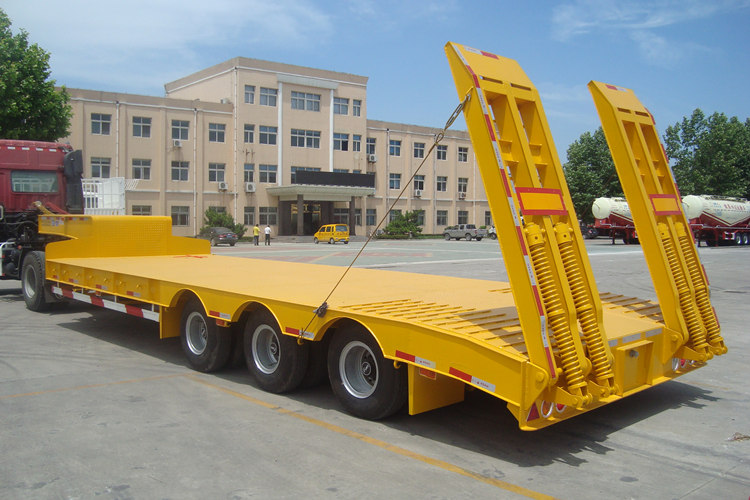

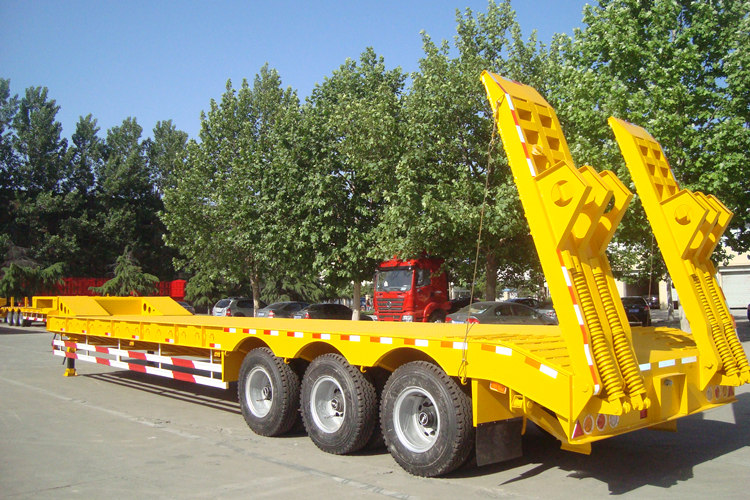

60 Ton 3 Axles Lowbed Trailer is also widely used for transportation of various types of machinery and equipment, large objects, road construction equipment, large tanks, power station equipment and various steels.
The series of lowbed trailers have flatbed, concave beam and tire exposed structure, and the longitudinal beam is straight or gooseneck. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.
The main plane of the frame and platform is low, which ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large-scale equipment and steel.
Three-axis balance type, double-axis balance type or rigid suspension is adopted, and a mass balance block is installed between the front and rear leaf springs, so that the deflection of the front and rear leaf springs can be changed in an equal amount, so that the front and rear axles are balanced in force, etc.
The lowbed trailer series products are suitable for the transportation of various kinds of mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment and various steel materials. They are widely used, efficient and fast. The whole vehicle adopts advanced computer-aided design software, and the optimization design is flexible and diverse, and the frame bearing surface is designed according to user requirements to meet the transportation of various special goods.
Dimension Overview | |
Length: | 12,500mm |
Width: | 2,500mm |
Height: | 1,550mm |
Structure Spec. | |
Main beam | Material Q345B. |
Fabricated “H” beam height 250/ 500mm | |
Top flange thickness 12mm | |
Middle web thickness 6mm | |
Bottom flange thickness 14mm | |
Welding standard | National Level Welding Supervisor.Meanwhile cooperate automatic welding machine.And More 30 minutes per process than normal welding time. Ensure the best welding results. |
Painting | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um |
Main Parts of Trailer | |
Suspension: | China heavy duty spring suspension, leaf spring10pcs*13mm*90mm |
Axle: | FUWA brand, 3pcs*13 ton capacity |
Brake system: | Dual line pneumatic brake, SAE hose and connector, without ABS |
Brake chamber: | 6 units T30/30 spring brake chambers |
Tire and Rim: | Double coin, 12R22.5, 12pcs, 9.0 steel disc wheel, 10 holes, 12 pcs. |
King pin | 50# or 90# bolted type |
Landing gear: | heavy duty 28T two speeds telescopic manual landing gear |
Two or three lowbed trailers can be stacked together depends on the lowbed trailers weight. Usually the lowbed trailer ladders are disassembled when we pack lowbed trailers, customers can easily install them when they get the trailer.
For shipment, there are bulk cargo vessel and ro-ro vessel for choosing. Lowbed trailers will be placed on the deck if you choose bulk cargo vessel, and lowbed trailers will be placed under the deck if you choose ro-ro vessel.

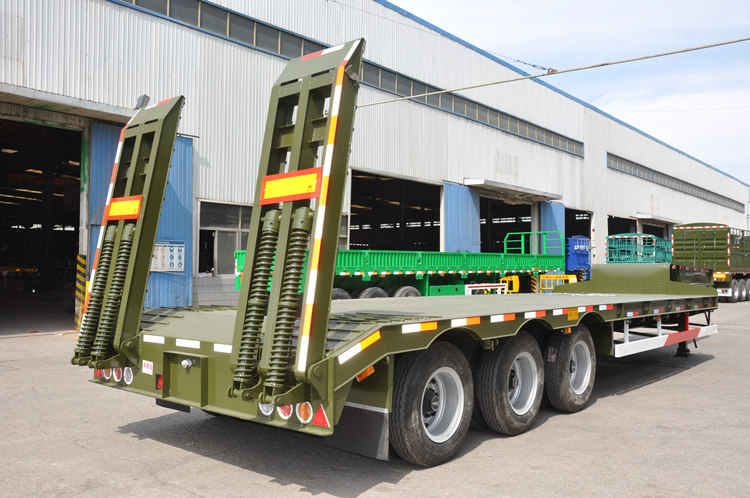

This newly finished 3 axles lowbed trailer is for loader transportation. The colour is customized. And since the lowbed trailer will be on the sea for few months, we waxed the whole trailer. These axles are BPW brand, chosen by customer. The platform length is 10 meters as customer required. Since there’s no limit on height, so the tires are covered.
