Custom 20/40/45ft Container Chassis Trailer for Sale
This custom 20/40/45ft container chassis trailer is manufactured by Vehicle Master. It offers excellent load capacity, structural strength, and durability, and is widely used in container transportation scenarios such as port transfer, cross-border logistics, and yard dispatching.
As a semi-trailer factory, we sell at factory-direct prices and support on-demand customization to meet different container transportation requirements. This container chassis trailer can be adjusted in length according to customer needs to match containers of 20ft, 40ft, and 45ft sizes. The number of axles is matched according to the length, and customers can also choose suspension type, twist lock quantity, and stake/rail fixtures to meet diverse transportation applications.
Applications
Long-distance container transportation: A reliable chassis choice for inter-provincial and cross-border container transport.
Port internal transfer: Efficient handling and dispatching operations between terminals and yards.
Tank container transportation: Fixation and safe transport of special tank containers.
Specifications
Size: 20ft / 40ft / 45ft (customizable)
Rated Load: 20–80 Tons
Axles: 2/3/4 Axles
Type: Gooseneck or Tandem
Main Beam Material: Q345/T700
Twist Locks: 4/8/12 ISO Standard Rotating Twist Locks
Suspension System: Mechanical Suspension / Air Suspension
Braking System: Drum Brake with ABS
Tire Size: 12R22.5 (8/12/16 Pieces)
King Pin: #50 (2")/#90 (3.5"), JOST/Other Brand
Landing Gear: 28 Tons Two Speed, JOST/Other Brand
Painting: Electrophoresis Painting
Price Range
The price of this container chassis trailer ranges from USD 6,000 – 19,000. The specific price is affected by factors such as chassis length, axle configuration, suspension type, braking system, and accessory brands. We provide transparent and reasonable quotations to ensure customers choose the optimal configuration according to their transportation needs and budget.
If you want to purchase this Custom 20/40/45ft Container Chassis Trailer at factory price, or have customization requirements, please contact us via website message or WhatsApp (+86-18866100060).
Core Manufacturing Processes
Welding: Automatic welding process is adopted to ensure that the welds of the chassis beam, frame, and connecting parts are uniform and firm, without pores or slag inclusions. This greatly improves overall structural strength and torsion resistance. After welding, ultrasonic flaw detection is carried out to eliminate internal risks, ensuring durability and safety.
Painting: The body undergoes sandblasting treatment to thoroughly remove oxide layers and impurities on the steel surface, followed by electrophoresis coating in the dipping pool, and finally sprayed with high wear-resistant topcoat. The coating has strong adhesion, excellent scratch resistance, corrosion resistance, and UV protection, which extends service life and maintains a clean appearance.

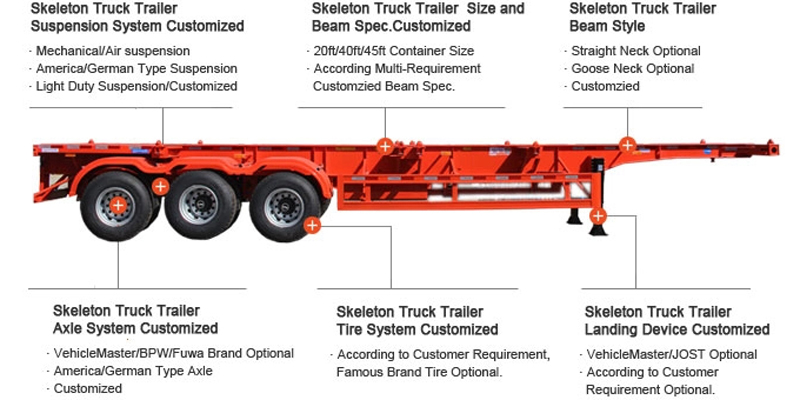

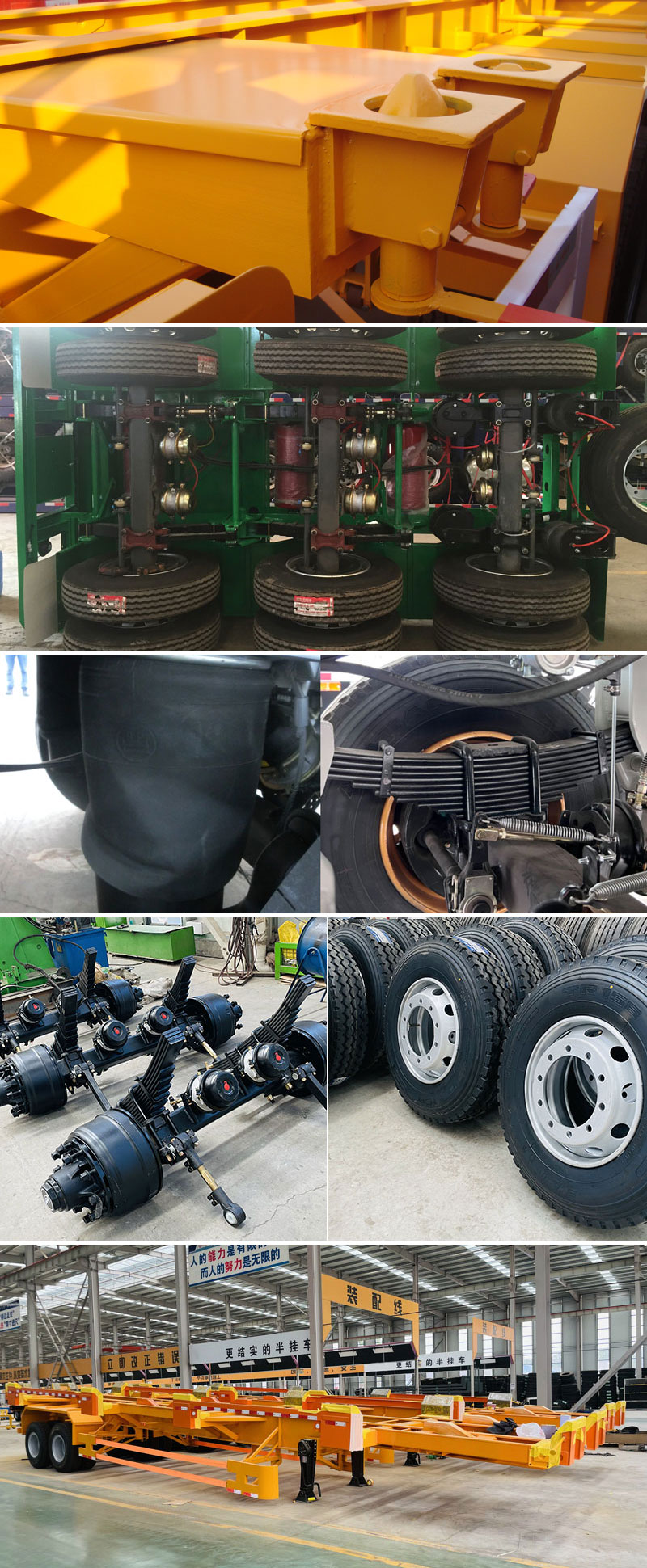

Key Features
Length Customization: Available in 20ft/40ft/45ft lengths to match different container sizes, ensuring a tight fit between container and chassis.
Main Beam Material: Made of Q345/T700 high-strength steel beam with strong load capacity and stable structure to provide solid support for containers.
Axles: Configured with 2/3/4 axles depending on trailer length, allowing it to withstand complex road conditions and reduce failure rates.
Twist Locks: Equipped with 4/8/12 sets of twist locks according to trailer length. They tightly engage with the container’s corner fittings, ensuring firm locking during transport and preventing displacement.
Stakes and Rails: Optional removable stakes and side rails can be installed for port or terminal use, improving loading/unloading convenience and efficiency.
LED Lights & Reflective Strips: Equipped with high-brightness LED lamps and reflective strips on both sides, enhancing visibility in nighttime and low-visibility conditions to improve transport safety.
Tires: Each axle is equipped with 2/4 premium radial tires according to usage requirements, providing strong grip and load performance.

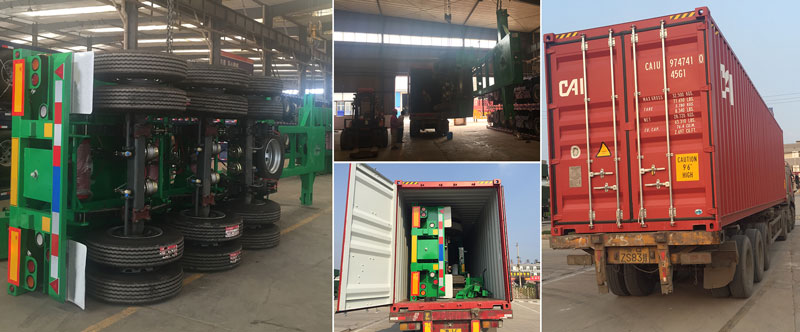

Delivery Details
Depending on trailer specifications, transport can be done by container or stacked shipment. Removable parts and vulnerable frame corners are tightly wrapped with anti-vibration foam and waterproof film to prevent collision or moisture damage during transport.
We develop transport plans based on customer destination and communication, using road transport, railway, sea shipping, or multimodal transport, with full cargo tracking to ensure safe and timely delivery.
Contact Us
Vehicle Master is a leading semi-trailer manufacturer. By purchasing custom 20/40/45ft container chassis trailers directly from us, you will enjoy factory-direct prices and personalized customization services. If you need more detailed configurations and a quotation, feel free to contact us. We will provide professional and attentive full-service support. You can contact us via website message or WhatsApp (+86-18866100060).
FAQ
Q1: Can it be compatible with both 20ft and 40ft containers?
A: The standard model only fits a single container size. If dual compatibility is required, we can customize an adjustable twist lock system that allows switching between 20ft and 40ft containers by repositioning the twist locks.
Q2: Can the axle quantity and suspension type be customized?
A: Yes. Based on customer load and trailer length, we can configure 2, 3, or more axles, and support either mechanical or air suspension.
Q3: Is special reinforcement required for transporting overweight containers?
A: Yes. For overweight containers, we provide reinforced main beams and cross beams to enhance chassis strength, while upgrading axle and tire specifications to increase overall capacity and ensure safety during heavy-duty transport.
Q4: Will customized trailers comply with the road transport standards of the destination country?
A: Yes. We adjust the design according to local road width, weight limits, and regulations to ensure compliance with destination country standards.
Q5: If a twist lock is damaged during use, can spare parts be purchased separately?
A: Yes. We supply individual spare parts such as twist locks and bearings, fully matching the original specifications. Customers can purchase them directly for replacement, and we provide installation guidance to ensure performance is not affected after replacement.
