Introduction: Choosing a 20ft, 40ft, or 45ft container chassis trailer depends on cargo weight, container type, and transportation routes. Vehicle Master can customize all three container chassis sizes according to global road and weight regulations, featuring high-strength frames, optional axle configurations, standard twist locks, and reliable spare parts support worldwide.
In container cargo transportation, selecting the right container chassis trailer size directly affects transportation efficiency, road compliance, and long-term fleet operating costs. Many logistics operators struggle to choose between 20ft, 40ft, and 45ft skeletal trailers because cargo weights, route regulations, and container types vary. As a professional trailer manufacturer, Vehicle Master provides customizable fixed and extendable container chassis to meet your daily intermodal transportation needs. Below, we will introduce the applications, key specifications, and selection tips for container chassis trailers in detail.
1. 20ft Container Chassis: Ideal for Heavy-Duty Short-Distance and Yard Transportation
The 20ft container chassis trailer features a compact and flexible structure, making it ideal for transporting a single heavy-duty 20ft container, short-distance warehouse-to-port operations, and transportation on narrow urban roads. Its shorter frame optimizes axle load distribution, helping avoid overweight penalties when transporting high-density cargo such as minerals, metal parts, and industrial raw materials.
Vehicle Master’s 20ft chassis uses a Q345 high-strength main beam and is available with 2- or 3-axle configurations. It comes standard with four durable twist locks, while the lightweight frame helps reduce fuel costs during frequent short-haul transportation. It is an ideal choice for small logistics companies and inland container yard operations.

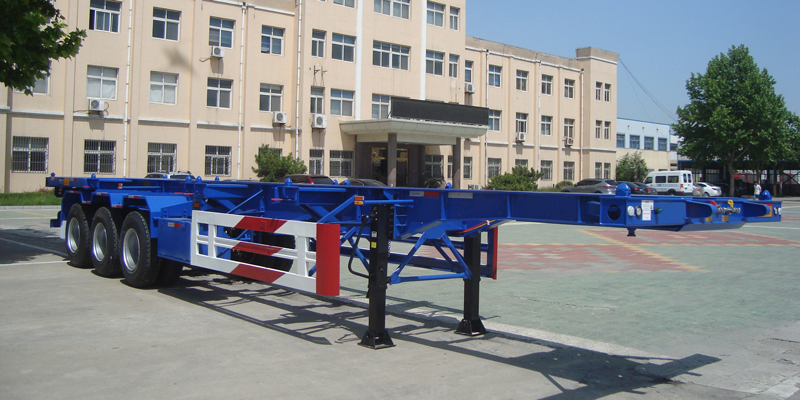

2. 40ft Container Chassis: The Universal Industry Standard for Mainstream Logistics
The 40ft container chassis trailer is the most popular choice for intermodal transportation. It can carry one 40ft container or two 20ft containers and is suitable for medium-volume general cargo, retail goods, and long-distance highway transportation. It provides an excellent balance between payload capacity and transportation efficiency, making it ideal for regular port-to-inland long-haul routes.
Vehicle Master equips the 40ft chassis with eight fixed twist locks and offers mechanical or air suspension options. Depending on the payload requirements, it can be configured with 2, 3, or 4 axles to comply with regional weight regulations in Africa, Southeast Asia, and the Middle East. Most medium-sized fleets prefer this model for daily mixed-cargo transportation.
3. 45ft Container Chassis: A High-Capacity Solution for Large Containers
The 45ft container chassis trailer is specifically designed for 45ft high-capacity containers. It helps logistics companies specializing in bulky, low-density cargo such as furniture, textiles, and packaged goods maximize payload volume per trip and reduce transportation costs per unit. It is best suited for dedicated long-haul routes and major port container transfer operations.
Vehicle Master’s 45ft chassis features reinforced longitudinal beams and 12 positioning twist locks, ensuring secure container fixation during high-speed transportation while strictly complying with international road dimension regulations.
4. Key Additional Specifications to Confirm Before Purchase
Axle Configuration:
2 axles are suitable for light-duty cargo, while 3 axles are recommended for fully loaded heavy-duty transportation. Vehicle Master uses FUWA/BPW brand axles and provides customized axle configurations according to local road regulations.
Extendable Chassis:
A sliding extendable chassis can switch between different container sizes, enhancing fleet flexibility. It is recommended for operators who frequently handle mixed 20ft, 40ft, and 45ft container transportation.
Frame and Components:
Vehicle Master chassis use high-strength steel main beams to ensure durability and structural strength. They are equipped with JOST standard kingpins and wear-resistant branded tires to extend service life and reduce long-term maintenance costs.
Purchase Recommendations
A 20ft chassis is ideal for heavy-duty short-haul transportation, a 40ft chassis is the best choice for versatile mainstream shipping operations, and a 45ft chassis is suitable for high-volume oversized container transportation. Vehicle Master provides full-size customized container chassis solutions for global logistics buyers, offering flexible configurations and reliable after-sales support.
