3 Axle Hydraulic Lowbed Semi Trailer for Sale
This 3 axle hydraulic lowbed semi trailer is manufactured by Vehicle Master, made of higher-quality steel compared to ordinary semi trailers. It combines excellent quality with long-lasting durability. We provide factory-direct pricing for customers, ensuring they get higher-quality semi trailers at more favorable prices.
As a semi trailer factory, we customize this hydraulic lowbed semi trailer according to customer requirements, supporting customized load capacities from 30-150 tons. It can be equipped with 2/3/4/5 axles and multiple axles, as well as optional widened components, detachable gooseneck, ramps, and various suspension systems, to meet different heavy cargo loading and transportation needs.
Application
Engineering Equipment Transport: Carries excavators, rollers, and other engineering machinery, with hydraulic adjustment for convenient loading and unloading.
Large Component Transport: Safely delivers wind turbine blades, towers, and other large wind power components to installation sites.
Mining Machinery Dispatching: Transports crushers, mining trucks, and other overweight mining equipment for mining areas.
Bridge Steel Structure Transport: Suitable for prefabricated bridge box girders, steel columns, and other oversized and overweight components.
Specifications
Axles: 3 axles (optional 2/4/5 axles and multi-axles), 13/16 tons per axle
Load Capacity: 30-150 tons (customizable)
Gooseneck Type: Detachable Hydraulic Gooseneck
Multi-Axles: Available
Steering Axles: Available
Widened Parts: Available
Tire Style: Covered or Uncovered
Main Beam Material: Q345/T700
Suspension System: Mechanical Suspension / Air Suspension / Hydraulic Suspension
Tire Size: 12R22.5 / 8.25R20
Ladder: Mechanical Spring / Hydraulic
King Pin: #50(2") / #90(3.5"), JOST / Other Brand
Landing Gear: 28 Tons Two Speed, JOST / Other Brand
Price Range
As a source semi trailer factory, the price of our hydraulic lowbed semi trailer ranges from USD 11,000 - 50,000. The price is affected by customization requirements: higher load capacity, detachable gooseneck, hydraulic suspension system, and hydraulic ramps will increase material costs and process complexity, leading to higher prices.
If you want to purchase this 3 axle hydraulic lowbed semi trailer, or customize one according to your usage requirements, please contact us via website message or WhatsApp (+86-18866100060).
Core Manufacturing Process
Welding Process: For high-stress connection areas of lowbed semi trailers, automatic submerged arc welding technology is used for continuous welding. The weld seam has uniform penetration, free of pores and slag inclusions, significantly enhancing torsional resistance and load-bearing capacity. It ensures the cargo platform remains structurally stable under heavy loads or bumpy road conditions, greatly reducing the risk of cracking and extending service life.
Painting Process: After degreasing and phosphating pretreatment, cathodic electrophoresis coating is applied first, forming a dense primer with strong adhesion. Then, polyurethane topcoat is sprayed, providing excellent chemical resistance and weather resistance, improving scratch and rust resistance, maintaining long-lasting anti-rust effects, and reducing corrosion loss during outdoor transportation.

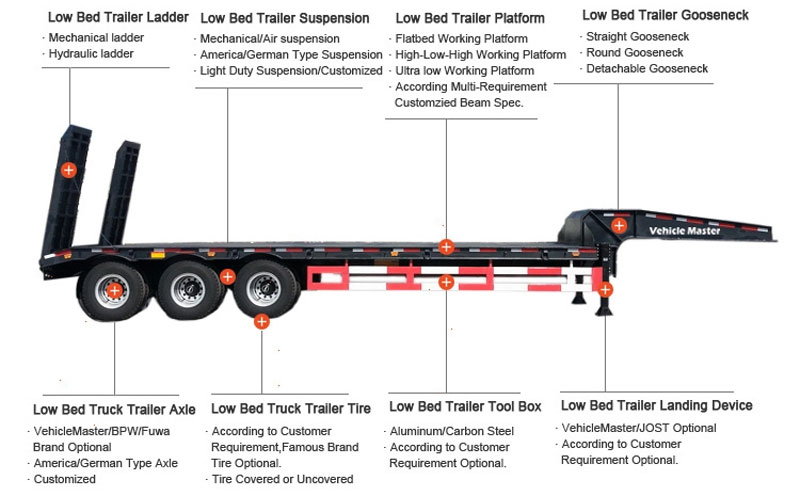

Main Features
Steel Material: Made of higher-quality steel compared to ordinary semi trailers, with superior yield strength and impact resistance. It combines hardness and toughness to withstand the pressure of overweight cargo, ensuring transportation safety.
Detachable Gooseneck: Controlled by a hydraulic system, the detachable gooseneck allows the cargo platform to form a flat loading surface after removal, making it convenient for overweight cargo to drive onto or be hoisted onto the platform. During transportation, the gooseneck is securely fixed, ensuring driving stability.

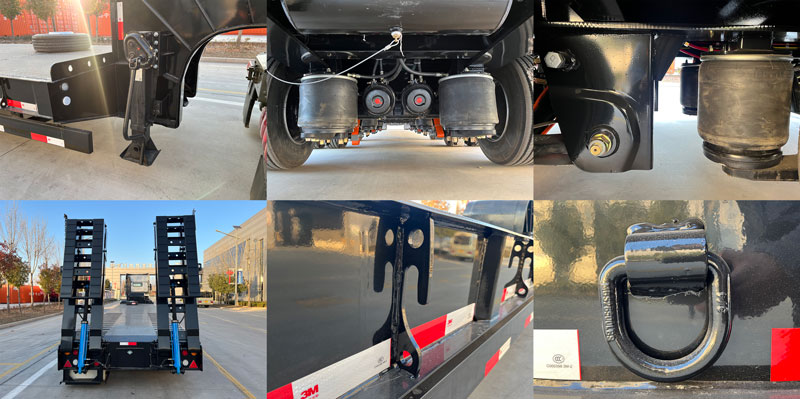

Suspension: Offers mechanical, air, or hydraulic suspension options. Mechanical suspension has strong load-bearing capacity and is more economical; air suspension provides better shock absorption; hydraulic suspension allows cargo platform height adjustment, adapting to different loading sites and cargo heights.
Steering Axles: Equipped with multiple steering axles, enabling precise control of the steering angle, significantly reducing turning radius, and improving maneuverability.
Widened Components: Used for temporarily transporting oversized cargo, meeting the needs of wide component transportation. When retracted, they do not affect normal road driving.
Tires: Equipped with well-known brand radial tires, wear-resistant and puncture-resistant, suitable for various complex road conditions, extending service life. Both covered and uncovered tire designs are available: uncovered tires further reduce cargo platform height for oversized cargo; covered tires protect tires from stone impacts.

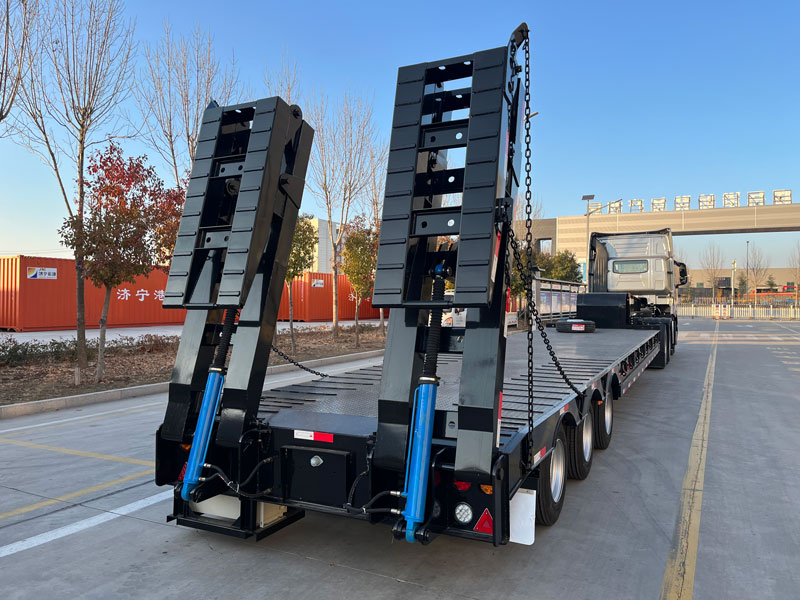

Ladder: At the rear of the cargo platform, spring-loaded or hydraulically driven ramps are installed. When unfolded, they connect smoothly with the ground, making it easy for loaders, forklifts, and other self-propelled equipment to move onto the platform without additional ramps, improving loading efficiency and safety.
Shipping
Depending on semi trailer specifications, container shipping or stacked transport is used. Core components or vulnerable parts are tightly wrapped with shockproof foam and waterproof film to prevent damage during transportation.
According to the customer’s destination, we discuss suitable transport methods with the customer. Road, rail, sea, or multimodal transportation can be arranged using the optimal route to deliver safely in the shortest possible time.
Contact Us
As a semi trailer manufacturer, by purchasing a 3 axle hydraulic lowbed semi trailer from us, you can enjoy factory-direct pricing, eliminating middleman markups. We also provide free customization services and one-year warranty, ensuring a satisfying user experience. You can contact us via website message or WhatsApp (+86-18866100060).
