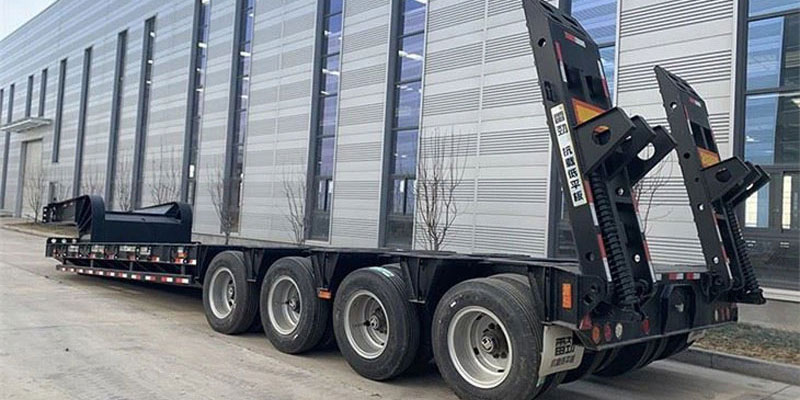

4 Axle 100 Ton Lowbed Semi Trailer for Sale
This 4 axle 100 ton lowbed semi trailer is manufactured by Vehicle Master, made of high-strength steel, combining excellent quality and long-lasting durability. It is suitable for transporting heavy equipment, engineering machinery, large steel structures, and other oversized and overweight cargo. As a source semi-trailer factory, we sell at factory price and also support customization on demand to meet various heavy transport requirements.
Our 4 axle 100 ton lowbed semi trailer supports customization on demand. The load capacity can be customized between 30-150 tons, and the number of axles can be matched with 2/3/4/5 axles according to the load. At the same time, we provide optional steering axles, widened flatbed, detachable gooseneck, and other personalized configurations to ensure the trailer perfectly matches various special transport tasks, improving transportation efficiency and safety.
Application
Engineering Machinery Transport: Such as excavators, bulldozers, and other heavy equipment.
Large Machinery Equipment: Overall transport of generator sets, machine tools, etc.
Steel Structure Components: Transport of bridge beams, tower crane structures, and other oversized parts.
Oversized and Overweight Cargo: Special transport of wind power equipment, pressure vessels, etc.
Mining Equipment: Transport of mining trucks, crushers, and other large industrial facilities.

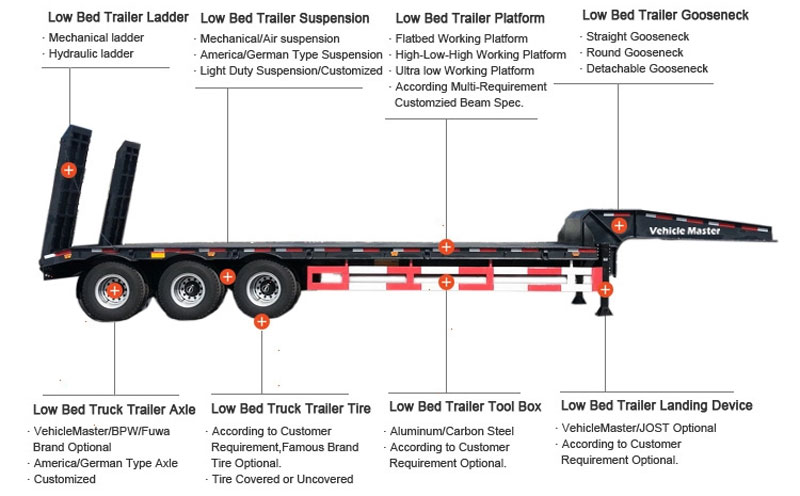

Specifications
Axles: 4 axles (optional 2/3/5 axles)
Rated Load: 100 tons (customizable 30-150 tons)
Platform Length: 14-20 meters
Gooseneck Type: Detachable gooseneck option available
Multi-Axles: Available
Steering Axles: Available
Widened Parts: Available
Suspension System: Mechanical / Air / Hydraulic suspension
Tire: 12R22.5/8.25R20 16 Pieces (4 tires per axle)
Tire Style: Covered or Uncovered
Ladder: Mechanical spring / Hydraulic
King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand, Changeable
Landing Gear: 28 tons two speed, JOST / Other Brand
Price Range
As a semi-trailer factory, the price range of this lowbed semi trailer is between USD 11,000 - 50,000. The price varies depending on material selection, process standards, and different configurations, such as axles, suspension type, material, and customized functions. We provide transparent quotations to ensure customers get high cost-effective products.
If you want to purchase this 4 axle 100 ton lowbed semi trailer at factory price, or want to obtain more customized parameters, please contact us through website message or WhatsApp (+86-18866100060).

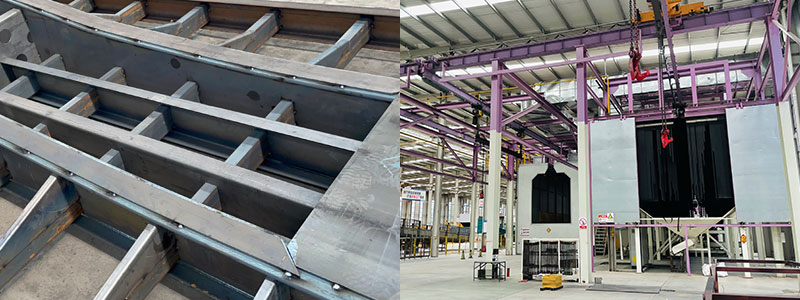

Core Manufacturing Processes
Welding Process: Using advanced automated welding technology, high-precision welding is applied to the main beam, cross beam, and suspension connection parts. The welds are uniform and firm, greatly improving the structural strength and durability of the trailer, effectively reducing welding defects, ensuring stable performance in long-term heavy load transport, and extending service life.
Painting Process: After pretreatment, the body is coated with electrophoretic coating, making the paint surface bond more tightly with the metal surface. It has excellent weather resistance, scratch resistance, and rust resistance, can withstand rain and industrial dust corrosion, maintains long-lasting rust prevention, good appearance, and protective performance, and reduces maintenance costs.

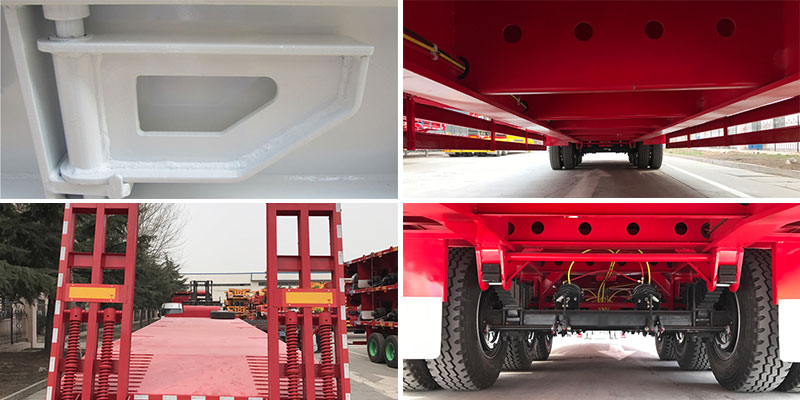

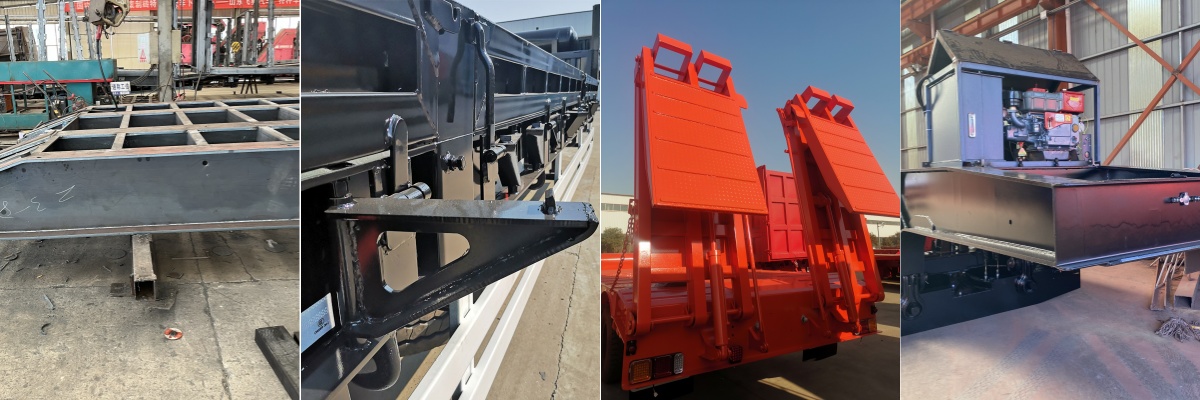

Main Features
High-Quality Steel: Made of higher quality steel than ordinary semi-trailers, with strong load-bearing capacity and anti-deformation, ensuring safety and reliability.
Detachable Gooseneck: Equipped with hydraulic controlled detachable gooseneck, allowing overweight cargo to drive onto or be hoisted onto the trailer easily, simplifying loading and unloading process and improving efficiency.
Suspension: Customizable options for mechanical, air, or hydraulic suspension. Mechanical suspension is more economical, air suspension provides better shock absorption, and hydraulic suspension allows manual or automatic adjustment of deck height.
Steering Axles: Equipped with hydraulic steering axles for precise angle control, enhancing turning flexibility, especially suitable for narrow or complex roads.
Widened Components: Designed with foldable parts to temporarily widen the flatbed for oversized cargo, ensuring stable transportation of large equipment.
Tires: Options for covered or uncovered tire styles. All use high-quality radial tires, wear-resistant and anti-slip, suitable for diverse complex road conditions, extending service life.
Ladders: Equipped with spring or hydraulic-driven ramps at the rear of the deck, smoothly connecting to the ground when unfolded, facilitating loading and unloading of excavators, cranes, and other equipment, improving safety and efficiency.
Shipping Details
Depending on the trailer specifications, standard containers or Ro-Ro ships are used for transportation. Key parts such as axles and suspension systems are wrapped with shockproof materials to prevent damage during transportation and ensure product delivery in good condition.
According to the customer's country and region, we provide road, rail, sea, or combined transportation solutions, flexible and efficient, covering major global markets, to ensure fast delivery.
Contact Us
By purchasing this 4 axle 100 ton lowbed semi trailer directly from Vehicle Master, you can enjoy discounted factory prices and exclusive customized services, along with professional after-sales support. With many years of export experience, our product quality is reliable. If you want to purchase a lowbed semi trailer at a favorable price, please contact us through website message or WhatsApp (+86-18866100060).
