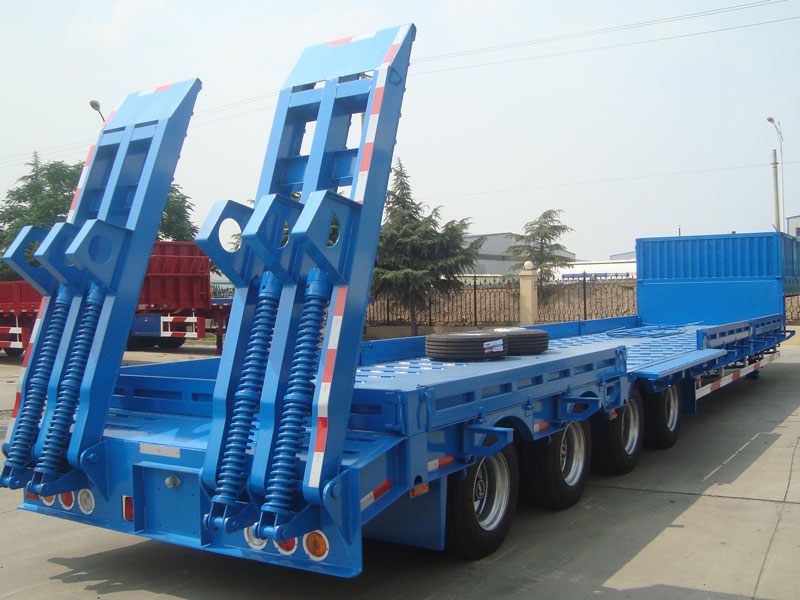

4 Axle Lowbed Semi Trailer for Sale
This is a 4 axle lowbed semi trailer for sale. This lowbed semi trailer is sold at factory price and offers customization based on usage requirements, such as: 30-150 tons load capacity, 2/3/4/5 axles, detachable goose neck, hydraulic suspension and other configurations, providing exclusive solutions for various oversize and heavy-duty transportation needs.
As a semi trailer manufacturer and supplier, we sell lowbed semi trailers at factory prices. This lowbed semi trailer is of excellent quality, strong and durable, and can be used in scenarios such as heavy machinery transportation, industrial equipment relocation, bridge component transfer, and mining equipment dispatch.
Applications
Heavy Engineering Machinery: Carries engineering machinery, such as cranes, rollers, and other large equipment.
Industrial Equipment Transportation: Ensures cross-region transfer of generator sets and large machine tools.
Large Component Transportation: Transports extra-long and extra-heavy prefabricated bridge components, wind power components, etc.
Mining Equipment Transportation: Achieves efficient transfer of mining trucks, drilling equipment, etc.
Specifications
Axle: 4 axles, 13/16 tons per axle (2/3/5 axles and multi-axle available)
Load Capacity: 30-150 tons (customizable)
Gooseneck Type: Detachable
Multi-Axles: Available
Steering Axles: Available
Widened Parts: Available
Tire Style: Covered or Uncovered
Main Beam Material: Q345/T700
Tire: 12R22.5 / 8.25R20 (16 Pieces)
Suspension System: Mechanical / Air / Hydraulic Suspension
Ladder: Mechanical Spring / Hydraulic
King Pin: #50(2") / #90(3.5")
Landing Gear: 28 Tons Two Speed
Tool Box: Steel / Aluminum
Painting: Polyurethane combination painting
Price Range
The price of this 4 axle lowbed semi trailer ranges from USD 15,000 to USD 50,000. The price is affected by the level of customization: higher load capacity, multi-axle configuration, hydraulic suspension system, detachable goose neck, and widening components all contribute to cost increases. In addition, fluctuations in raw material prices also affect the final selling price.
If you would like to obtain more customizable specifications or get our product catalog, please contact us via message or WhatsApp (+86-18866100060).
Reasons for Superior Durability
High-Quality Raw Materials: Our lowbed semi trailer adopts higher-grade raw materials than ordinary semi trailers, with load-bearing capacity improved by 50% compared to ordinary steel. Key components are forged for excellent fatigue resistance, effectively withstanding severe impacts during transportation and extending service life.

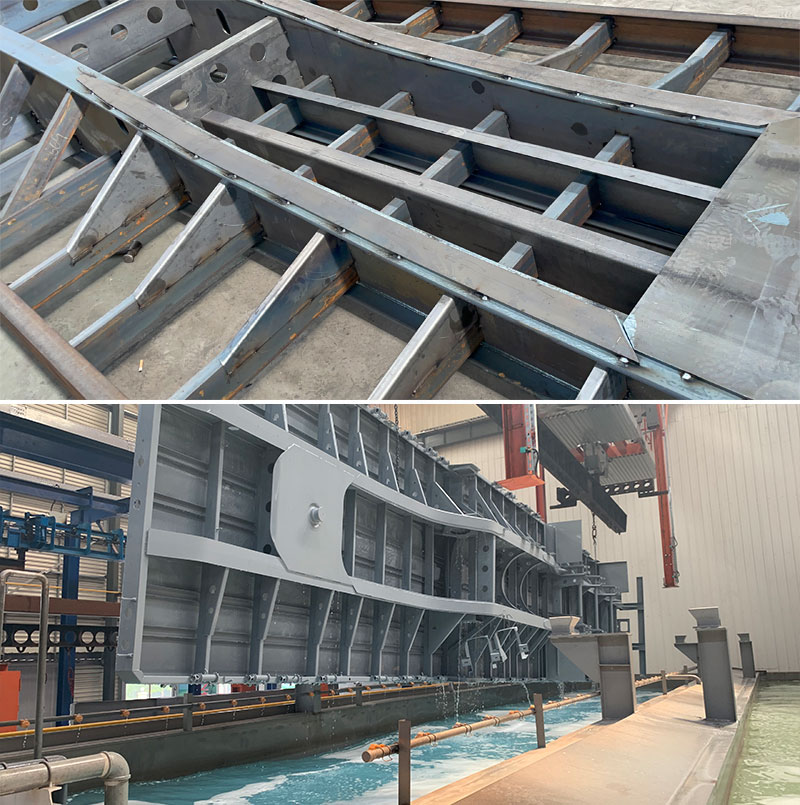

Welding Process: We adopt advanced automatic submerged arc welding technology, which penetrates deep into the steel to form uniform, high-strength welds. This process effectively avoids defects such as pores and slag inclusions caused by manual welding, significantly enhancing the overall rigidity of the frame, reducing deformation and cracking risks, and greatly improving the vehicle’s service life and reliability.
Painting Process: The trailer body undergoes electrophoretic painting treatment, utilizing electric fields to ensure the paint liquid uniformly covers every metal surface, including complex corners and gaps, forming a dense and highly adhesive coating. This paint film has excellent scratch resistance, keeping the trailer looking beautiful for a long time, preventing rust and aging, and providing comprehensive protection for the metal structure.
Main Advantages
Customizable Load Capacity: According to usage needs, we provide 30-150 tons load capacity customization, matching different heavy cargo transportation requirements, flexibly adapting to various working conditions, ensuring safe and efficient transport.
Detachable Goose neck: Adopts a detachable gooseneck design, which is easy to operate and allows quick connection and separation between the gooseneck and the flatbed. It facilitates self-propelled equipment to drive directly onto or off the trailer, improving operational efficiency.

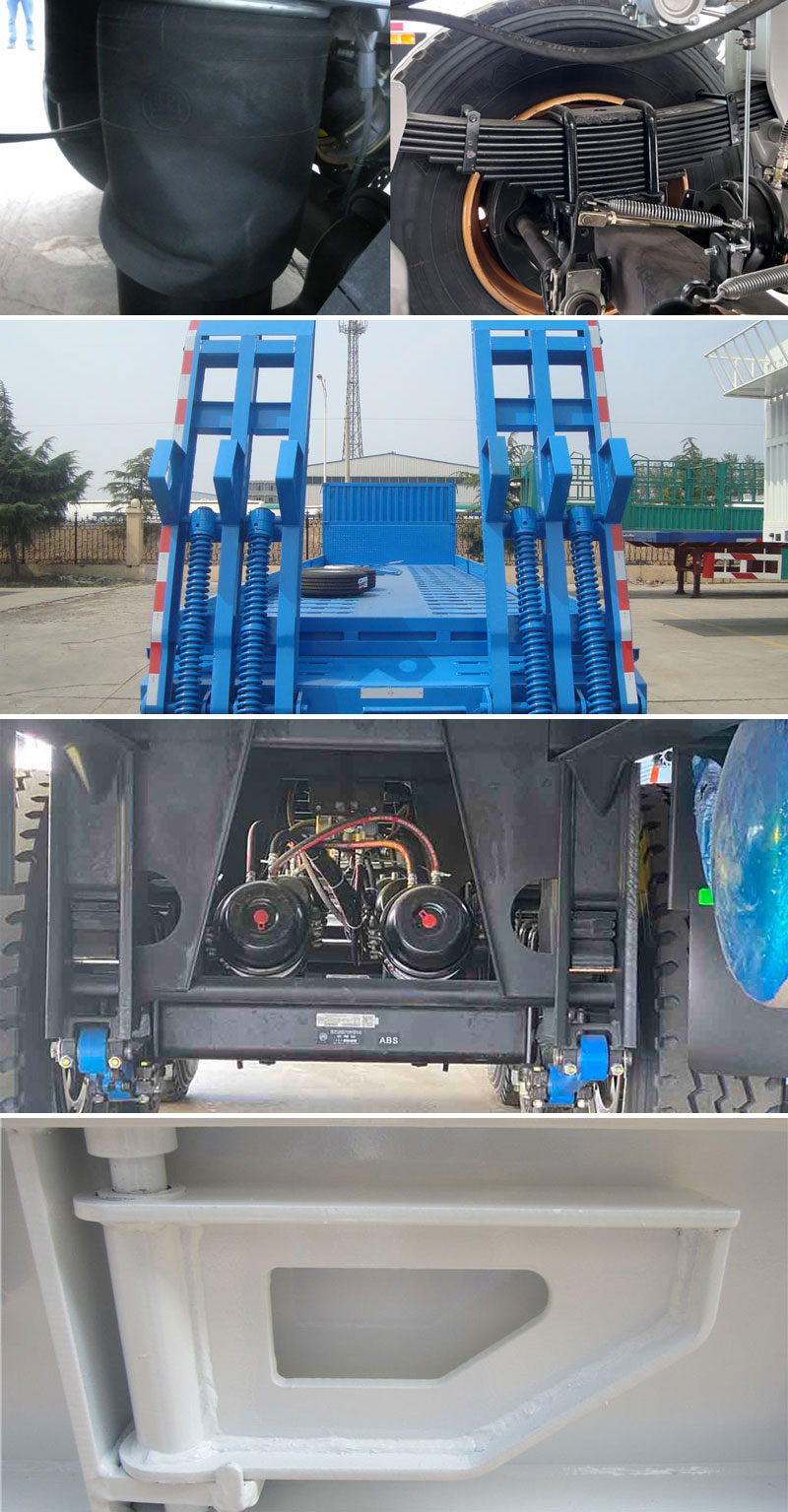

Ladder: Equipped with ramps specially designed for transporting self-propelled equipment, with a reasonable slope design, making it easy for excavators, loaders, and other self-propelled equipment to load and unload, simplifying the loading and unloading process.
Suspension: Offers mechanical, air, and hydraulic suspension options. Mechanical suspension is more economical and robust. Air suspension offers better stability. Hydraulic suspension can precisely adjust height, adapting to different road conditions.
Widening Components: Optional widening components are available, allowing flexible expansion of the trailer’s width based on cargo size requirements. The widening mechanism is easy to operate, locks securely, and easily handles the challenges of transporting oversized cargo, meeting special transportation needs.
Tire Specifications: Multiple tire specifications are available, including exposed tire options. High-quality radial tires offer strong grip and high load capacity. The exposed tire design can lower the deck height, accommodate extra tall cargo transportation, and enhance heat dissipation performance.
Shipping Details
We provide road, rail, sea, or multimodal transportation options based on the customer’s location and offer the best transportation routes to ensure the equipment is delivered quickly and intact.
For core components such as the suspension system and gooseneck device, we use shockproof materials for tight wrapping, supplemented with wooden frames for secure fixing to ensure transportation safety.
For packaging methods, we will communicate with customers to use either container shipping or stacked ro-ro vessel transportation.
Get Great Deals Now
As a manufacturer and dealer of semi trailers, by purchasing from us, you not only enjoy the price advantage of factory direct supply but also receive professional customization services and worry-free after-sales support. If you are interested in this 4 axle lowbed semi trailer, please feel free to contact us to get detailed quotations and customized solutions! You can contact us via message or WhatsApp (+86-18866100060).
