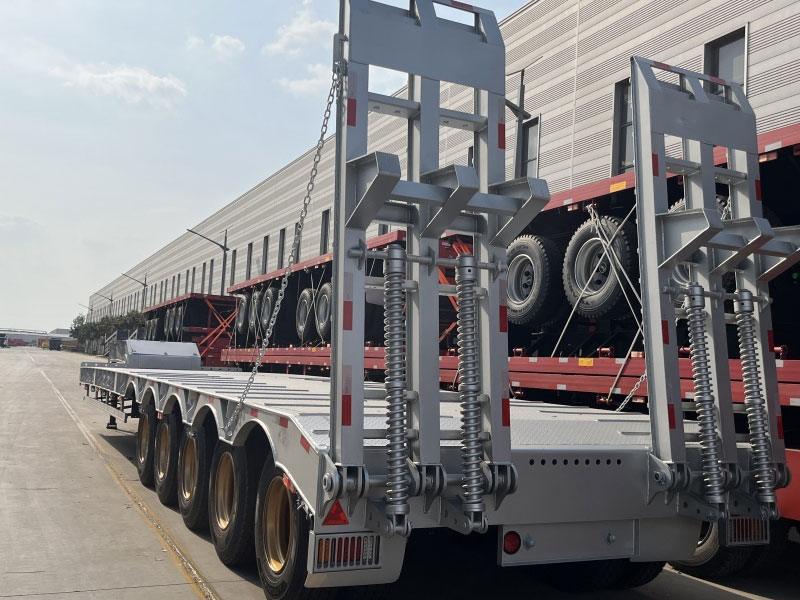

5 Axle 120 Ton Lowbed Semi Trailer for Sale
This 5 Axle 120 Ton Lowbed Semi Trailer for sale is manufactured by Vehicle Master. As a professional semi-trailer factory, we offer factory-direct pricing and exclusive customization services based on customers’ transport needs. We tailor transportation solutions according to different national regulations, cargo types, and operating environments.
This Lowbed Semi Trailer features excellent load capacity, supporting custom configurations from 30 to 150 tons. Depending on the load, it can be equipped with 2/3/4/5 axles or more. Both fixed and detachable gooseneck options are available, along with optional ramps and suspension systems. This ensures high adaptability and safety in various transportation scenarios.
Application Scenarios
Construction Machinery Transport: Suitable for transporting large bulldozers, rollers, and other construction equipment.
Equipment Transfer: Safe delivery of large reactors, storage tanks, shield tunneling machines, and other heavy components.
Metallurgical Equipment Relocation: Transportation of large steelmaking furnaces, rolling mills, and other heavy industrial equipment.
Heavy Equipment Deployment: Transfer of large port cranes, container lifters, and similar equipment.
Main Specifications
Rated Load: 120 tons (Custom options from 30 to 150 tons available)
Axle Configuration: 5 Axles *13/16 Ton, FUWA/BPW (2/3/4 axles or multi-axle available based on load)
Goose Neck Detachable: Available
Multi-Axles: Available
Steering Axles: Available
Widened Parts: Available
Tire Style: Covered or Uncovered
Main Beam Material: Q345/T700
Platform Thickness: 4mm
Tire: 12R22.5 / 8.25R20 (20 Pieces) (4 tires per axle depending on axle quantity)
King Pin: #50(2") / #90(3.5"), JOST/Other Brand
Landing Gear: 28 Tons Two Speed, JOST/Other Brand
Ladder: Mechanical Spring / Hydraulic
Suspension System: Mechanical Leaf Spring / Air Suspension / Hydraulic Suspension
Price Range
As a semi-trailer factory, our lowbed semi trailer prices range from USD 11,000 to USD 50,000. Prices vary based on payload capacity, suspension type (mechanical/air/hydraulic), steering axles, detachable gooseneck options, and steel grade customization. Higher configurations and load capacities result in higher prices.
If you want to customize a lowbed semi trailer or request our product catalog, please contact us via website message or WhatsApp (+86-18866100060).
Core Manufacturing Process

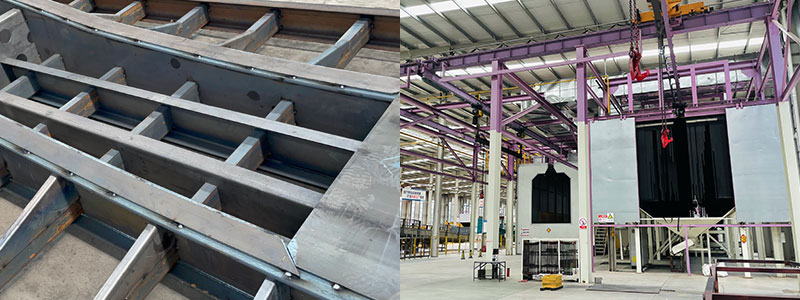

Welding Process: We adopt automatic submerged arc welding for weld joints. This automated process welds under a flux layer, ensuring even depth and dense internal structure. It significantly enhances the structural strength and fatigue resistance of the main beam and frame, enabling long-term heavy load resistance and ensuring safe, stable transport.
Painting Process: We use high-end electrophoresis painting. Before spraying, the trailer undergoes electrophoretic treatment, allowing the coating to adhere under an electric field to the metal surface. This creates a strong protective layer with superior adhesion, scratch resistance, and corrosion resistance, keeping the trailer looking new and reducing maintenance costs.

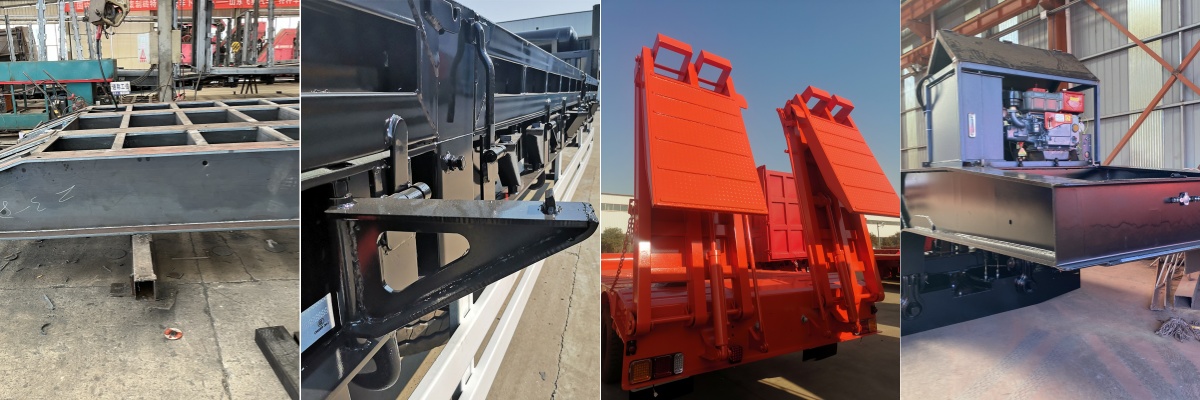

Main Features
High-Quality Steel: Made from superior steel compared to ordinary trailers. After heat treatment, it combines high strength and good toughness, capable of withstanding extremely heavy loads while maintaining structural integrity during transport.

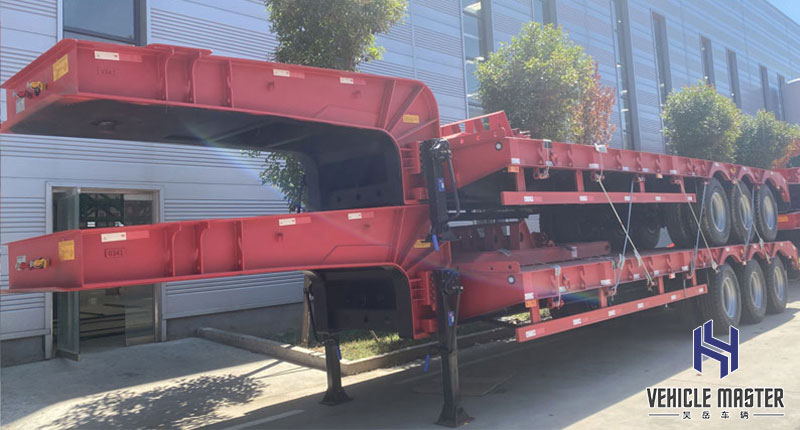

Detachable Gooseneck: Available detachable gooseneck option. Once removed, the lowered height facilitates front-end loading, making it easier for long, oversized equipment to self-load/unload, simplifying the process.

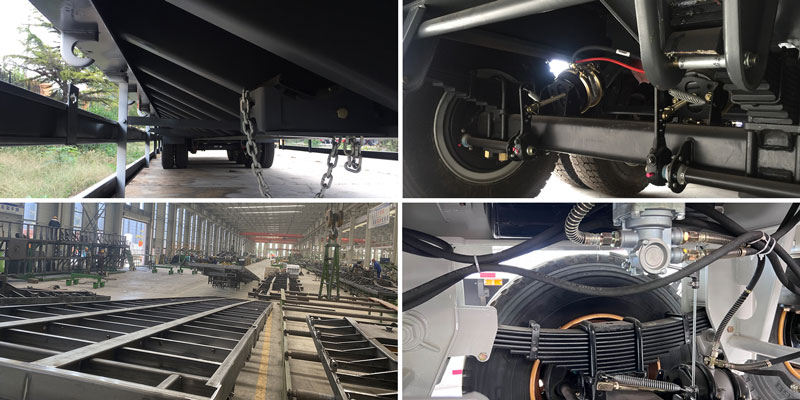

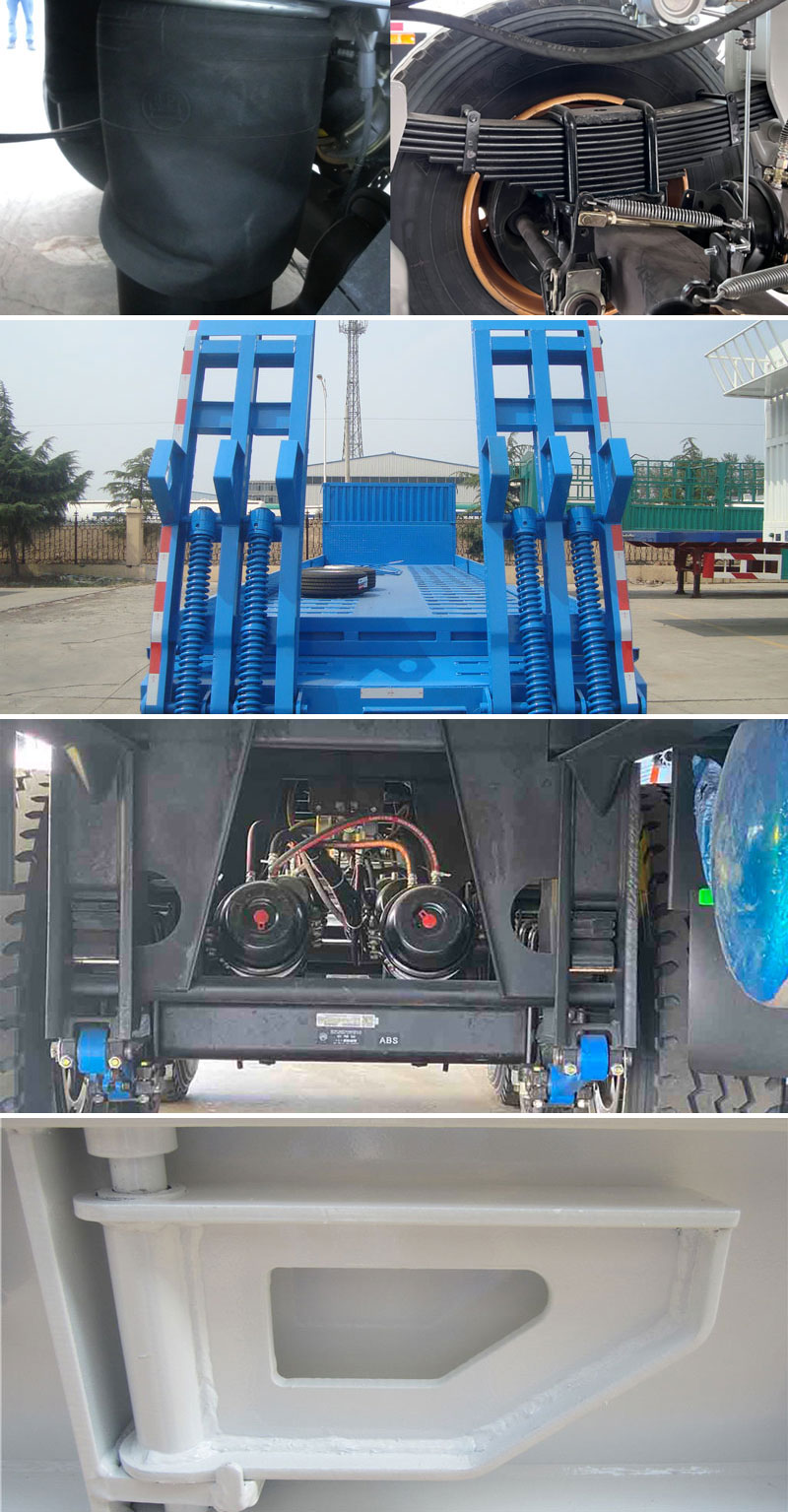

Suspension System: Mechanical, air, or hydraulic suspension options available. Mechanical suspension is strong and suitable for rough roads; air suspension offers better shock absorption for protecting precision equipment; hydraulic suspension is height-adjustable to adapt to various loading/unloading conditions.
Steering Axle Design: Equipped with multiple steering axles to greatly reduce turning radius. This improves maneuverability in narrow spaces like construction sites and factories.
Widening Components: The platform has a widening design that can be flexibly adjusted according to cargo width, accommodating oversized equipment with easy operation.
Tire Configuration: Offers both exposed and covered tire layouts. Exposed tires reduce platform height for tall equipment; covered tires offer better protection, ideal for complex terrains.
Rear Ramp: Equipped with non-slip ramps at the rear, smoothly connected with the platform to facilitate loading/unloading of self-propelled equipment such as loaders and forklifts, improving efficiency.
Shipping
We coordinate with customers to choose the appropriate transportation method based on the destination. We support road, rail, sea, and multimodal transport to ensure safe and timely delivery worldwide.
Depending on vehicle size, we use container or ro-ro ship transport. Key parts such as suspension and steering axles are wrapped in high-strength shockproof materials. Moisture-proof film, wooden frames, and foam materials are used for tight packaging to prevent damage during transport.
Contact Us
By purchasing the 5 Axle 120 Ton Lowbed Semi Trailer through us, you enjoy factory-direct pricing, eliminating intermediaries and maximizing cost efficiency. To learn more product details or receive a customized quote, feel free to contact us anytime. Our team will provide professional service and solutions. You can contact us via website message or WhatsApp (+86-18866100060).
